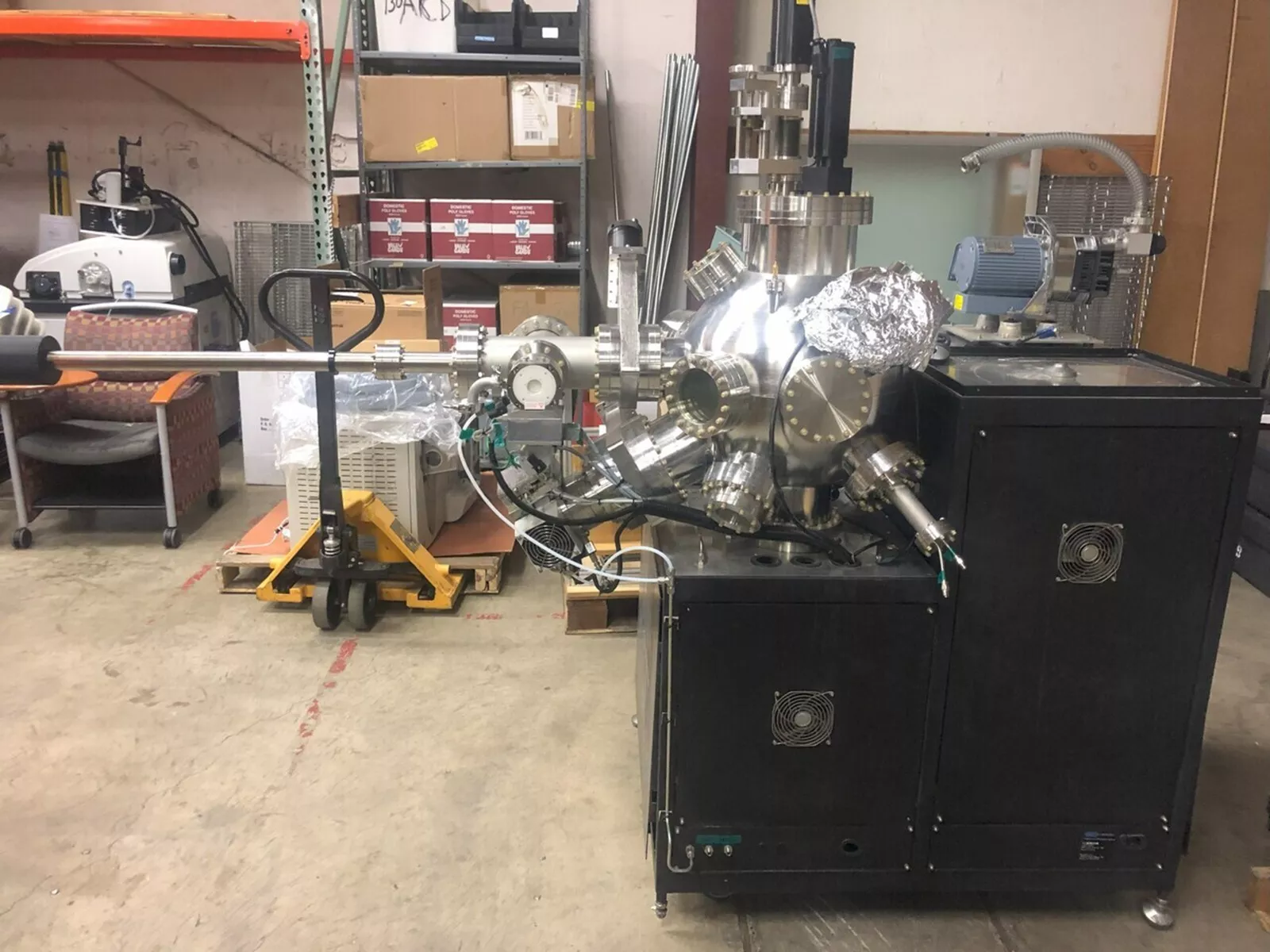

What is Pulsed Laser and Pulsed Electron Deposition System?
Pulsed Laser Deposition (PLD) and Pulsed Electron Deposition (PED) are advanced thin-film deposition techniques used in material science and nanotechnology to create highly controlled thin films. They differ in their energy source and mechanisms but share some similar concepts. Here’s an overview of each:
Pulsed Laser Deposition (PLD)
PLD is a physical vapor deposition (PVD) technique where a high-power laser pulse (usually a UV laser) is focused onto a target material, typically in a vacuum chamber. The laser energy is absorbed by the target, creating a plasma plume containing the vaporized material. This vapor then travels to a nearby substrate and condenses, forming a thin film layer.
Key Steps in PLD:
- Laser Pulse Interaction: A laser pulse strikes the target material, causing rapid heating and ablation of the surface layer.
- Plasma Formation: The ablated material forms a plasma plume, containing ions, electrons, and neutral atoms.
- Film Deposition: The plume reaches the substrate, where the vaporized particles cool and condense, forming a film.
Applications:
- Thin-film coatings for electronic, optical, and superconducting materials
- Deposition of complex oxide materials
- Semiconductor manufacturing
Advantages:
- Allows for complex material stoichiometry, enabling high-quality, multi-element films.
- Can produce films with high purity and uniformity.
Disadvantages:
- Limited scalability for large-area deposition.
- Target surface erosion, requiring frequent replacement for long runs.
Pulsed Electron Deposition (PED)
PED is similar to PLD but uses a pulsed electron beam instead of a laser to ablate the target material. In this process, a high-energy electron pulse interacts with the target, causing the ejection of material that forms a plasma plume, which then travels to the substrate to form a thin film.
Key Steps in PED:
- Electron Pulse Interaction: A high-energy electron pulse impacts the target, releasing material via ablation.
- Plasma Formation: Similar to PLD, this ablated material forms a plasma plume.
- Film Deposition: The plume deposits material on the substrate to form a thin film.
Applications:
- Deposition of films where laser-based systems might be less effective, particularly for certain refractory or brittle materials.
- Thin-film coatings in microelectronics and nanotechnology.
Advantages:
- Can achieve high deposition rates.
- Electron beams can be more controllable and precise in targeting compared to lasers.
Disadvantages:
- Generates secondary electron emissions and X-rays that need to be managed.
- More complex to control compared to PLD, particularly in terms of beam uniformity.
Comparing PLD and PED
| Feature | PLD | PED |
|---|---|---|
| Energy Source | Pulsed laser (UV, typically) | Pulsed electron beam |
| Target Heating | Laser heating | Electron bombardment |
| Plasma Composition | High in ions and electrons | Similar, but may vary depending on electron pulse |
| Material Suitability | Suits complex oxide and multi-element materials | Effective for refractory or brittle materials |
| Deposition Rate | Moderate | High |
| Film Purity | High, with good stoichiometric control | High |
| Applications | Electronics, optics, semiconductors | Microelectronics, materials science |
Both PLD and PED offer unique advantages for thin-film deposition, and the choice of technique depends on factors like the material’s nature, desired film properties, and application requirements.
