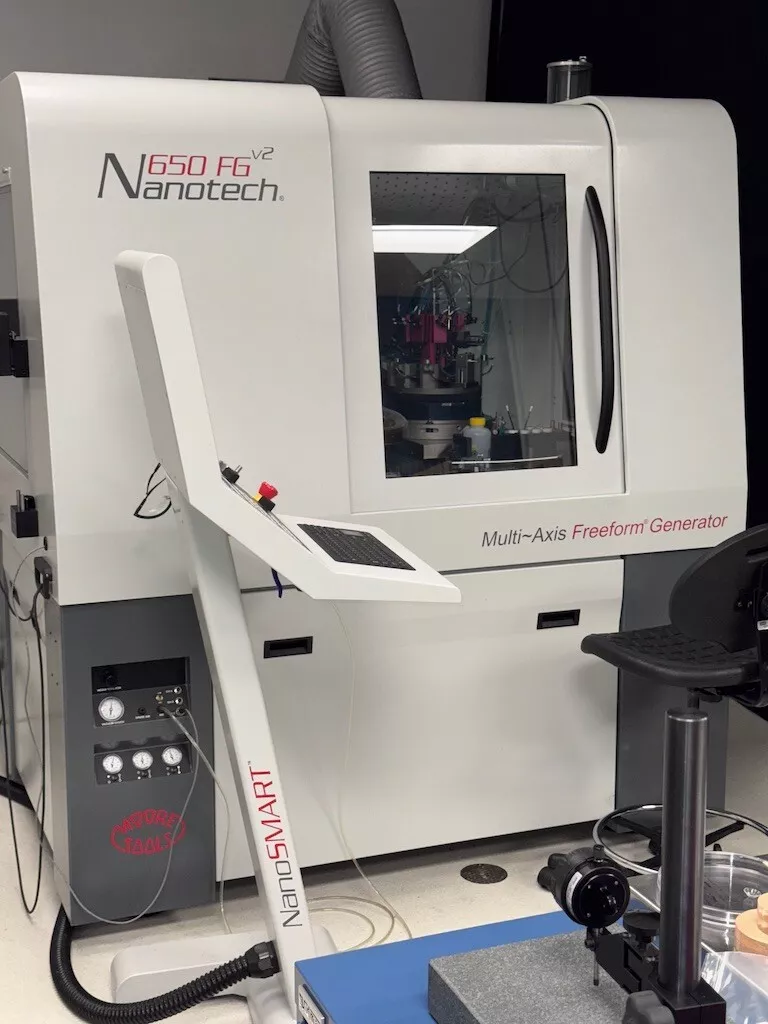

What is Ultra Precision Diamond Turning Lathe Spherical, Aspherical, Cylindrical, Prisms & Wedges, Freeform machine?
An Ultra-Precision Diamond Turning Lathe is a high-performance machine tool engineered for fabricating extremely precise optical and non-optical components with nanometer-level surface finishes and sub-micron geometric tolerances. These machines are commonly used for producing components with complex geometries such as spherical, aspherical, cylindrical, prisms, wedges, and freeform surfaces. Here’s a detailed technical breakdown of its components and capabilities:
Key Features and Components:
- Diamond-Tipped Cutting Tool:
- Utilizes natural or synthetic diamond tools for machining. Diamond’s extreme hardness and sharpness allow for ultra-precise material removal and smooth surfaces.
- Cutting radii of these tools can be as small as tens of nanometers.
- Ultra-Precision Spindle:
- High-speed, air-bearing or hydrostatic spindles with negligible runout to ensure stability during machining.
- Spindle accuracy often measures in the nanometer range.
- Motion Control Systems:
- High-resolution linear and rotary encoders for precise axis positioning.
- Ultra-precision slides and actuators (often air or hydrostatic bearings) provide smooth and repeatable motion.
- Advanced servo control systems with feedback loops ensure positional accuracy and stability.
- Machine Base and Thermal Stability:
- Granite or composite bases minimize thermal expansion and vibration, ensuring long-term dimensional stability.
- Temperature-controlled environments or integrated cooling systems reduce thermal drift during operation.
- Workpiece Fixturing:
- Precision fixturing to securely hold components without deformation.
- Often employs vacuum chucks or specialized clamps for complex geometries.
- Software and CAM Integration:
- Advanced CAM software is used to generate toolpaths for complex shapes, including freeform geometries.
- Real-time monitoring and adaptive control adjust parameters during machining to maintain precision.
Applications:
- Spherical and Aspherical Optics:
- Common in lenses for cameras, telescopes, and optical instruments.
- Aspherical lenses are particularly advantageous for reducing aberrations.
- Cylindrical Optics:
- Used in applications like cylindrical lenses for laser systems or scanners.
- Prisms and Wedges:
- High-accuracy machining ensures precise angular tolerances and minimal optical distortion.
- Freeform Optics:
- Non-symmetrical optics used in advanced imaging systems and augmented reality devices.
- Non-Optical Components:
- Precision molds for injection molding, dies for metal forming, and aerospace components.
Advantages:
- Extreme Surface Finish:
- Achievable surface roughness can be less than 1 nm Ra, making these machines ideal for optical components requiring high clarity and minimal scattering.
- Geometric Precision:
- Sub-micron form accuracies allow the production of components that meet stringent tolerances.
- Material Versatility:
- Can machine metals (aluminum, copper), crystals, and polymers commonly used in optics and electronics.
- Complex Geometry Capability:
- Able to produce shapes that are not feasible with traditional machining methods, such as freeform surfaces and intricate patterns.
Technical Challenges:
- Environmental Control:
- Requires vibration isolation and temperature regulation for optimal performance.
- Tool Wear:
- Diamond tools wear over time, especially when cutting harder materials, affecting surface finish and accuracy.
- High Costs:
- Both initial investment and operational costs are significant due to precision components and advanced technology.
Summary:
An Ultra-Precision Diamond Turning Lathe is a cornerstone of modern precision manufacturing, enabling the creation of high-performance components for industries like optics, aerospace, and electronics. Its combination of precision mechanics, cutting-edge control systems, and advanced tooling allows it to meet the most demanding tolerances and surface finish requirements in manufacturing.
