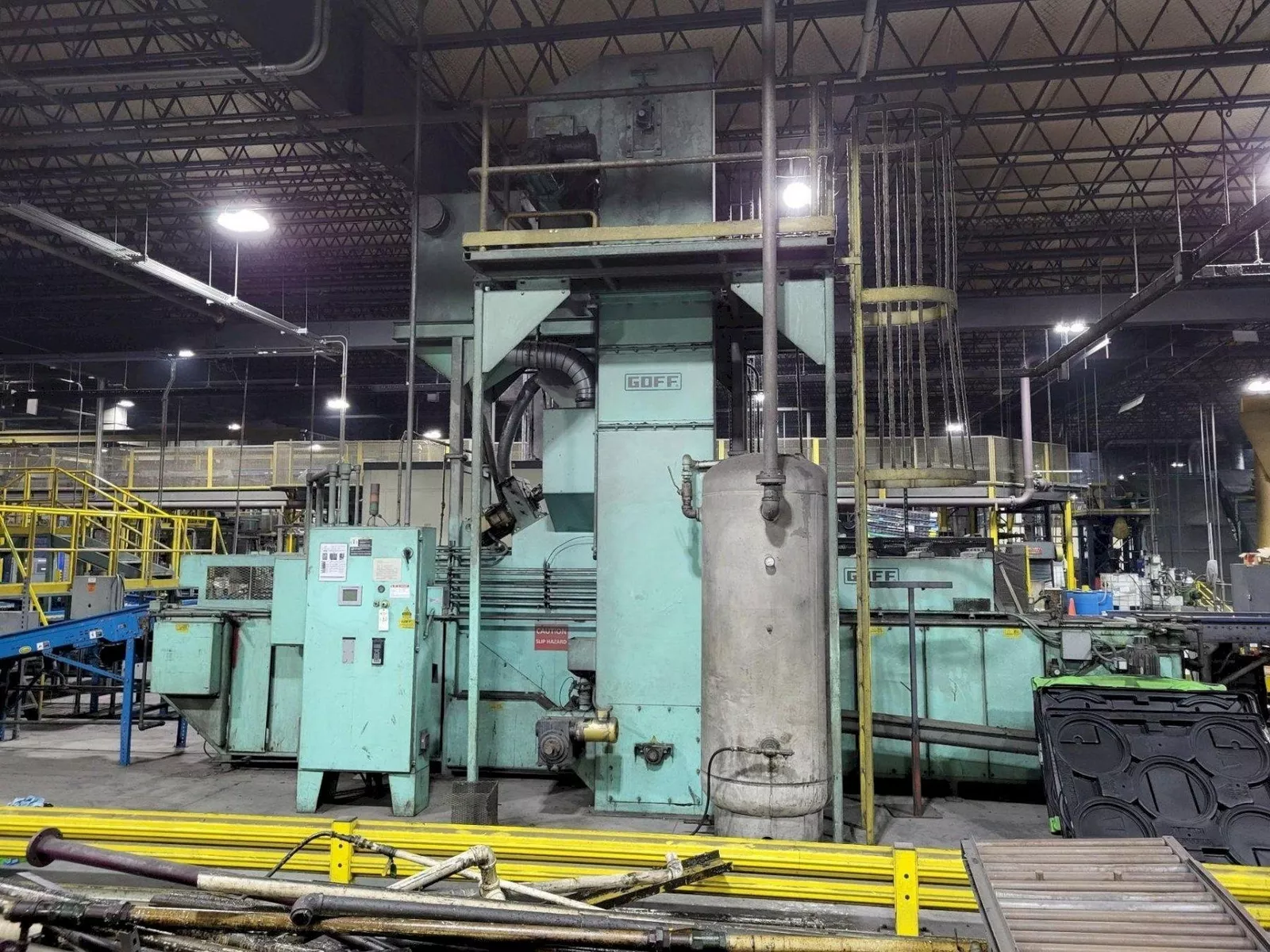

A Wire Mesh Continuous Shot Blast Machine is a high-efficiency surface treatment system designed to clean, strengthen, or prepare workpieces by bombarding them with abrasive media (shots or grits) in a continuous process. The system uses a wire mesh conveyor to transport parts through the blasting chamber, allowing for consistent exposure to the abrasive stream from multiple angles.

Here’s a detailed technical explanation:

1. Purpose

• To remove rust, scale, paint, or other surface contaminants.
• To prepare surfaces for subsequent processes such as painting, coating, or bonding.
• To strengthen or peen surfaces, improving fatigue resistance.

2. Core Components

1. Wire Mesh Conveyor:
   • A durable, heat-resistant wire mesh belt that transports workpieces through the machine.
   • Designed for uniform exposure to the abrasive stream.
   • Mesh openings allow for abrasive media to pass through and be recycled.
2. Blasting Chamber:
   • The enclosed area where abrasive blasting occurs.
   • Equipped with multiple blast wheels or nozzles to provide comprehensive coverage.
3. Blast Wheels:
   • High-speed turbines that propel abrasive media onto the surface of the workpieces.
   • Powered by electric motors, typically ranging from 5 kW to 30 kW, depending on the machine size and capacity.
4. Abrasive Media System:
   • Includes a hopper, recirculation system, and separators to manage and recycle the abrasive media.
   • Separators remove contaminants (e.g., rust, scale) from the abrasive for reuse.
5. Dust Collection System:
   • Extracts dust and fine particles from the blasting process, maintaining a clean and safe working environment.
   • May include bag filters, cyclones, or cartridge filters.
6. Control System:
   • Typically features PLC (Programmable Logic Controller) or digital controls for adjusting parameters such as conveyor speed, blast wheel speed, and media flow rate.
7. Infeed and Outfeed Sections:
   • Allow for continuous loading and unloading of workpieces onto the conveyor.

3. Working Principle

1. Loading:
   • Workpieces are placed on the wire mesh conveyor at the infeed section.
   • The conveyor continuously moves the parts through the blasting chamber.
2. Blasting:
   • Inside the chamber, abrasive media is propelled at high velocity by the blast wheels or nozzles.
   • The wire mesh allows media to reach the underside of the workpieces, ensuring uniform surface treatment.
3. Cleaning and Recycling:
   • After impact, the abrasive media falls into a collection hopper and is transported back to the separator for cleaning.
   • Contaminants are removed, and clean media is recycled into the system.
4. Dust Extraction:
   • The dust collection system captures fine particles and prevents them from escaping into the environment.
5. Unloading:
   • Cleaned and treated workpieces exit at the outfeed section for inspection or further processing.

4. Technical Features

1. Conveyor System:
   • Adjustable speed to control exposure time and processing rate.
   • Designed to handle various shapes and sizes of parts.
2. Blast Wheel Efficiency:
   • High-speed turbines provide powerful and even distribution of abrasive media.
   • Configurations can include multiple wheels for complex workpiece geometries.
3. Abrasive Media:
   • Common media include steel shots, grits, or aluminum oxide, selected based on the application.
   • Media size and type determine surface finish and cleaning aggressiveness.
4. Control Precision:
   • PLC systems allow precise adjustments to blasting intensity and conveyor speed.
5. Dust Management:
   • Ensures compliance with environmental regulations and protects the abrasive media’s quality.

5. Applications

1. Metal Surface Cleaning:
   • Removes rust, scale, and old coatings from steel plates, profiles, and components.
2. Surface Preparation:
   • Prepares surfaces for painting, powder coating, or galvanizing.
3. Shot Peening:
   • Strengthens metal surfaces by inducing compressive stresses, improving fatigue resistance.
4. Automotive and Aerospace:
   • Cleans and strengthens critical components like engine parts and structural elements.
5. Construction Industry:
   • Treats rebars, beams, and profiles for enhanced durability.

6. Advantages

1. Continuous Operation:
   • High throughput for large-scale production lines.
2. Uniform Treatment:
   • Consistent exposure ensures even cleaning or surface preparation.
3. Energy Efficiency:
   • Recycles abrasive media, reducing material waste and costs.
4. Versatility:
   • Accommodates various workpiece shapes, sizes, and materials.
5. Environmental Compliance:
   • Dust collection systems ensure a safe and clean working environment.

7. Typical Specifications

Conclusion

The Wire Mesh Continuous Shot Blast Machine is an essential tool for high-volume surface treatment applications, offering uniform cleaning, preparation, and strengthening of workpieces. Its efficient design and advanced features make it indispensable in industries like automotive, aerospace, construction, and manufacturing.
