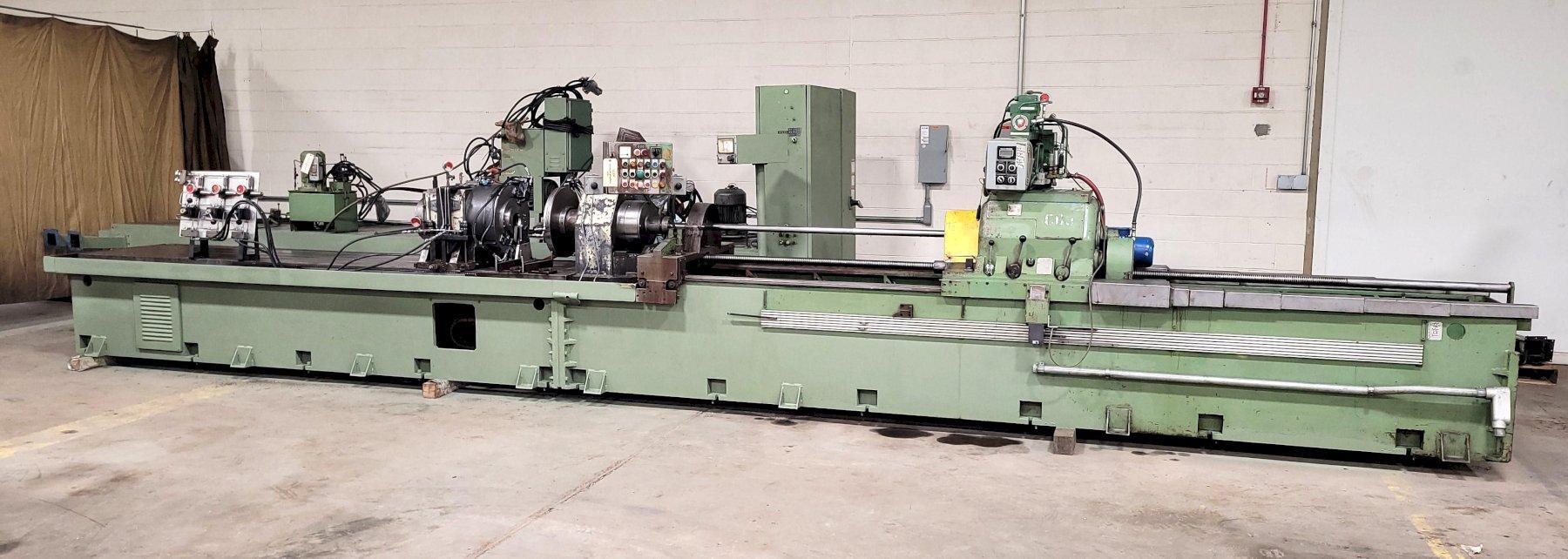

A Tube Skiving and Finishing Machine is a specialized piece of equipment designed for the preparation of hydraulic and industrial tubes by skiving (removing the inner or outer surface layer of the tube) and performing finishing processes such as deburring, chamfering, or polishing. These machines are widely used in the manufacturing of hydraulic systems, where precision tube preparation is essential to ensure leak-free and secure fittings.

Technical Breakdown

Key Processes

1. Skiving
   • The process of precisely removing material from the inner or outer surface of a tube to create a smooth, uniform finish.
   • Commonly applied to prepare the tube for fittings or connectors to ensure a tight seal.
   • Inner Skiving: Removes material from the inside surface.
   • Outer Skiving: Removes material from the outer surface.
2. Finishing
   • Includes deburring (removing sharp edges), chamfering (creating angled edges), and polishing for smoothness and consistency.
   • Ensures proper alignment and connection of tube ends to fittings, minimizing stress and potential leak points.

Key Components

1. Skiving Tools
   • Precision cutting blades designed to remove specific material thickness while maintaining dimensional accuracy.
2. Finishing Tools
   • Abrasive tools or rotating brushes for deburring and polishing.
   • Chamfering tools to create beveled edges.
3. Clamping and Feeding System
   • Holds the tube securely in place and advances it through the machine.
   • May include automatic feeders for continuous operation in high-volume production.
4. Drive Mechanism
   • Motorized system that rotates the skiving and finishing tools at precise speeds, ensuring consistent material removal.
5. Control System
   • Modern machines often feature programmable logic controllers (PLCs) or CNC controls for precise adjustments of cutting depth, speed, and feed rate.
6. Coolant/Lubrication System
   • Reduces heat and friction during skiving and finishing, extending tool life and improving surface quality.

Technical Features

1. Tube Compatibility
   • Handles tubes of various diameters and wall thicknesses, commonly ranging from 6 mm to 50 mm or more.
2. Material Compatibility
   • Processes materials such as carbon steel, stainless steel, aluminum, copper, and other alloys used in hydraulic systems.
3. Cutting Precision
   • Accurate material removal to tolerances often within ±0.01 mm.
4. Adjustable Parameters
   • Cutting depth, speed, and angle can be adjusted for different applications.
5. Automation Options
   • Semi-automatic and fully automatic models available, with features like auto-feeding, tube length measurement, and cycle programming.

Applications

1. Hydraulic Tube Preparation
   • Skiving ensures a clean, smooth surface for fittings and couplings in hydraulic and pneumatic systems.
2. Tube End Finishing
   • Prepares tubes for welding, brazing, or threaded connections by removing imperfections and creating uniform edges.
3. Industrial Pipe Manufacturing
   • Used in industries like automotive, aerospace, construction, and heavy machinery for producing tubes with precise dimensions and finishes.
4. Repair and Maintenance
   • Skiving and finishing are used to recondition tubes for reuse, extending their service life.

Advantages

1. Precision
   • Ensures tight dimensional control, critical for high-pressure hydraulic systems.
2. Improved Sealing
   • Creates smooth, defect-free surfaces for better sealing with connectors and fittings.
3. Versatility
   • Processes a wide range of tube materials and sizes.
4. Efficiency
   • Reduces manual labor, speeds up production, and ensures consistent quality.
5. Enhanced Durability
   • Minimizes stress concentrations and weak points by removing imperfections and sharp edges.
