Description
PRIESS & HORSTMANN-BAT STW CNC – Year 2022
Machine Description
PRIESS and HORSTMANN Bohr-und Einspresmachinery
For the commission-controlled drilling and pressing of hinges as well as for drilling
From handle and locking holes and recesses for special fittings and holes to the T ü rms on and off.

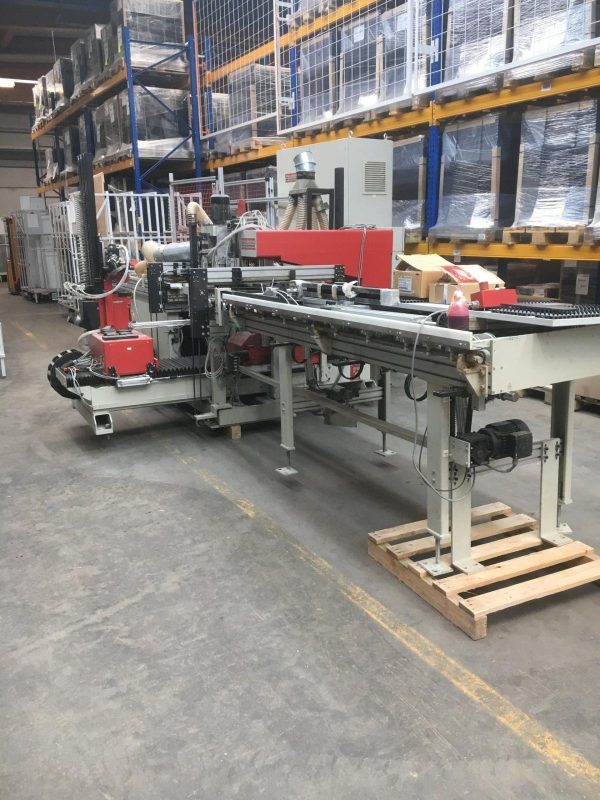

The basic machine consists of a solid, torsionally stiff frame with pr-and-holes.
Recording the devices.
Switchgear cabinet for machine control (electropneumatic control) can be installed
Against the loading position (see installation plan) screen with controls
In a swivel bracket above the insertion position, the swivel arm is located at the top of the control cabinet.
Electrical connection: 400 V + / -10%, 50 Hz (3 phases with carrying neutral conductor), approx.
12 kW. According to ß VDE0100-T482, the system must be backed up by an Fl switch.
Maintenance unit: R 1 / 2 ” with pressure monitoring and air flow, operating pressure 6-7 bar.
Suction: min. 32 m / s air velocity to the respective D ü se of the units (vacuum 2200 Pa.).
Acc. lde:
Machine and control cabinet tickle grey (RAL 7032)
Tats and protective grid of fire red (RAL 3000)
Suction hoods and engines matt black (RAL 9005)
Electrical, pneumatic and other shopping elements according to the ß P + H standard.
Workmanship dimensions:
• nge: 300 mm -2500 mm
• Width: 200 mm- 800 mm
• Thickness: 16 mm -30 mm
• The width of the workpiece must not be greater than the work&#.
• Workö He: 970 mm
Servo position system:
Set point and actual value output and display for the axes by the CNC control.
Positioning of ball-bearing spindles with play-free mother and highly dynamic,
Digital three-phase servomotors with clocked 4-quadrant controllers.
Travel speed 70 m / min. (X / Y axes).
Drilling cycle approx. 2 sec.
Einpress approx. 3 sec.
CNC control,
Confortable CNC screen control (Ferrocontrol) with 1 0.4 ” TFT colour monitor
And a dustproof keyboard in a lectern.
Practice-oriented and proven operating software with screen recorder
For all input and control functions with function keys, the meaning in plain text on the screen.
The works are called up for production by a multi-part drilling code.
By programming variants, additional parameters, part dimensions, stop and number of articles are extended.
The drills are stored on an external PC (host computer), which is connected to the machine online. New drilling patterns are entered on the master computer
Servo position system:
Set point and actual value output and display for the axes by the CNC control.
Positioning of ball-bearing spindles with play-free mother and highly dynamic,
Digital three-phase servomotors with clocked 4-quadrant controllers.
Travel speed 70 m / min. (X / Y axes).
Drilling cycle approx. 2 sec.
Einpress approx. 3 sec.
CNC screen control,
Convenient CNC screen control
(Ferrocontrol) with 1 0.4 ” TFT colour monitor
And a dustproof keyboard in a lectern.
Practice-oriented and proven operating software with screen recorder
For all input and control functions with function keys, the meaning in plain text on the screen.
The works are called up via a multi-part drilling code for production, by expanding programming variants, additional parameters, part dimensions, stops and number of parts.
The drills are stored on an external PC (host computer), which is connected to the machine online. New drilling patterns are entered in the F ü r
Integrated, freely programmable control (FPS) for optimum working hours and maximum
Operational security. Fault diagnosis of LEDs and clear text ads on the screen, special service routines for easy troubleshooting.
Operation of the machine:

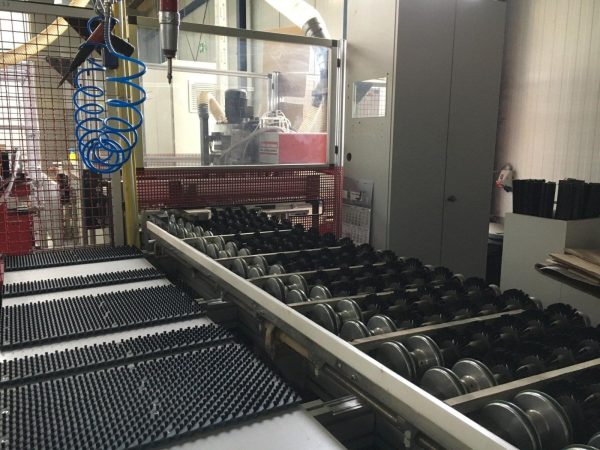

The workpiece to be machined is manually fed to the inlet roller conveyor in front of the tube roller.
Drilling machine and against the L ü ngsstopper. After the start button has been placed, the workpiece is transported into the machine and then moved in the direction of the longitudinal direction under a measuring light barrier in the transverse direction, while maintaining L &tonl; nge and L ü nge.
Wide tolerance. When L &width and width are equal. Will the work station be clocked by the machining station on the stop X1? The processing takes place from above and from I or from below (see machine equipment). The finished bored
The work piece is pushed onto the outlet table, raised (partially used) and can then be manually machined on the work table.
Machine equipment:
1.) 1 serial interface (RS 232) for connecting a PC as a programming station
And data backup. Max. Cable without converter 20m.
2.) 1 serial interface (RS 232) for connection of a modem for remote maintenance.
The modem is supplied with the delivery;
TAE socket (w ä hlbar). The modem
Can be accepted after expiration of the warranty period.
3.) 1 programming software on IBM or compatible PCs, operating system
Windows 95 or WIN_NT
(technical data subject to reservation, as information from the manufacturer)
Condition : New and unused
Machine under power : no
