Description

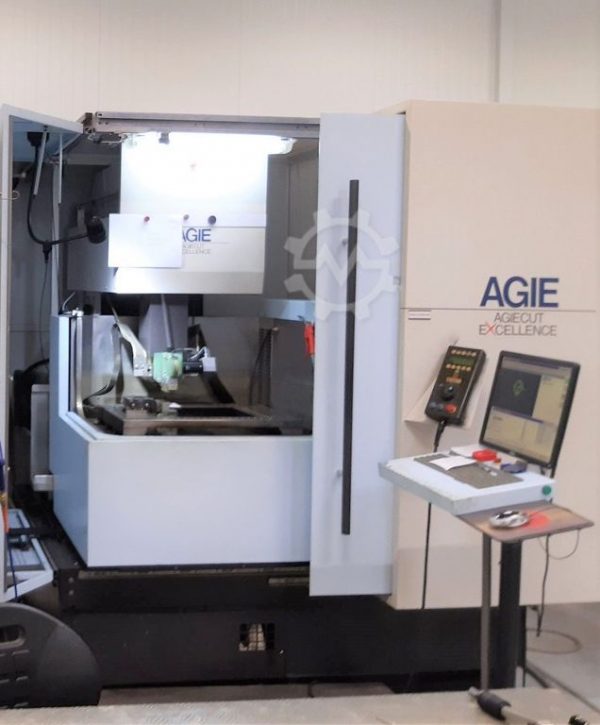

Agie AgieCut Excellence 2F – Year 2000
Fine wire eroding machine –
– for contours (2µm) and surfaces (0.1µm) in highest precision.
Control:
OS/2 multitasking operating system Pentium multiprocessor for CNC surface, with Ethernet data interface and hard disk
10.4″ TFT screen, manual control box and electronic handwheel
Agie-Setup 3D – automatic compensation of workpiece misalignment
Technical data:
Travel range X 350 mm, Y 250 mm, Z 256 mm
U-axis +/- 70 mm
V-axis +/- 70 mm
Taper angle/height 30° / 100 mm
Wire diameter 0.03 to 0.25 mm
IPG generator Agie HSS, medium working current 45 A
workpiece:
Dimensions max. 750 x 550
Height max. 250 mm (flooded)
Weight with/without bath max. 200/400 kg
Dielectric (integrated):
Capacity 700 l
Heat exchanger with deviation of max. +/- 1°.
Filter system with 8 cartridges in 4 filter housings
Equipment:
Full bath machine
Lowerable container
Position accuracy with 0.005 mm
Dual measuring system with glass scales
Universal clamping frame
Automatic wire threading (max. height 250 mm) with rescue strategies in case of wire breakage and power failure
Wire Alignment Device
Automatic flushing and capacity adjustment
Full protection cabin
Machine data:
Machine dimensions W 2,215 x D 2,215 x H 2,220 mm
Total weight 4,500 kg, incl. dielectric
The machine is in a very good, well-kept condition. It is possible to inspect it during operation.
