Description

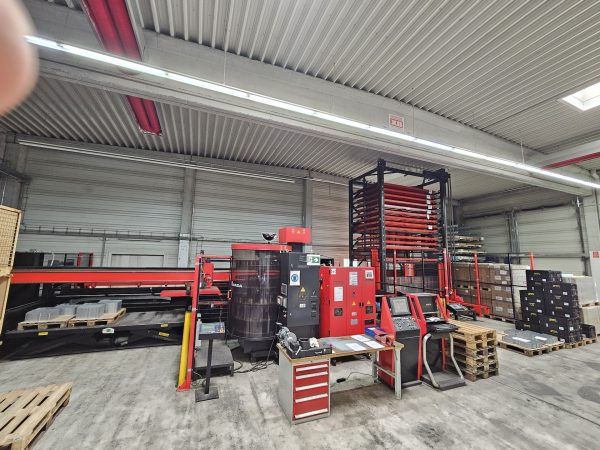

Amada EMZ 3610 NT + Tapping + PDC II + ASL 300 + PR UL III – Year 2007
Power in tons 30 T
Metal length 3000 mm
CNC type AMNC
Metal width 1500 mm
Max steel thickness 6 mm
Length with repositioning 6000 mm
Metal width with repositioning 1500 mm
Max Punching diameter 110 mm
Number of tools 45
Weight 23000 kg
Worked hours
Hours under power 137500 hours

Year: 2007
Machine hours: about 137.500 h

Technical data:

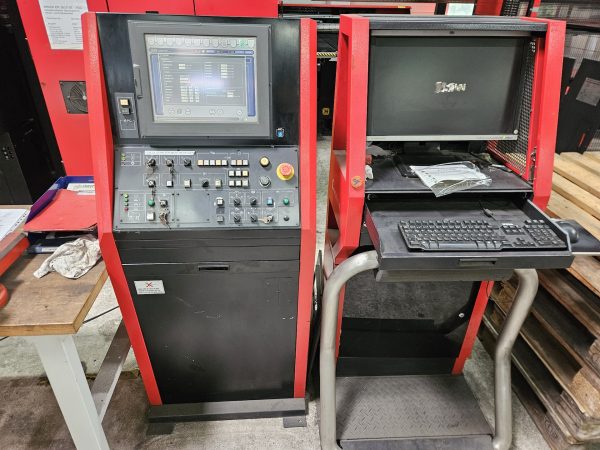

Control: AMNC-F
Punching force: 300kN
Working area X/Y: 2500 x 1525 mm
With repositioning: 5000 x 1525 mm
Max. sheet thickness: 4,5 mm (mild steel)
Max. table loading weight: 160 kg
Feed rate X/Y: 100 / 80 m/min (128 m/min simultaneous)
Positioning tolerance: +/- 0,1 mm
Number of stations in Z-turret: 45
AutoIndex stations: 4 (2 x B, 2 x C)
Feed rate turret: 30 1/min
Max. number of hits: 1000/min
Machine frame: Bridge frame
Punching drive: servo-electric Twin Drive
Drives turret + table: AC-Servo motors
Clamps: pneumatical
Electrical connection: 400V / 50Hz
Electrical consumption: 1kW – 7kW
Air consumption machine: 250 l/min
Air consumption Air Jet Vakuum: 250 l/min
Machine weight: 23 to

Tapping Unit:
8 stations
Station 1: T411 (M8, lead 1,25)
Station 2: T412 (M6, lead 1,0)
Station 3: T413 (M5, lead 0,8)
Station 4: T414 (M4, lead 0,7)
Station 5: T415 (M3, lead 0,5)
Station 6: T416 (M3, lead 0,5)
Station 7: T417 (M2,5, lead 0,45)
Station 8: T418 (M2,5, lead 0,45)

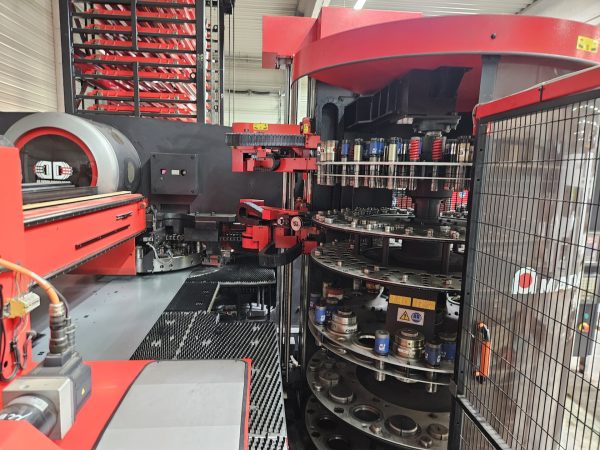

PDC II (tool changer):
220 stations, thereof:
– 120 x A station
– 80 x B station
– 12 x C station
– 8 x D/E station
Tool changing time: 12 – 40 seconds per tool
Static address system
Weight: 5.000 kg
At tool changing processpunches and dies can be changed parallel or only the dies can be changed.
Up to 3 dies can be related to each punch.

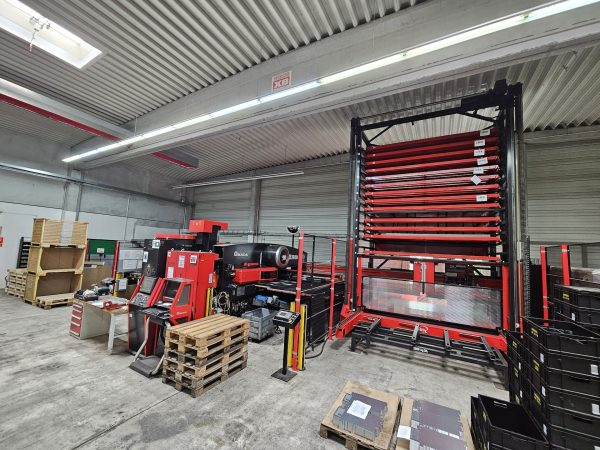

Loading storage tower ASL 300:
Sheet size min.: 1000 x 300 mm
Sheet size max.: 3000 x 1500 mm
Pallet changing time: 75 s
Max. pallet weight: 3000 kg
Number of pallets: 14 pieces
Material thickness: 0,5 – 8,0 mm
Max. feed rate loading traverse: 70 m/min
Number of suction cups: 34 pieces
Double sheet control: yes, with sheet thickness detector
Air consumption: 600 l/min, 6 bar inlet pressure
Electrical connection: 400V

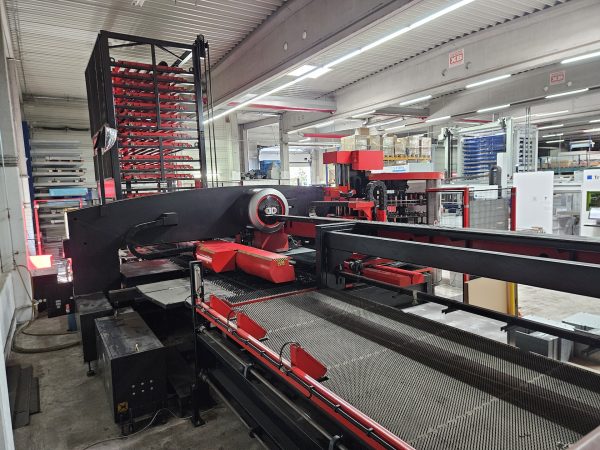

Unloading unit Parts Remover PR III UL 300:
Part size min. / max.: 150 x 150 mm / 2500 x 1000 mm
Sheet thickness: 0,5 – 3,0 mm (4mm for EM-Serie)
Max. part weight: 50kg
Storage table size: 3400 x 1400 mm
Min. part size for unloading clamps: 1600 x 300 mm
Max. part size for unloading clamps: 3000 x 1500 mm
Max. stack height skeleton table: 450mm
Max. weight skeleton table: 2000kg
Max. stack height storage table: 450mm
Max. weight storage table: 4000kg
Max. feed rate X- / Y-direction: 180 / 90 m/min
Air consumption: 1000 l/min, 6 bar inlet pressure
Electrical connection: 400V
