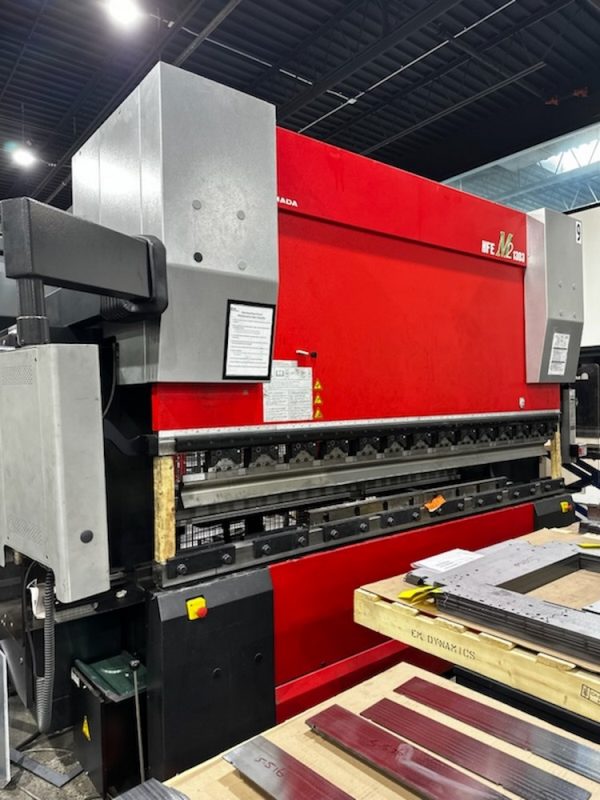

Amada HFE M2 1303 Hydraulic Press Brake 146 Ton – Year 2017

Contact us for price

Description

Amada HFE M2 1303 Hydraulic Press Brake 146 Ton – Year 2017

Year 2017
Make Amada
Model HFE M2 1303
Amada HFE M2 1303 146 Ton x 10′ Hydraulic Press Brake



Capacity 146 Ton
Overall Length of Bed 10′
Control Amada
Back Gauge 5-Axis
Distance Between Housings 106″
Stroke 7.8″
Throat Depth 16.5″
Open Height 18.5″
Number of Axis 8
Ram Speed (Fast Approach) Approx. 3.94 I.P.S.
Slow Bend Approx. .39 I.P.S.
Overall Dimensions 14′ X 8.5′ X 9.25′
Machine Weight 18,500 Lbs.

FEATURES

Electronic Foot Pedal Punch Holders
Die Holders Included
