Description

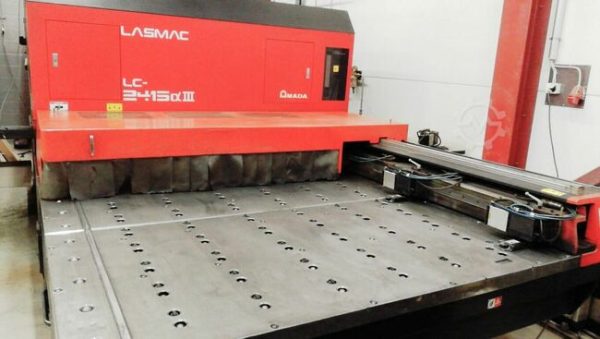

Amada LC 2415 Alpha III, 4Kw CO2 laser.

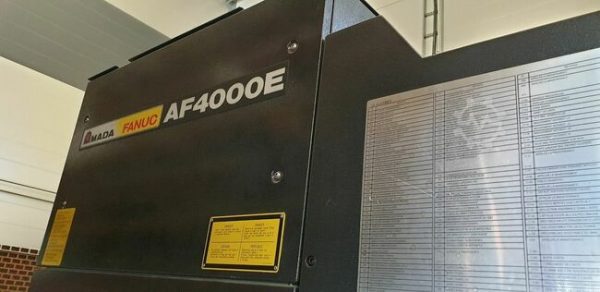

Fanuc 160i controlled, end of 2005 build laser with low operation hour.
Machine is still in production and running well.
Power on 28550 hours, cutting time 10670 hours.
Technical specification
X-Axis travel: 2520 with reposition 5040 mm
Y-Axis travel: 1550 mm
Z-Axis travel: 300 mm
Cutting speed: 80 m/min
Max. table load: 330 Kg
Max. cutting thickness: 9 mm
Laser power: 4 Kw
Machine size:
Length: 5614 mm
Width: 2500 mm (without operator panel)
Height: 2070 mm
Weight: 6600 Kg
Machine price include all.
Water chiller
Dust collector (Donaldson)
PEPS CAD/CAM software and computer what needed
