Description

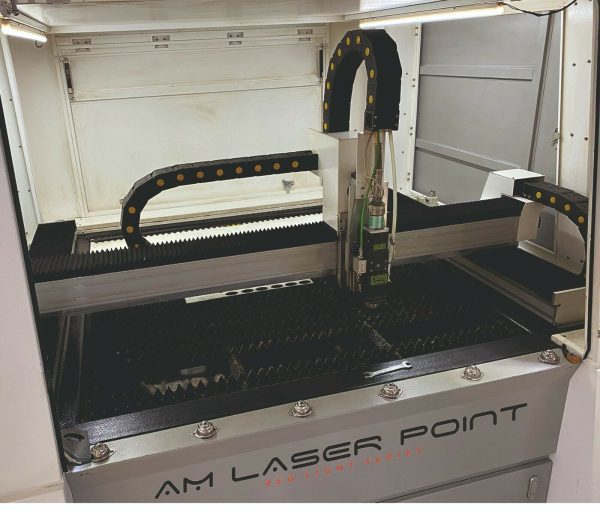

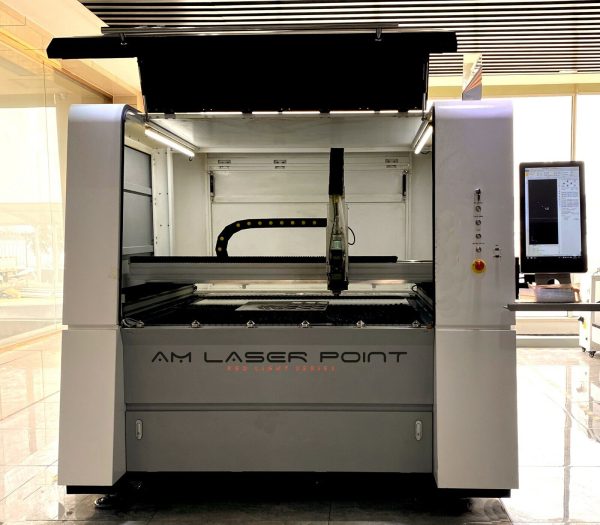

AMLP RLS200 1390 – Year 2022
Fiber Laser 3KW LK1
Condition : New
Fiber laser RLS200 1390 1 / 1.5 / 2 / 3 KW
Furnishing

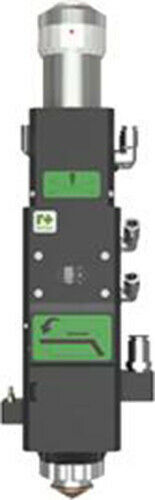

01) Switzerland Raytools laser head Auto-focus laser head
02) Japan Yaskawa Servo Motor
03) X,Z axis Taiwan TBI ball screw Y axis dual TBI ball screw
04) Taiwan AirTac pneumatic components
05) Taiwan PMI/Taiwan Hiwin guide rails
06) S&A water cooler

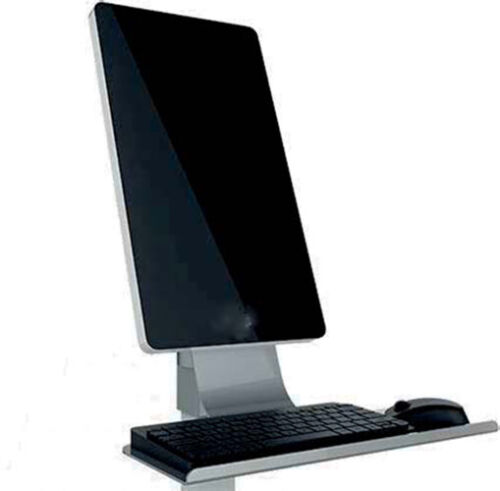

07) CYPCUT control system
08) France Schneider electrical components
09) Aviation Aluminum Carrier
10) IPG fiber laser source 1- 1.5, 2, 3KW anti-reflection
11) Voltage stabilizer 30kva
Model RLS2001390
Working surface 1300*900mm
Laser Power 1kw/1.5kw/2kw/3kw
Position accuracy 0.03mm
Repositioning accuracy 0.02mm
Smallest beam width 0.1mm
Machine weight 2000kg

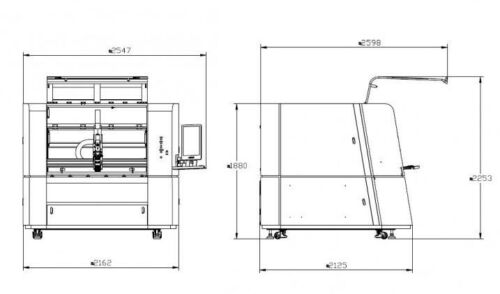

Machine dimensions 2100×2700×1650MM
Max loading capacity 250kg
Max acceleration speed 0.5G
Cutting thicknesses see list
24 hour continuity
Warranty on the machine 1 year
Laser unit warranty Depends on the manufacturer
Cooling water cooling
Voltage 380V
phase triphase
Frequency 50Hz/60/Hz

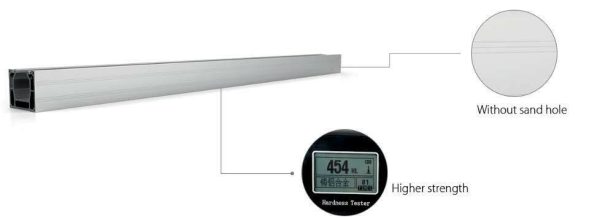

3rd aluminum generation
1. Engineered for the aerospace industry, this aluminum is formed and pressed at 4,300T. After the hardening process, the aluminum reaches a hardness of 6061 (T6). This aluminum is characterized by its durability, light weight, low density, corrosion resistance = anti-oxidation effect and it increases the moving speed of the laser head.
2. A steel frame weighs about 280kg, ordinary cast aluminum weighs about 180kg, the aerospace aluminum frame weighs only 138kg, which increases the cutting speed.
The segmented rectangular tube welding bed
1.Structure Advantage: The internal structure of the bed is the same as the honeycomb structure used in aviation. Stiffeners are placed in the tubes and increase the overall strength and tensile strength of the bed. They increase the resistance and stability of the guide rails, thereby preventing the bed from deforming.
2.For Material: The 600℃ heat treatment strengthens and tightens the hold
3.Result: High Strength, Stability, Tensile Strength, Durability. The material of the built-in supports has a thickness of 10mm. zen has a thickness of 10mm.
