Description
Asquith HFC 180 CNC – Year 1982
CNC | Heidenhain 415 CNC |
---|---|
X travel | 8000 mm |
Y travel | 3500 mm |
Z travel | 1000 mm |
Table length | 2440 mm |
Table width | 2440 mm |
Max. workpiece weight | 20000 kg |
Spindle diameter | 180 mm |
Max. spindle speed | 712 rpm |
Overhauled | no |
Weight | 20000 kg |
Asquith Model HFC 180CNC Floor Borer with Asquith HTU 20 Ton Rotary Table.
Year 1982
Spindle 180mm dia. 50iso taper
Spindle speeds 9.6 – 712 rpm

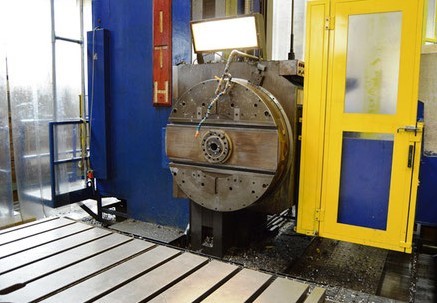

Facing Head 1,200mm dia.
Maximum dia. Faced 1760mm
Milling sleeve flange dia. 280mm
Double swivel 50 iso Universal Milling Head
Column Travel “X” Axis 8,000mm
Spindle Vertical Travel “Y” Axis 3,500mm
Spindle travel “Z” Axis 1,000mm
Facing Slide “W” Axis 280mm

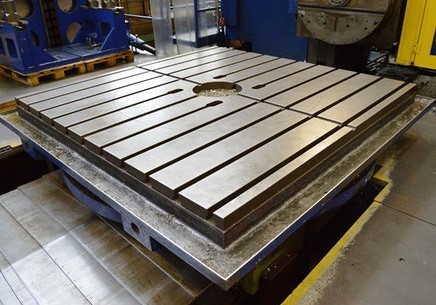

Rotary Table “B” Axis
2,440mm x 2440mm
Table traverse 1830mm “U” Axis
Table capacity 20,000kg

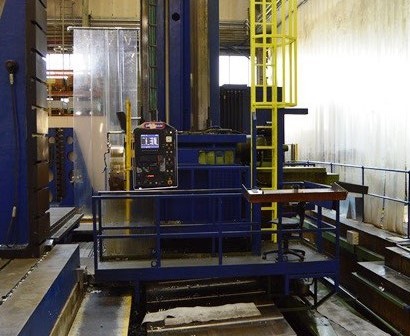

New Heidenhain 415 CNC Control fitted in 2014
All 5 Axis controlled through CNC.
Complete with Floor plates and Angle plates.
Full documentation
Accuracy report available
Annually service reports available
