Description
CNC Lathe AVM Angelini Snupj
Year of manufacture 2001
CNC control Fanuc Series 21i – T
turning diameter 210 mm
turning length 600 mm

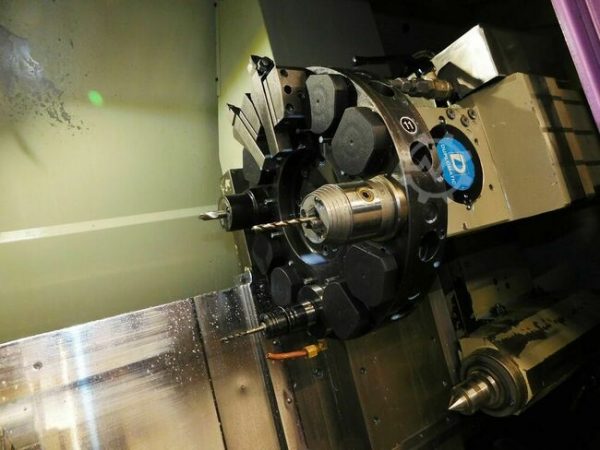

Revolver 12 fold
Chuck diameter 210 mm
spindle passage 60 mm
travel x axis 275 mm
Travel z axis 400 mm
Rapid traverse in z and x axis 20 m / min
Tailstock
quill stroke 190 mm
Mounting MK 4
Feed range 0.001 – 500 mm / min
Total drive 20 kw
spindle nose ASA 5
Speed range infinitely variable up to 4500 rpm
Chuck
Tailstock
Steel holder
Weight 5 to
At the price of Euro 9.000.– plus VAT ex location
