Description

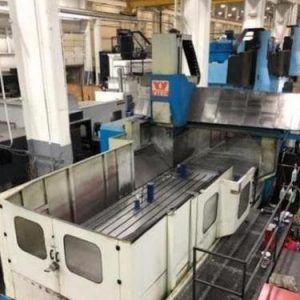

Awea EP 4025 CNC Double Column Machining Center – Year 2015
| X axis | 4020 mm |
|---|---|
| Y axis | 2500 mm |
| Z axis | 1000 mm |
| CNC | Yes |
| Table length | 4020 mm |
| Table width | 2400 mm |
| Max load on table | 15000 kg |
| Type of CNC | HEIDENHAIN iTNC-530 |
| Spindle taper | BT50 |
| Max. spindle speed | 3000 rpm |
| Spindle motor power | 22 kW |
Brand: AWEA
Model: EP 4025
Manufacturing year: December 2015 – Commissioning: May 2016
Type: Bridge
Numerical control: Heidenhain iTNC-530
Technical characteristics
Table
Table dimensions: 4020×2400 mm
Maximum weight on table: 15000 kg
Axis travel
Longitudinal travel (X axis): 4020 mm
Cross travel (Y axis): 2500 mm
Vertical travel (Z axis): 1000 mm
Distance between columns: 2700 mm
Distance from gantry to table (light): 1500 mm
Head
Direct output head: 6000rpm
Extender: 4000 rpm
Angular manual head: 90 ° – 3000 rpm (with internal cooling)
Axle cone: BT 50
Machine Advances
Rapid feeds (X, Y, Z): 15 m / min
Equipped with:
HEIDENHAIN HR-410 electronic handwheel
Worm-type internal chip extractor
Chain-type chip extractor
Chip deposit
Fairing
