Description

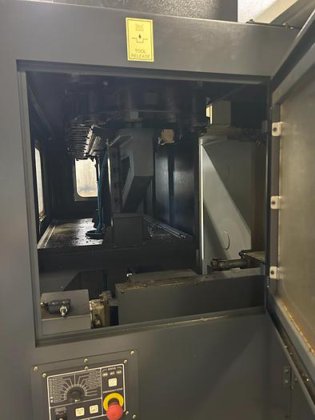

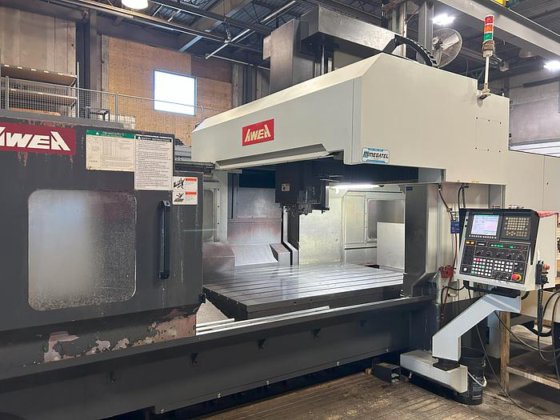

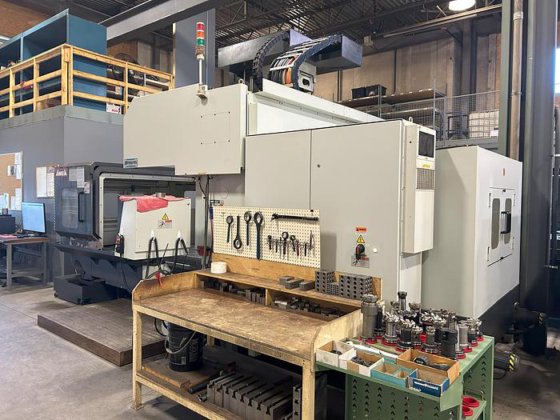

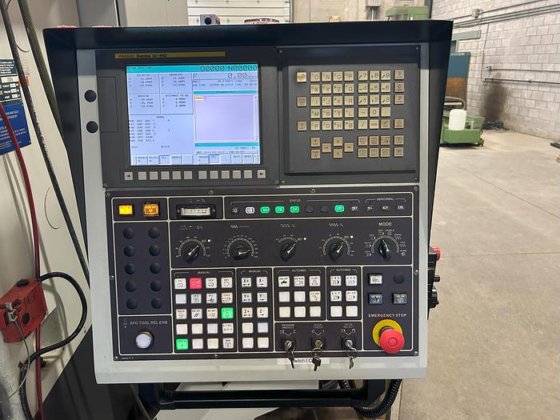

Awea SP-2016 CNC Bridge Vertical Machining Center – Year 2012
AWEA MODEL
SP-2016
WORKING CAPACITY
X travel 82.7″
Y travel 63.0″
Z travel 30.0″
Table size 90.9″ x 59.0″
Max. table load 17,600 lb
Distance between columns 66.9″
HEADSTOCK
Spindle motor ( cont. / 30min. ) 25 / 30 HP
Spindle speed 10 ~ 6,000 rpm
Spindle taper
CAT50
Distance nose
to table 6.3″ ~ 362″
FEEDRATE
Rapid traverse( X,Y axes ) 787.4 IPM
Z axis 590.5 IPM
Cutting feedrate 0.04 ~ 59
0.5 IPM
ACCURACY
Repeatability ± 0.0001″
Positioning
accuracy ± 0.0004″
Full travel
TOOL MAGAZINE
Tool capacity 32 )
Tool holder CAT50
Max. tool DIA. /adjacent empty 4″ / 5″
Max. tool length 11.8″ 11.8″
Max. tool weight 15 lb
Tool changingtime tool to tool 12 sec.
DIMENSION ( APPROX. )
Length 264″
Width 184″
Height 153″
SP-2016
