Description
Axis X | 2240 mm |
---|---|
Axis Y | 420 mm |
Axis Z | 480 mm |
Rotary table (4th axis) | yes |
Type of CNC | SIEMENS 810M |
Number of tool pockets | 22 |
Spindle taper | SK 50 |
Max. spindle speed | 8000 rpm |
Spindle motor power | 13 kW |
Length x width x height | 4000.0 × 2200.0 × 2700.0 |
Weight | 5500 kg |
Make AXA
Type VSC 1 M
Year 1995
Control CNC
Control SIEMENS 810M / GA3
Technical details
x-way 2240 mm
y-way 420 mm
z-way 480 mm
Control SIEMENS 810M
Speed 8000 1 / min
Tool holder SK 40
Rapid traverse in X-Y-Z axis 25-25-20 m / min
Tool changer 22 Pos.
Spindle 13 kW
Total power requirement 25 kVA
Machine weight approx. 5.5 t
Space required approx. 4,000 x 2,200 x 2700 mm
Additional Information

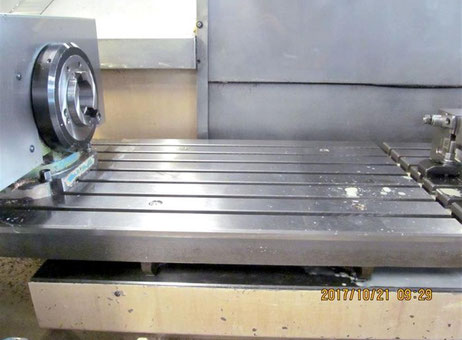

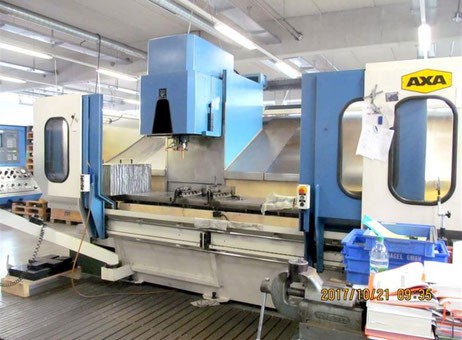

Vertical machining center with 4th axis (NC indexing unit with SK50 mounting), table size 3.350 (1.350 + 1000 + 1000) x 500mm, IKZ, pendulum machining possible (dividing wall available), direct path measuring system, chip conveyor, el. Handwheel, approx. 9,500 operating hours (according to mech. counter)
