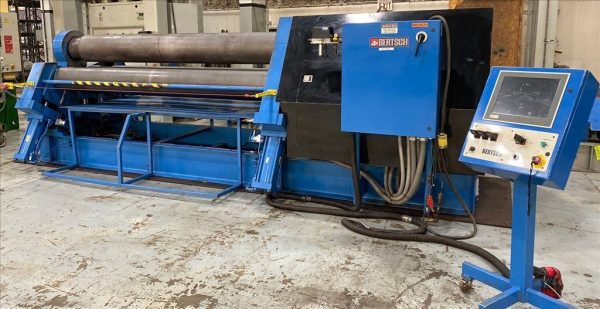

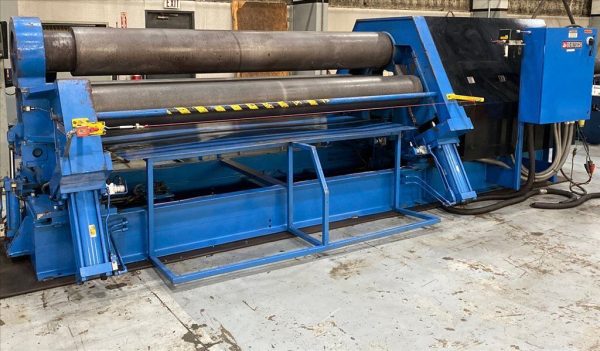

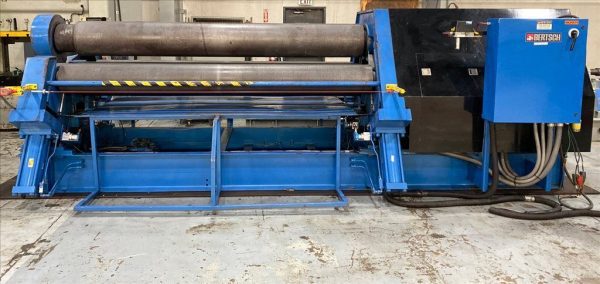

BERTSCH 7510 Plate Bending Roll – Year 2011
Nominal Rolling Capacity: 0.75″ x 120″
Max Rolling Capacity: 0.865″ x 120″
Rolling Capacity @ 70% Length: 1.024″ x 84″
Rollling Capacity @ 30% Length: 1.26″ x 36″
Maximum Rolling Length: 120″
Minimal Rollable I.D. (0.563″ Thickness): 16.9″ (Single Pass)
Minimal Rollable I.D. (0.75″ Thickness): 23.5″ (Multiple Pass)

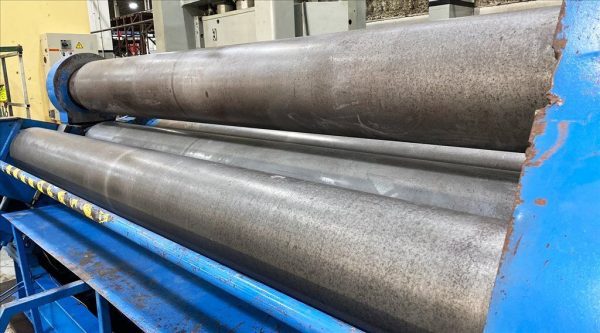

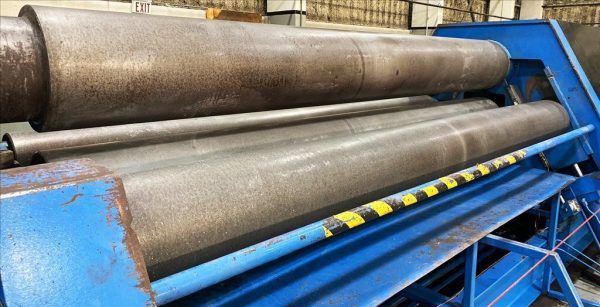

Top and Bottom Roll Diameters: 15″
Side Roll Diameters: 11″
EQUIPPED WITH:

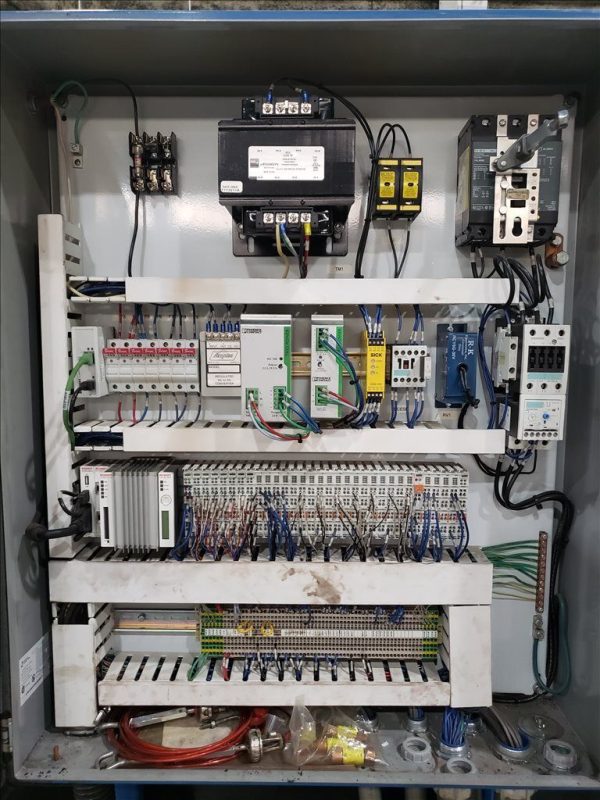

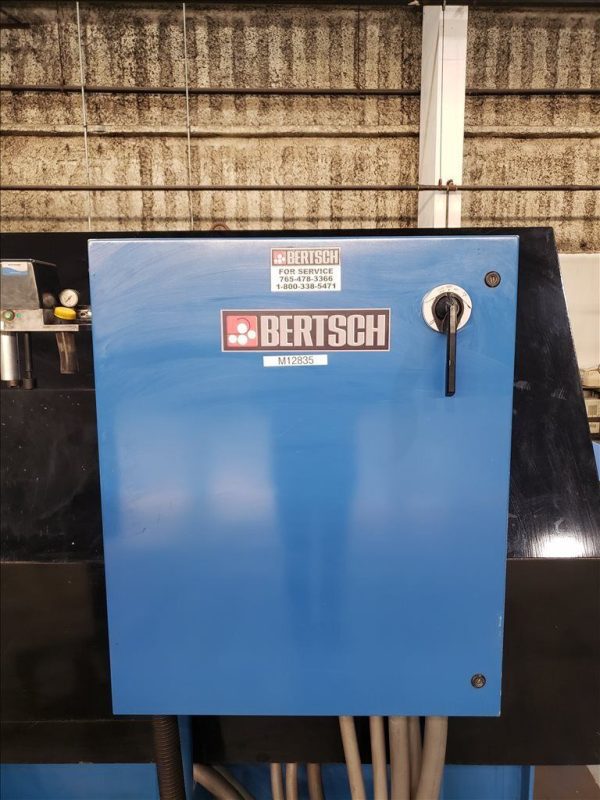

Bertsch / Megafab Control with Graphics
Hydraulic Drop End
Hydraulic Roll Adjustment
Variable Speed Rolls
Flat Floor Mounted
Self Contained Hydraulics
20 hp Main Hydraulic Motor
Plating For Pit Mounting If Desired
Approximate Weight: 45000 Lbs
