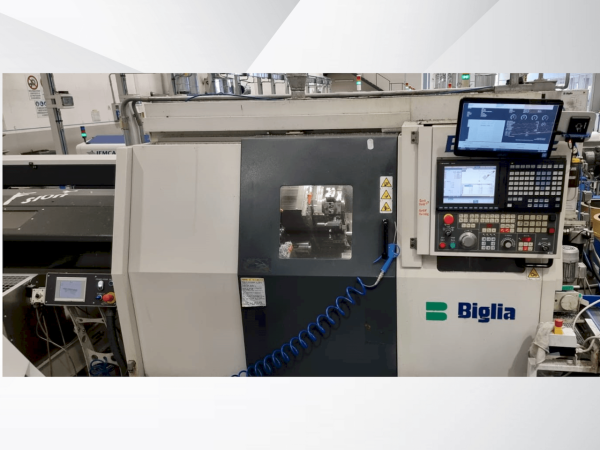

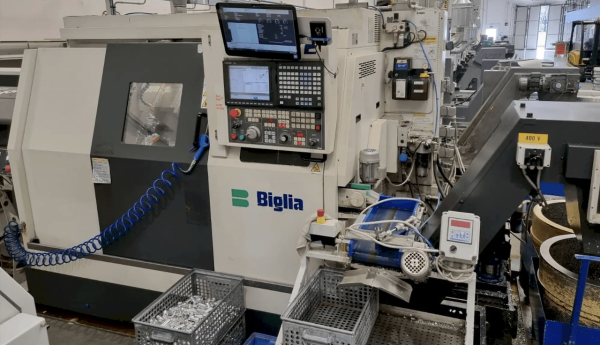

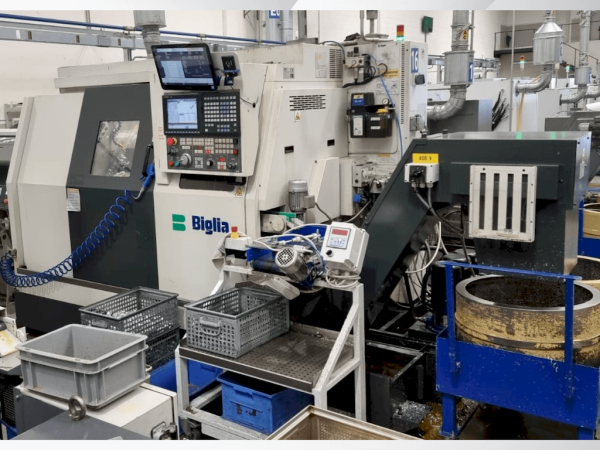

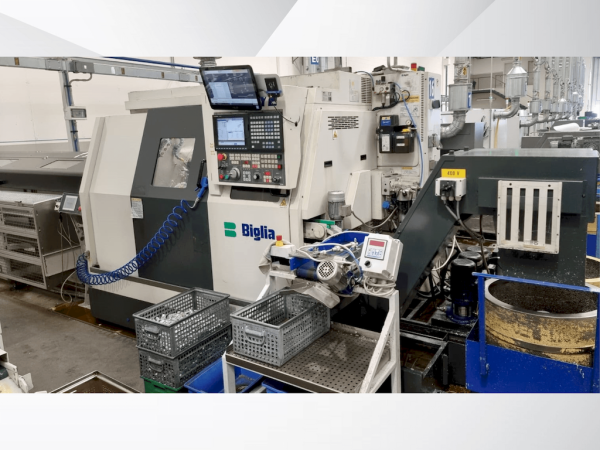

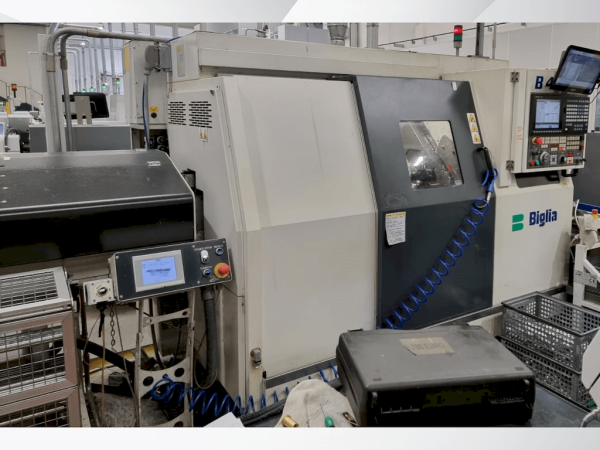

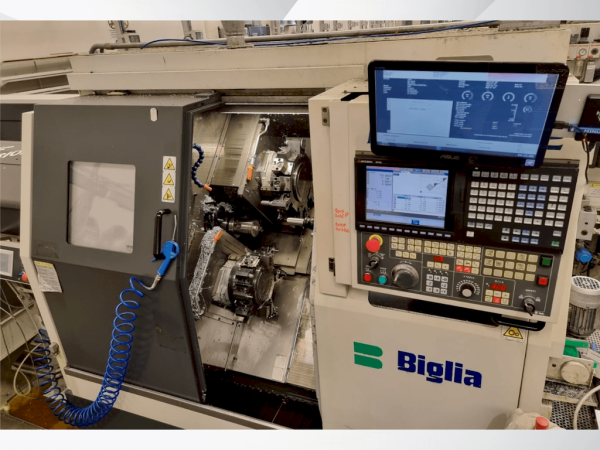

Biglia B436 Y2 CNC Turning Center – Year 2017

Contact us for price

Categories: ,

Description

Biglia B436 Y2 CNC Turning Center – Year 2017
Type of CNC MITSUBISHI M730 VS-L
X-axis 85 mm
Z-axis 300 mm
Spindle taper
Spindle bore 46 mm
Number of turrets 2
Number of tools on turret 14
Turning speed 7000 rpm
Spindle motor power 11 kW
Length x width x height 3687.0 × 1515.0 × 1992.0
Weight 4700 kg
Machine width: 1515 mm
Machine depth: 3687 mm
Machine height: 1992 mm
Machine weight: 4700 kg
CNC: MITSUBISHI M730 VS-L
Spindle speed range: 7000 rpm
Spindle motor power: 11 kW
X-Axis Movement: 85
Y-Axis Movement: 50
Z-Axis Movement: 300
Tool carrier / Revolver 1 with 8 tool places / Tool system cylindrical shank 25 x 48 mm / Turret 2 with 6 tool positions.
Chip conveyor:Discharge height 650 mm / Hydraulic system:Delivery rate 19 l/min. / System pressure 90 bar.
Filling volume 50 litres / Coolant system:Flow rate 40 l/min / System pressure 4 bar / Filling volume 210 litres.
Material feed device:Rod diameter max 52 mm.
Feed stroke max. 80 mm / Feed force 3000 N / Ejection device for synchronised spindle:Ejection stroke 40 mm.
Hydraulic ejection and flushing device:Ejection stroke 40 mm / Back-boring device:Max. 5 stationary tools.
Max. 3 stationary and 2 driven tools / Speed 6000 min-1. / Torque 8 Nm / Tool mounting hole 25 mm.

X-axis: 85 mm (x₁ axis), 85 mm (x₂ axis), 170 mm (x₃ axis) / y-axis: 50 mm (+25/-25) (y₁ axis), 50 mm (+25/-25) (y₂ axis) / z-axis: 300 mm (z₁ axis), 300 mm (z₂ axis), 340 mm (z₃ axis).
Hydraulic system:tank capacity: 25 liters / motor power: 2. 2 kw / maximum pressure: 40 bar.
Lubrication system:tank capacity: 3 liters / the machine is ce certified.
Motorized turret transmission:tool spindle motor power: 2. 2 kw.
Maximum torque: 22 nm.
Boring bar diameter: 20 mm.
Turrets:tool post compatible with tool holders type: biglia. / tool shank dimensions: 16×16 mm. / boring bar diameter: 20 mm.Power: 40 kW, 70 A.
Control Panel: BIGLIA.
Power Supply: 400V 50Hz.
Working range:

Maximum bar turning diameter: 36 mm.
Bar passage tube diameter: 37.5 mm.

Main Spindle:

Maximum speed: 7000 rpm.
Spindle nose flange type: 115 mm.
Spindle hole: 46 mm.
Inner diameter of the three front bearings: 75 mm.
Spindle motor power: 11 kW.
Continuous spindle motor power: 7.5 kW.
Constant power from: 1700 rpm.
Maximum torque: 62 Nm.
Push section of collet chuck closing cylinder: 75 cm².
Stroke of collet chuck closing cylinder: 26 mm.
Adjustable closing force from 5 to 30 Bar.
Maximum clamping force: 2250 daN.

Counter Spindle:

Maximum speed: 7000 rpm.
Spindle nose flange type: 115 mm.
Spindle hole: 46 mm.
Inner diameter of the three front bearings: 75 mm.
Spindle motor power: 11 kW.
Continuous spindle motor power: 7.5 kW.
Constant power from: 1700 rpm.
Maximum torque: 62 Nm.
Push section of collet chuck closing cylinder: 75 cm².
Stroke of collet chuck closing cylinder: 26 mm.
Adjustable closing force from 5 to 30 Bar.
Maximum clamping force: 2250 daN.

Upper Cross Slide:
Z₁ axis (longitudinal slide):Maximum stroke: 300 mm.
Screw diameter/pitch: 25/10 mm.
Maximum rapid speed: 30 m/min.

X₁ axis (transversal slide):Maximum stroke: 85 mm.
Screw diameter/pitch: 25/10 mm.
Maximum rapid speed: 15 m/min.

Y₁ axis (vertical slide):Maximum stroke: 50 mm (+25/-25).
Screw diameter/pitch: 25/5 mm.
Maximum rapid speed: 15 m/min.

Lower Cross Slide:
Z₂ axis (longitudinal slide):Maximum stroke: 300 mm.
Screw diameter/pitch: 25/10 mm.
Maximum rapid speed: 30 m/min.

X₂ axis (transversal slide):Maximum stroke: 85 mm.
Screw diameter/pitch: 25/5 mm.
Maximum rapid speed: 15 m/min.

Y₂ axis (vertical slide):Maximum stroke: 50 mm (+25/-25).
Screw diameter/pitch: 25/5 mm.
Maximum rapid speed: 15 m/min.

Counter Spindle Cross Slide:
Z₃ axis (longitudinal slide):Maximum stroke: 340 mm.
Screw diameter/pitch: 25/10 mm.
Maximum rapid speed: 30 m/min.

X₃ axis (transversal slide):Maximum stroke: 170 mm (+85/-85).
Screw diameter: 25/5 mm.
Maximum rapid speed: 15 m/min.

8-axis Biglia B436 Y2 horizontal turning machine was manufactured in 2017. It features a robust 40 kW power output and a high-speed spindle capable of 7000 rpm. The machine offers a maximum bar turning diameter of 36 mm and a bar passage tube diameter of 37.5 mm. It’s equipped with a Mitsubishi M730 VS-L CNC and a Biglia control panel. Ideal for precision machining, the Biglia B436 Y2 machine for sale
