Description

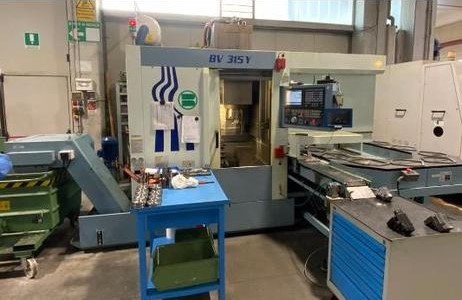

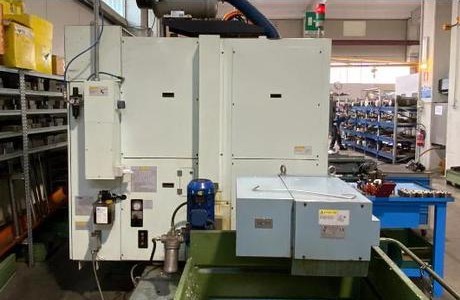

Biglia BV315-Y – Year 2010
| Plate diameter | 300 mm |
|---|---|
| Working height | 200 mm |
| CNC type | CNC Vertical Lathe |
| Max piece weight | 25 kg |
| Rotation speed | 3500 rpm |
| Motor power | 3.7 kW |
| Overhauled | no |
| Length x width x height | 3570.0 × 4400.0 × 4900.0 |
| Weight | 5300 kg |
Features:

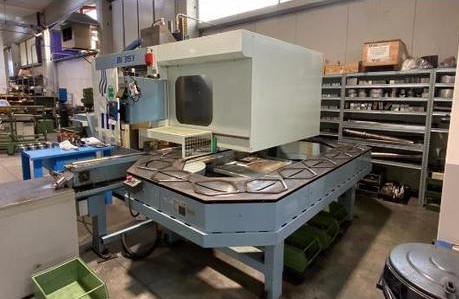

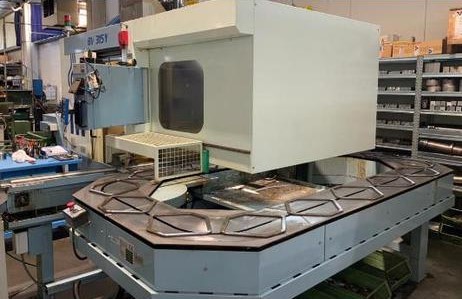

Complete with loading-unloading carousel
Maximum turning diameter 300 mm
Maximum turning length 200 mm
Maximum workpiece weight 25 kg
RPM 3500
MADO spindle ASA 8
Power 15/18 kw
Torque 315 nm
Constant power 450 mm

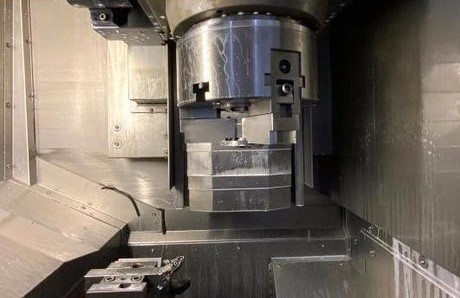

Maximum self-centering diameter 315 mm
Z axis travel 370 mm
X axis travel 1365 mm
Y axis travel 150 mm (+ 75 / -75)
Motorized turret
Spindle power 2,2 / 3,7 kw
Motorized rpm 4000

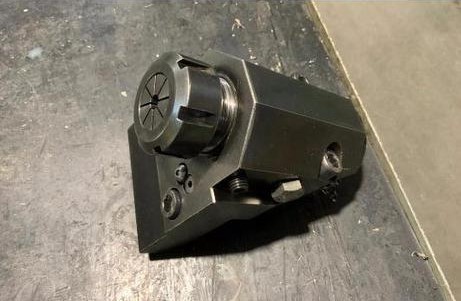

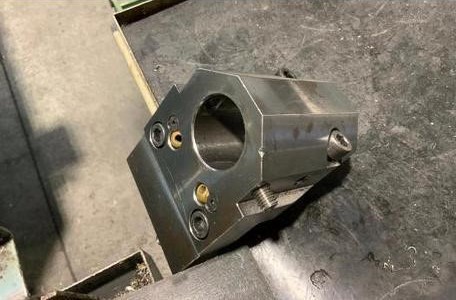

Set of motorized and static tool holders
Dimensions:
Height 2675 mm
Depth 2100 mm
Maximum depth with carousel 3570 mm
Length with evacuator 4400 mm
Length with evacuator and carousel 4900 mm
Total weight 5300 kg
