Biglia Smart Turn 1200 S CNC MultiTasking Machine – Year 2010

Contact us for price

Categories: ,

Description

Biglia Smart Turn 1200 S CNC MultiTasking Machine – Year 2010
Manufacturer: Biglia
Model: Smart Turn 1200 S
Condition: excellent (used)

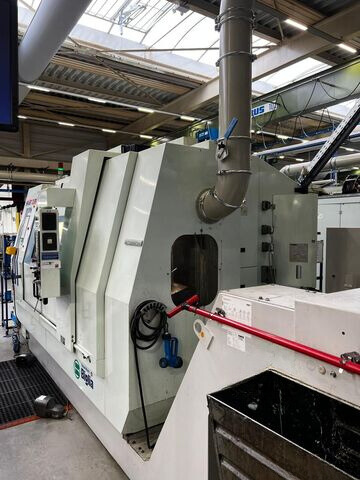

Biglia Smart Turn 1200 S built in 2010.

Two identical machines are for sale.
Both machines come from German companies and have been serviced regularly. Machines are in very good condition.
Very universal, well-equipped, 7-axis machines for simultaneous multitasking (turning-milling) processing.

Machines are professionally dismantled and stored in Hungary.

Technical specifications

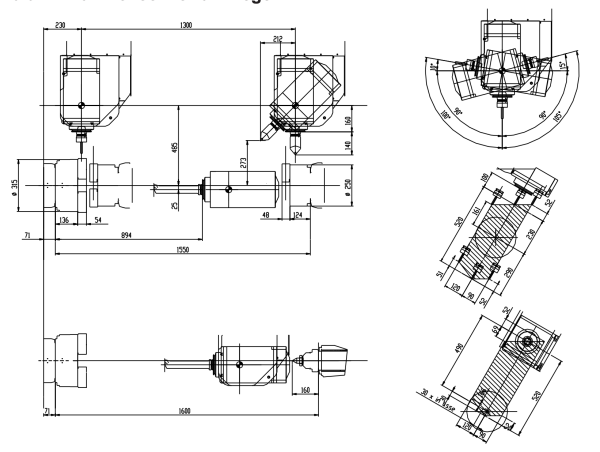

Workspace:

Max. turning diameter (mm): 400
Max swing diameter (mm): 700
Max. swing diameter over X-carriage (mm): 580
Max turning length with chuck (mm): 1200
Max turning diameter from the bar: 93
Max. bar capacity (mm): 95

Spindle:

Max Speed (RPM): 3000
Spindle Nose (mm): ASA 8”
Spindle bore (mm): 106
Inside diameter of the three front bearings (mm): 150
Power spindle motor (kW): 25
Max Torque (N/m): 795
Max. usable chuck diameter (mm): 315

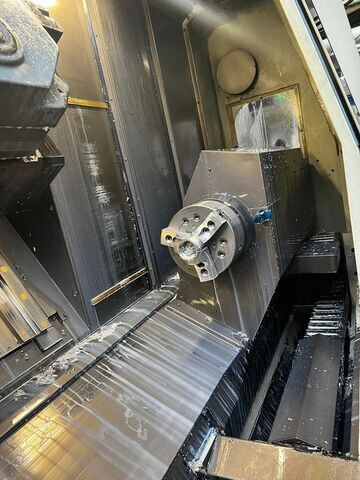

counter spindle:

Max Speed (RPM): 3500
Spindle Nose (mm): ASA 6”
Spindle bore (mm): 76
Bar Capacity (mm): 67
Max Torque (N/m): 334
Max. usable chuck diameter (mm): 250

Driven motor spindle:

Recording HSK-63
Max speed (RPM) 6000
Motor power motor spindle (kW) 6
Max torque (N/m) 86
Spindle swivel angle for turning 7.5°

cross slide:

Z-axis longitudinal slide
Max. travel (mm) 1300
Spindle diameter (mm) 40
Max. rapid traverse speed (m/min) 20
X axis cross slide
Max. travel (mm) 520
Spindle diameter (mm) 32
Max. rapid traverse speed (m/min) 20

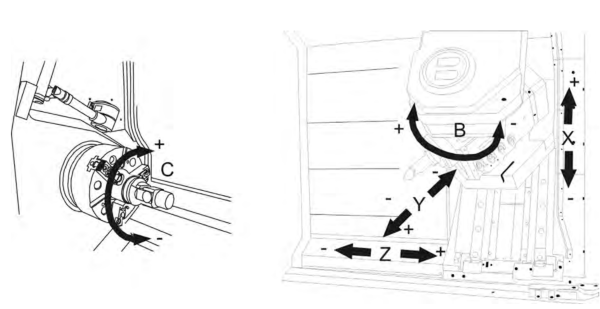

Y axis vertical slide
Max travel (mm) 210 (+120, -90)
Spindle diameter (mm) 32
Max. rapid traverse speed (m/min) 12

C axis:
Programmable minimum value 0.001°

B-axis unit:

Total swivel range 205°
Angular positioning with mechanical clamping every 5°
Angular positioning via motor (without clamping) Positioning 0.001°
Torque with mechanical clamping (N/m) 3600
Torque with clamping via motor (N/m) 1200

Tool magazine:

Tool magazine type chain magazine
Magazine slots 40
Max. tool diameter with neighboring tools (mm) 80
Max. WZG diameter without neighbor WZG (mm) 140
Max tool length (mm) 295
Max. tool weight (kg) 7
Tool change time (TM – TM) 5”

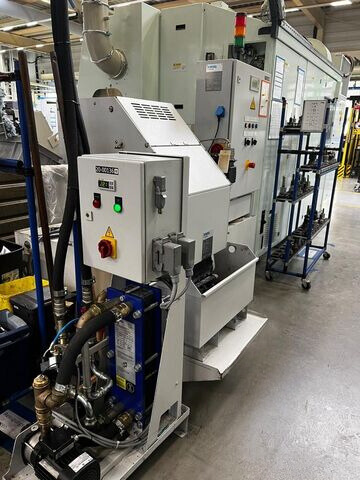

Cooling system:
Pump 1.8 MPa (18 bar) with 20 l/min
Tank size (l) 300
Dimensions in mm (LxWxH): 2,450 x 2,250 x 5,550

Weight: 9,000 kg

Electrical connection: 400 V, 50 Hz
Connection value: 55kW
Noise level 79 (dBA)
