Description
BIGLIA SMART TURN 1200 S – Year 2011
| Max. Ø | 500 mm |
|---|---|
| Nbr of spindles | 3 |
| Max. length | 1250 mm |
| Type | CNC |
| Type of CNC | FANUC 31i-TA-5 |
| Nbr of axes | 4 |
| Number of tools | 40 |
| Spindle speed | 3000 rpm |
| Spindle power | 20 kW |
| Length x width x height | 5214.0 × 2053.0 × 2385.0 |
| Weight | 8450 kg |

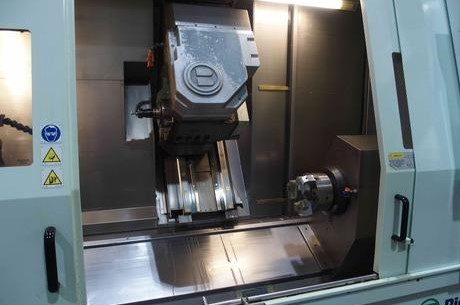

CNC turning-milling centre
Manufacturer BIGLIA
Model SMART TURN 1200 S
Year of manufacture 2011
DESCRIPTION
Bar capacity 94 mm
Turning diameter 500 mm
Turning length 1250 mm
Spindle passage 95 mm
Control FANUC 31i-TA-5
Direct programming MANUAL GUIDE
Direct path measurement in all axes

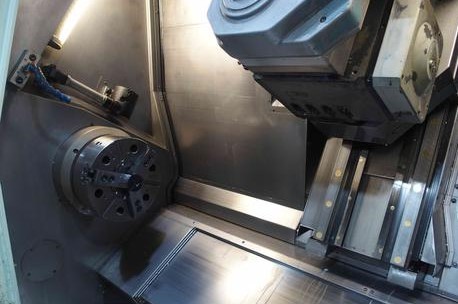

Main spindle A8 – 30 kW motor spindle
Counter spindle A6 – 30 kW motor spindle
Speed 3000 min-1
C-axes with disc brake

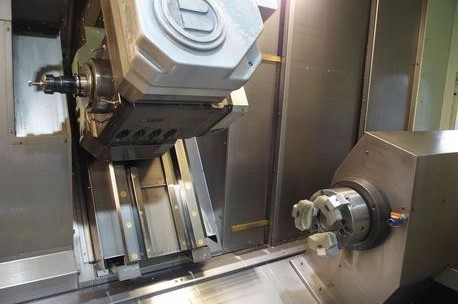

Milling spindle 20kW/110 NM
Speed 8000 min-1; swivel range +/- 105 degrees
Tool holder HSK 63 Y-axis +120/-90 mm
Tool magazine with 40 places
Measuring probe for tool measurement
Automatic machine switch-off
Slat-band chain conveyor
Coolant system 300 l with pump 25 bar
Grippex bar gripper system
wide range of accessories
Control ON: 42.779 hrs.
Running time: 12.615 hrs.
Machining time: 12.455 hrs.
