Description

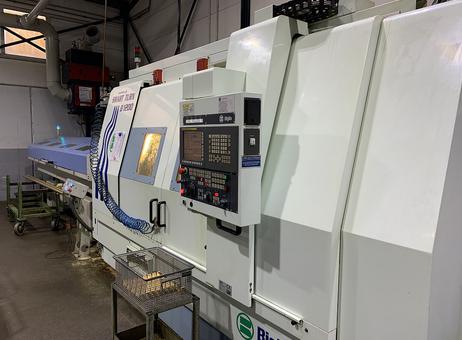

BIGLIA SMART Turn 1200 – Year 2008
| Max. Ø | 500 mm |
|---|---|
| Nbr of spindles | 3 |
| Max. length | 1260 mm |
| Type of CNC | Multi-Tasking Turning Machining Center |
| Nbr of axes | 4 |
| Number of tools | 40 |
| Spindle speed | 10000 rpm |
| Spindle power | 30 kW |
| Length x width x height | 5500.0 × 2230.0 × 2385.0 |
| Weight | 8200 kg |
Machine type: Turn-mill centre
Manufacturer: BIGLIA
Model: SMART Turn 1200
Year of manufacture: 2008
Condition: very good (used)
Technical data:
Max. Swing diameter: 750 mm
Max. Swing diameter: 500 mm
Max. Turning length: 1260 mm
Traverse paths:
x-axis: 510 mm
y-axis: 210 (+120/- 90) mm
z-axis: 1350 mm
B-axis
Swivel range: 205° (+105° / -100°)
Angular positioning: 0.001
Main spindle
Max. Speed 2800 rpm
Spindle nose DIN 53026: 8° ASA
Max. Bar capacity (Opt.): 94 / (102) mm
Max. Motor power: 30 kW
Max. Torque 776 Nm
Chuck diameter: 250 – 315 – 400 mm

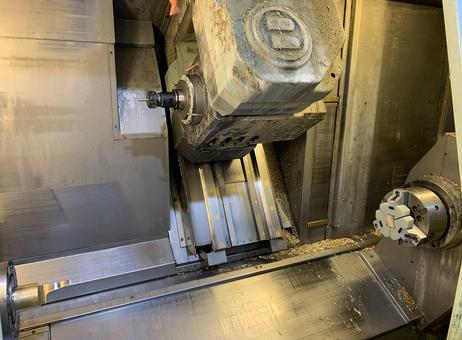

Turn-mill spindle B-axis
Tool holder: HSK A63
Max. Speed (Opt.): 6000 (10000) rpm
Max. Motor power: 9 kW
Max. torque Torque: 86 Nm
Tool magazine
Number of tool places: 40
Counter spindle
Chuck diameter: 210 – 250 mm
Machine dimensions
L x W x H: 5500 x 2230 x 2385 mm
Weight 8200 kg
