Description
BLANCHARD 18K-42
EXTRA-HIGH Vertical Spindle Rotary surface Grinder

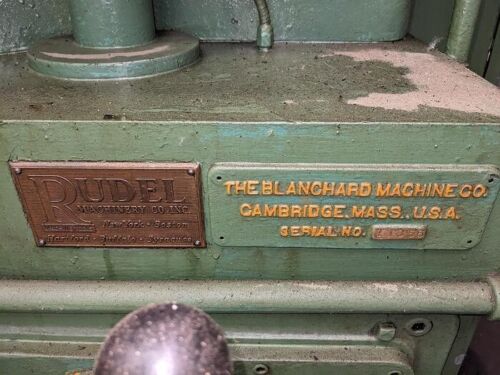

Serial No 11356,
Model 18-42
EQUIPPED WITH:
18″ Height Under Wheel
Vertical Spindle Machine Design

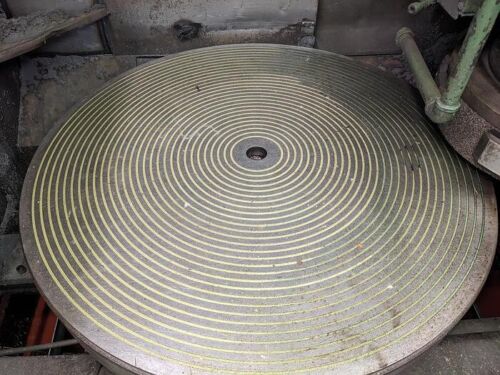

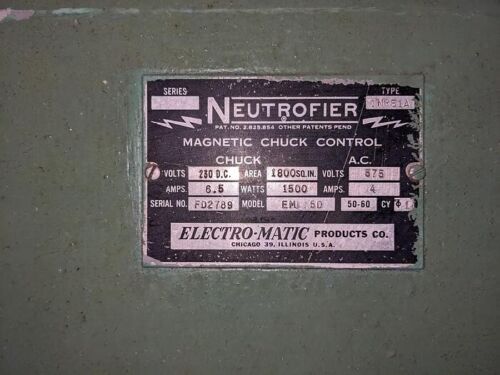

42″ Diameter Magnetic Chuck

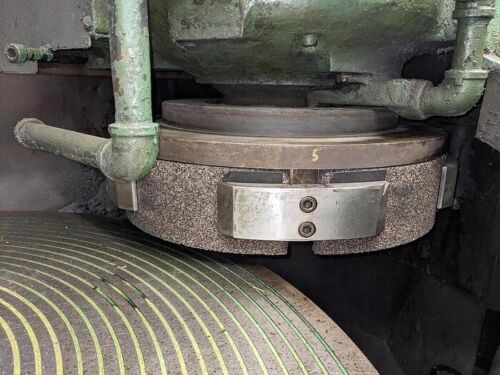

Segmented Grinding Wheel w/(8) Segments
50 HP Spindle Motor – Load Meter

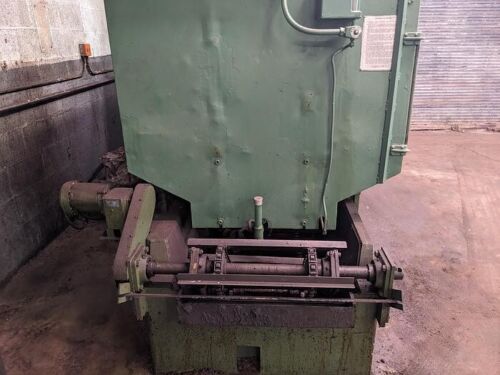

Motorized Sludge Conveyor System
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 42″
Magnetic Chuck Face, Diameter 42″
Swing Between Coolant-Guards 48″
Magnetic Chuck Work Load Capacity 2000 LBS
Height Under Grinding Wheel, Maximum 18″
Grinding Head Vertical Travel 10.5″
(6) Chuck Speeds, Range 6 to 33 RPM
(20) Power Down Feeds, Range .004 to .076 IPM
Motor Horsepower 50 HP

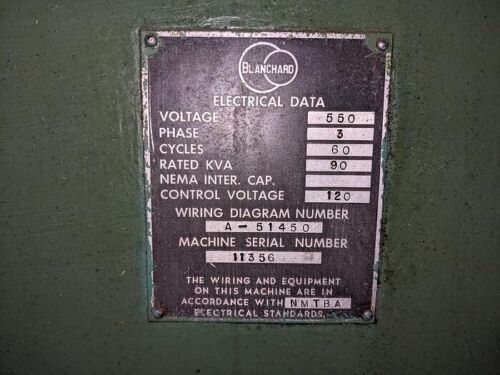

Electrical System 220-440/3/60
Floor Space Required, W x D 9’9″ x 5’5″
Overall Height 8’2″
Weight, Approximately 13900 LBS
