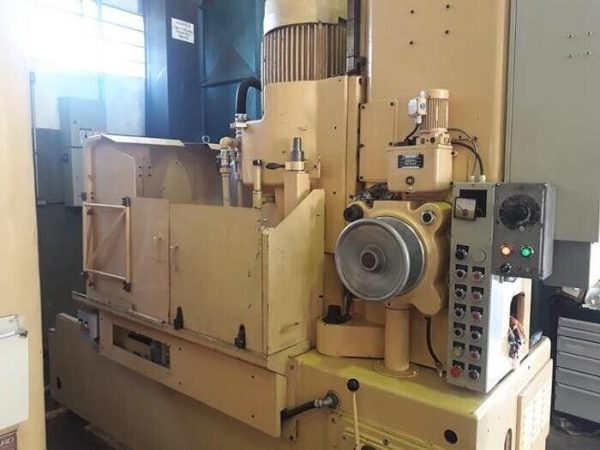

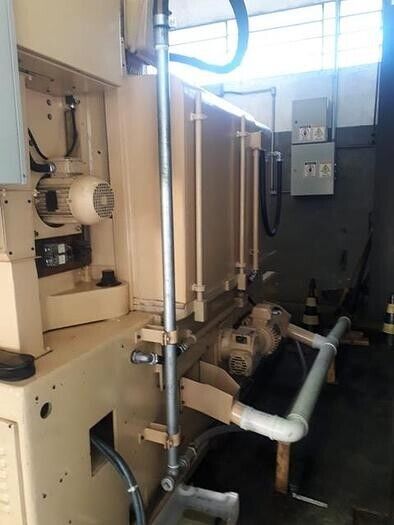

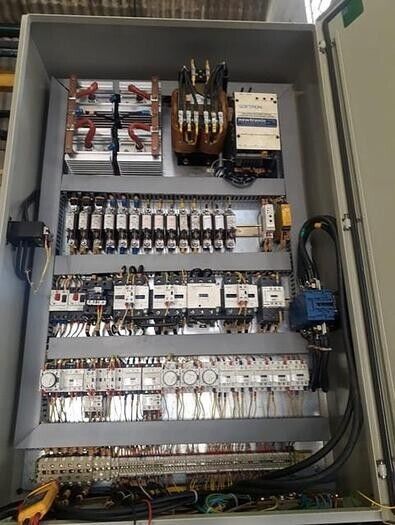

BLANCHARD 22HD-42 Rotary Table Surface Grinder
42″ BLANCHARD HIGH-POWER DRY-BASE
VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 13871,
Model 22HD-42
EQUIPPED WITH:
42″ Diameter Magnetic Chuck w/Variable Neutrofier
75 HP Spindle Motor (Optional)
Dry Base Design
23″ Vertical Range
22″ Segmented Grinding Wheel w/(5) Segments
Automatic Lubrication
CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 42″
Swing Between Coolant-Guards 48″
Magnetic Chuck Work Load Capacity 3000 LBS
Grinding Vertical Range, Maximum 23″
Grinding Wheel Speed 672 RPM
(6) Chuck Speeds, Range 6 to 33 RPM
Spindle Motor, Horsepower 75 HP
Chuck Rotation Motor 3 HP
Overall Dimensions, L x W 11’8″ x 7′
Overall Height 10’1″
Weight, Approximately 14500 LBS
F.O.B. OUR WAREHOUS
ALL MACHINE/EQUIPMENT ARE SUBJECT TO PRIOR SALE
