Description

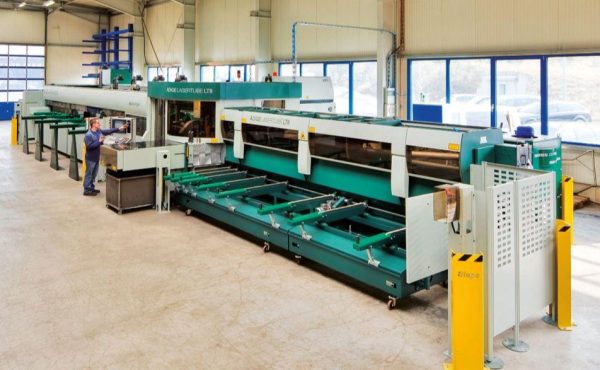

BLM Adige Lasertube LT 8 – Year 2010
CNC Laser Cutting Machine
| Power | 3500 W |
| Type | CO₂ |
| Option to cut tubes | yes |
| CNC | yes |
| CNC type | Siemens Sinumerik 840D |
| BLM Adige Lasertube LT 8 | |
| Weight | 10200 kg |
| Worked hours | 12488 hours |
| Hours under power | 24224 hours |
BLM Adige Lasertube LT 8 3500 Watt (3D head,bevel cut)
Year of manufacture 2010

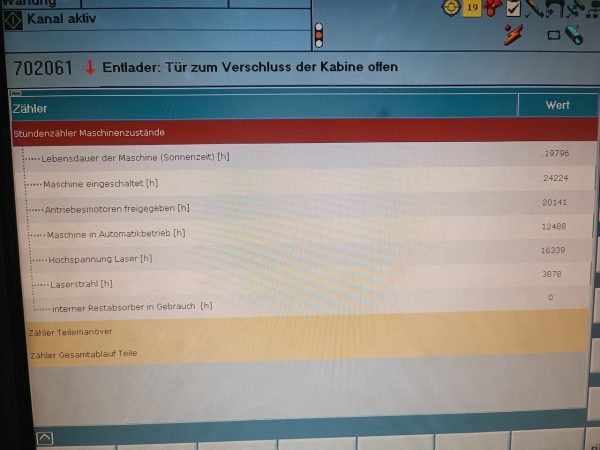

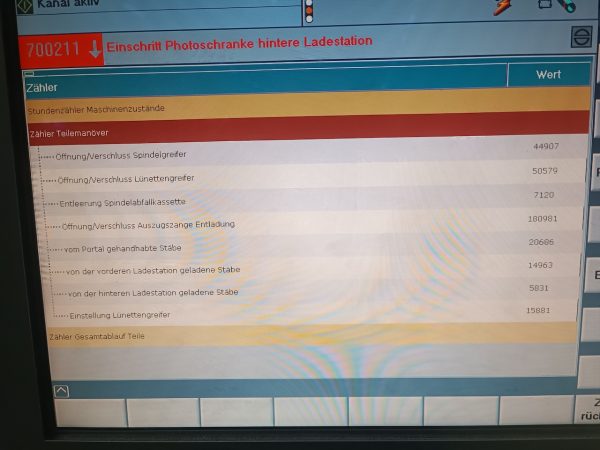

Machine hours: 24224h see pictures
Laser source: ROFIN SINAR DC 035 3500 Watt
The LT8 system is equipped with a Rofin Sinar DC series slab laser, which provides optimum cutting quality at low operating costs thanks to the following features:
– High beam index (K-factor ᐳ 0.9)
– No moving parts, therefore very low maintenance costs.
– Minimal gas and electricity consumption.
Control system
Siemens Sinumerik 840D Solution Line
Pipe parameters
Max. Diameter of round pipes: 220 mm
Max. Side length of rectangular pipes: 200 mm
Max. Pipe length when loaded: 8,500 mm
Max. tube length Pipe length unloading: 6,500 mm
Max. pipe weight Pipe weight: 35 kg/m
Irregular cross-sections and open profiles
Thanks to the effective and efficient machining of irregular cross-sections and open profiles, LT8 is also suitable for innovative applications.
3D
Three-dimensional machining is a decisive criterion for the performance of a system when it comes to large pipes. The LT8 has a 3D head for angular cutting of the highest quality and accuracy.
Technological database
LT8 users can benefit from a complete, reliable technological database of cutting parameters based on ADIGE’s many years of experience in laser cutting.
technological database of cutting parameters.
2 IN
Two different loading stations guarantee greater flexibility in the management of production batches.
management of production batches. The system can be set up to process open profiles and flat material in automatic sequence; Two automatic loading stations, front and rear, both equipped with measuring sensors; Three possible loading configurations available (bundle loader, loading table for individually manually deposited bars, step loader). Each loader can be connected to any pipe loading station, and is available in the 8500 mm configuration; Two different cross-sections can be managed simultaneously by means of the By-Pass function; For the processing of heavy pipes or stainless steels, additional protection elements are provided in the machine to prevent possible damage to the pipes.
to avoid possible damage to the surface of the pipe.
4 OUT
Four unloading positions for the separate unloading of the cut pieces. The use of specially developed software sequences allows the optimisation and utilisation of the bar, reducing the final waste to only 110 mm. Four possible unloading positions for sorting out the different cut pieces. Parts are supported by universal supports at each production step – for highly accurate machining even of long, heavy and/or complex parts. Further reduced cycle times and integrity of the tube surface are ensured by the special unloading gripper on the unloader.
