Description

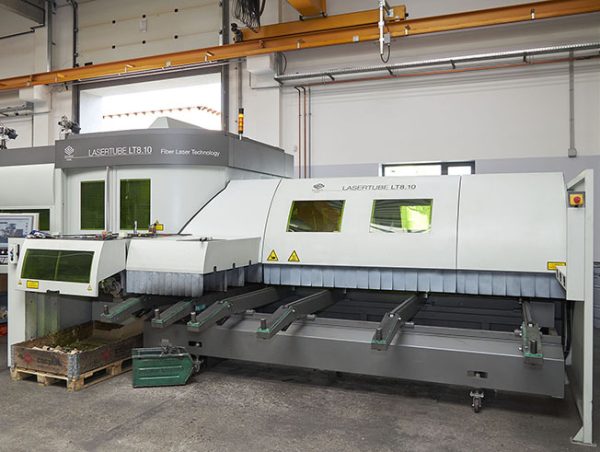

BLM Group ADIGE-LT8.10 CNC Laser Tube Cutter 3kW – Year 2017

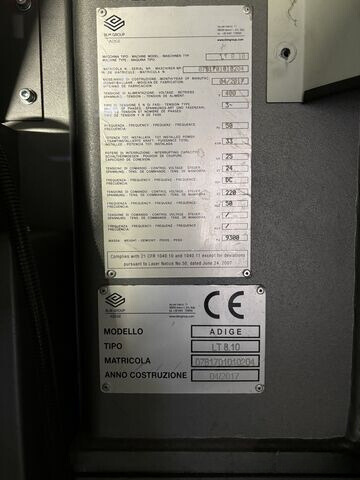

Manufacturer: BLM Group
Model: Adige LT8.10 Fiber
Year of construction: 2017
Condition: like new (used)
Functionality: fully functional
laser power: 3,000 W
type of input current: three-phase
working range: 6,000 mm
input voltage: 400 V
power: 3 kW (4.08 HP)
Equipment:
cooling unit, documentation/manual, safety light barrier
High productivity Lasertube System ADIGE LT8.10.
Automatic equipment suitable to process with laser beam on tubes and
open profiles.
Fully automatic bars loading process, cutting and unloading of the
processed parts, with the highest flexibility and productivity.
Modular system configuration with one (1) or two (2) loading devices,
frontward and backward.
A minimum of three (3) parts unloading positions are available, with a
two (2) position automatic scraps collection device
The System is prepared to process elliptical and similar type of box
section with required optional special closing plates mounted on the
main tube closing chuck.
CNC:
– Siemens 840D SL with digital motorized axes
– NCU 730.2, program memory 3 MB
– User interface: Processor Intel Core i7-610E 2,53 GHz, 4 GB
RAM, hard disk SSD 50 GB, TFT colour touch monitor 19″, USB
LT8.10 integration for FIBER laser source.
Suitable for material made of mild, alloyed and stainless steel, brass
and copper; also of aluminium alloy, but with an optional device for a
correct and safe cut dust suction process.
3D head ADIGE TubeCutter focusing head with rotation axis (additional
CNC axis) with integrated rotor-stator and with +45° to -45° tilting range
to the vertical line

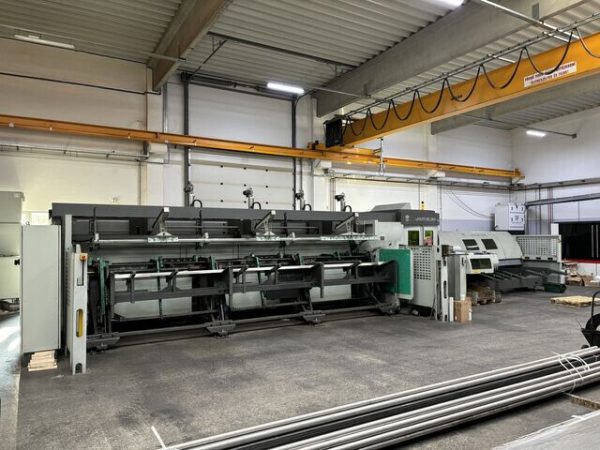

Automatic bundle loader for round, square, rectangular and flat-oval
tubes.
Minimum bar length 2500 mm, maximum 6500 mm.
Maximum capacity 4000 kg.
Discharge module for 4500 mm cut tube length.
Automatic Supporting unloader designed for all type and weight of
tubes within the machine specification.
Fully automatic doesn’t require manual adjustment, with three (3) CNC
controlled axes, supplied with:
IPG YSL 3000 fibre laser source.
Nominal power: 3000 W.
Wave length: 1.07 µm.
Fibre diameter: 100 µm.
Pulse frequency: 0-3 kHz.
Complete with pulse generator, control panel and control.
