Description

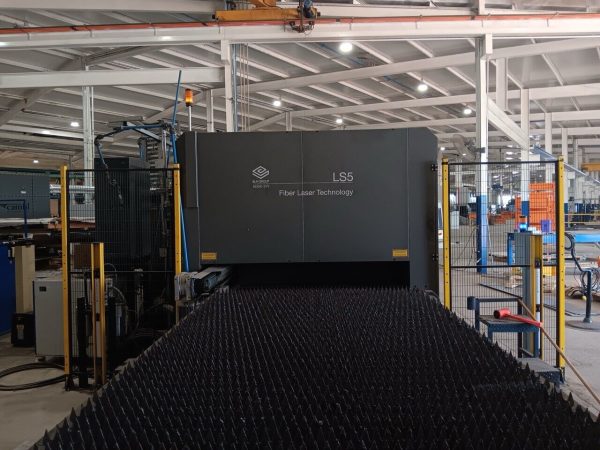

BLM LS5 Sheet Fiber Laser Cutting Machine 12kW- Year 2022
SPECIFICATIONS:
Performance
Max. XY speed 7716 ipm (196 m/min)
Accuracy ±.002” (0.05 mm)
Repeatability ± .001” (0.03 mm)
Working capacity

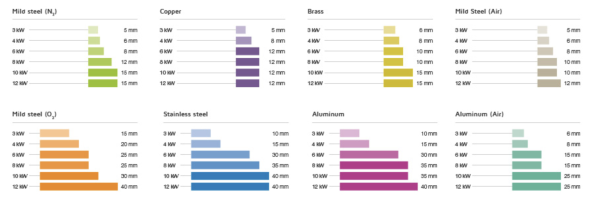

Machinable materials Mild steel, stainless steel, aluminum, copper, brass
Sheet dimensions
118” x 59” (3,000 x 1,500 mm)
Dimensions
Transversal configuration dimensions
Short side: 19.7′ (6 m)
Long side: 22.0′ (6.7 m)
Longitudinal configuration dimensions
Short side: 13.8′ (4.2 m)
Long side: 36.0′ (11 m)
12KW Fiber Laser System – Includes ProCutter Zoom 2 Cutting Head
Active Piercing & Cutting Process Control
Active Nozzle Change – 18 Position
Active Cut (Fly-out)
Lantek Expert On-Board – Allows Nest Modification at Machine

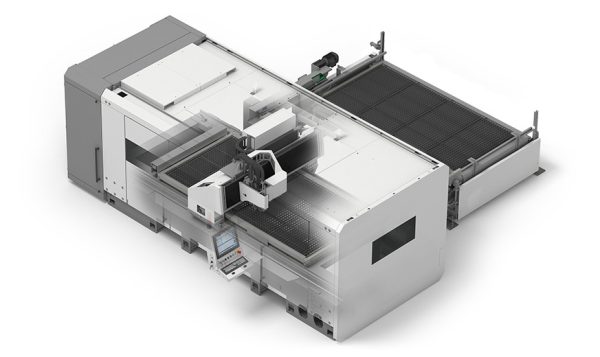

Longitudinal pallet shuttle configuration
Chiller – IPG Closed Loop Chiller – Provided laser resonator cooling
Precitec ProCutter Zoom Cutting Head
Active Speed – Optimization of cutting parameters
Active Focus – Automatic focus adjustment according to the workpiece material and thickness
Active Mail – Automatic machine notifications via email from production times, job completeness, as well as upcoming maintenance

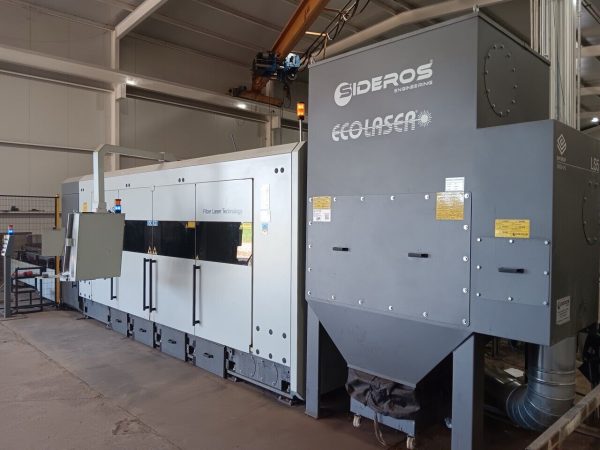

Dust collector – For fume extraction
Supporting grid, fume collection ducting and scrape management for cutting table
Assist Gas Filtration System
LS5 Technical Information
Performance
Max. XY speed 196 m/min
Accuracy ±0.05 mm
Repeatability .±0.03 mm
Working capacity
Machinable materials
Mild steel, stainless steel, aluminum, copper, brass
Sheet dimensions
3,000 x 1,500 mm
4,000 x 2,000 mm
6,000 x 2,000 mm
Dimensions
Transversal configuration dimensions
Short side: 6 or 7 m
Long side: 6.7 or 7.75 m
Longitudinal configuration dimensions
Short side: 4.2 or 6.3 m
Long side: 11 or 12.6 or 16.8 m
