Description

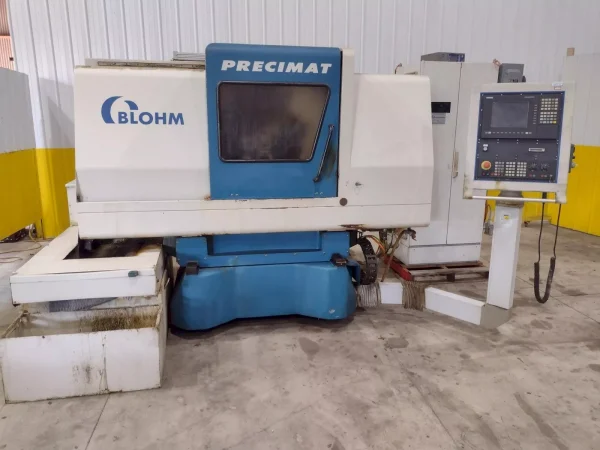

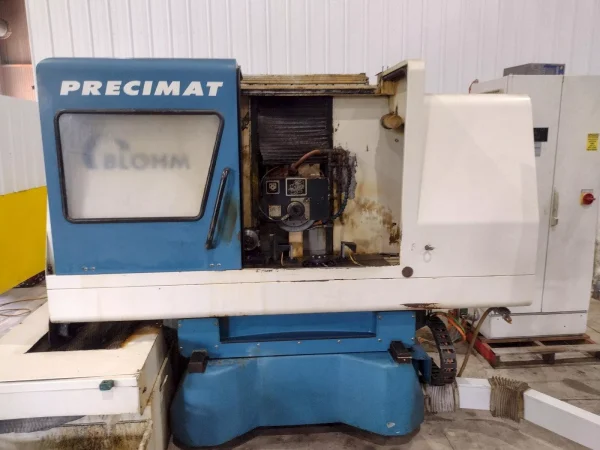

BLOHM PRECIMAT 306 CNC Surface & Profile Grinder – Year 2003
SERIAL …………. 15109
MODEL ………….. PRECIMAT 306
YEAR NEW ……….. 2003
CATALOG SPECIFICATIONS (PLEASE VERIFY):

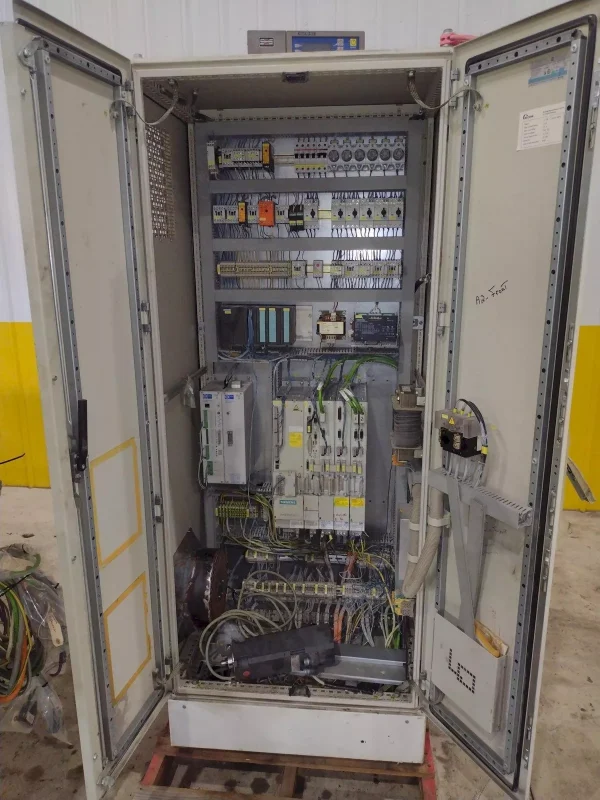

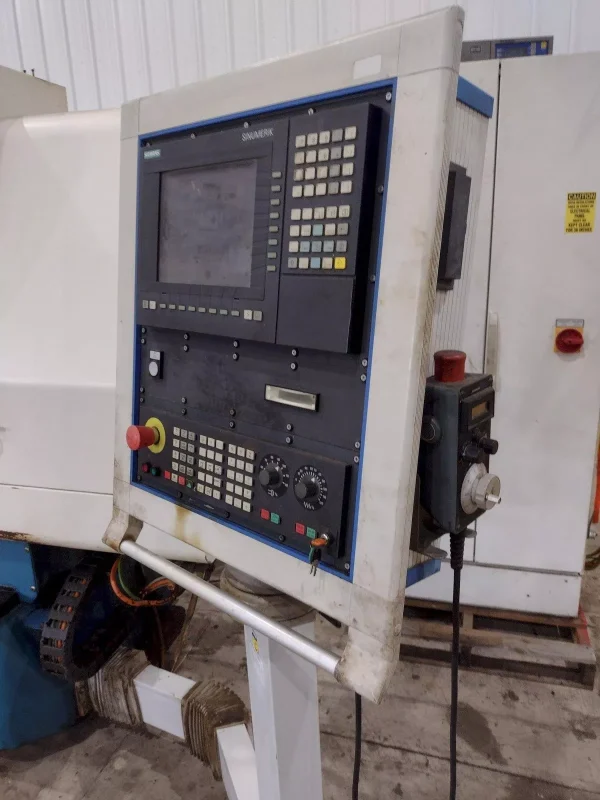

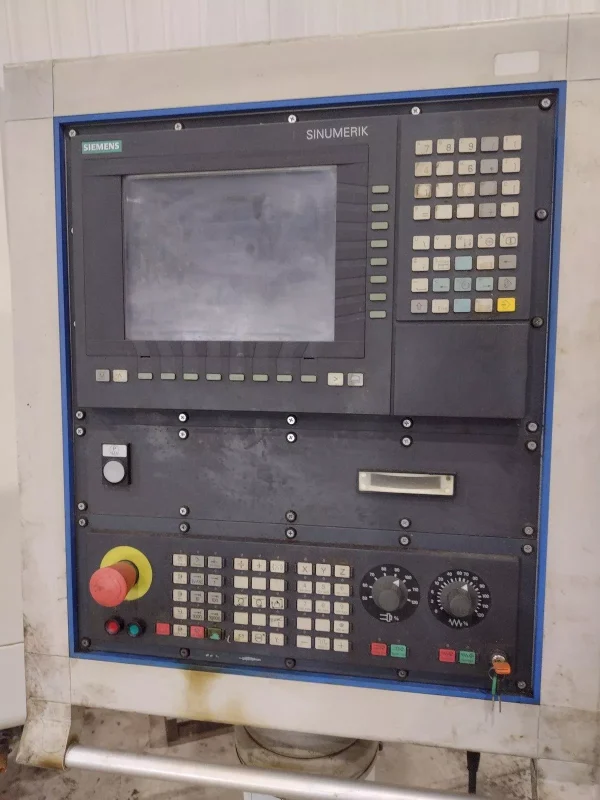

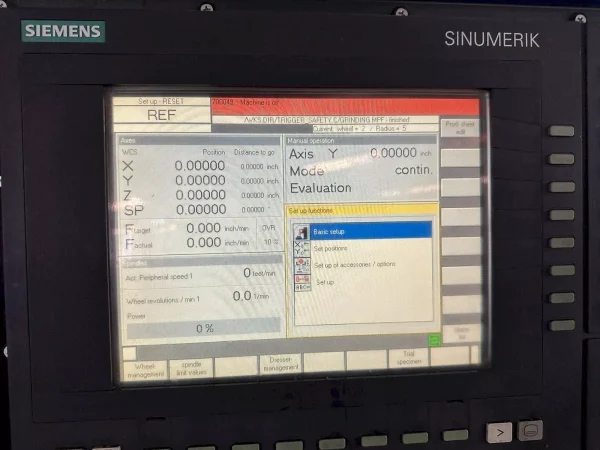

Seimens Easy Touch Simatic Multi Panel CNC Control
Surface, Creep Feed, & Profile Grinding Capability
Grinding Range 11.81″ x 23.62″
Table Clamping Area 39.37″ x 11.81″
Table Surface to Spindle Center 4.92″-22.63″

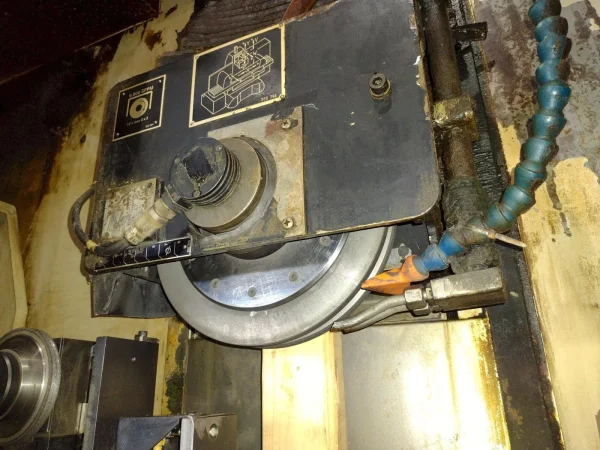

Grinding Wheel Size 11.81″ x 1.96″ x 3″
Grinding Wheel Speed 900 FPM
Grinding Wheel Motor 7.5 HP
X-Axis Travel 27.55″
Y-Axis Travel 17.71″
Z-Axis Travel 11.02″
Rapid Traverse, X-Axis 1.18″-1181 IPM
Rapid Traverse, Y-Axis 0.15″-147.63 IPM
Rapid Traverse, Z-Axis 0.15″-157.48 IPM
Dimensions, Machine (LxWxH) 102″ x 68″ x 90″
Approx Weight 8500 Lbs

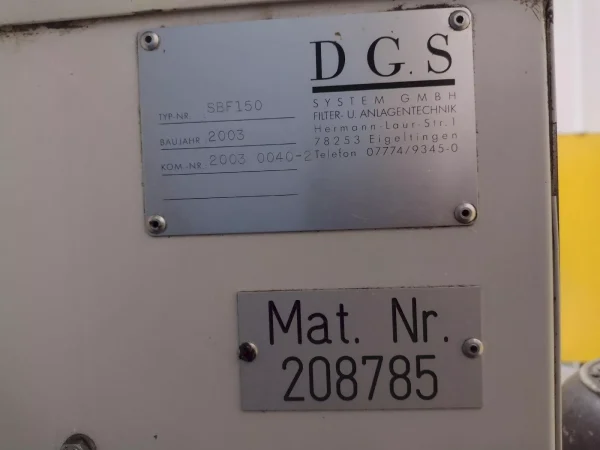

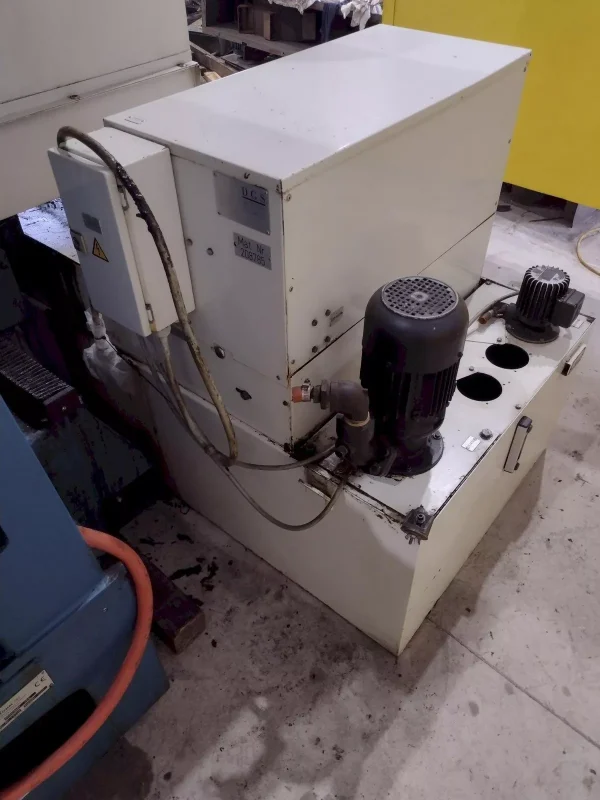

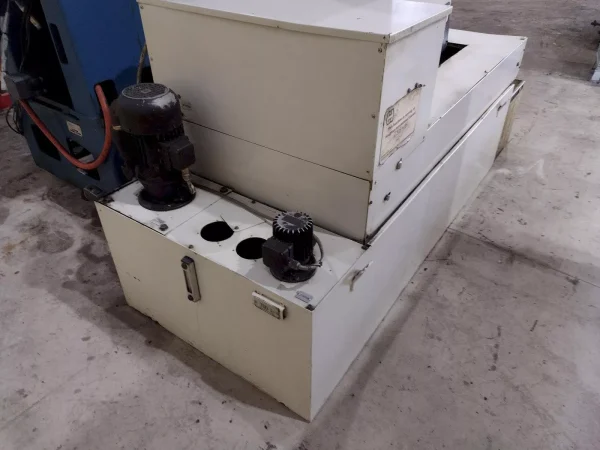

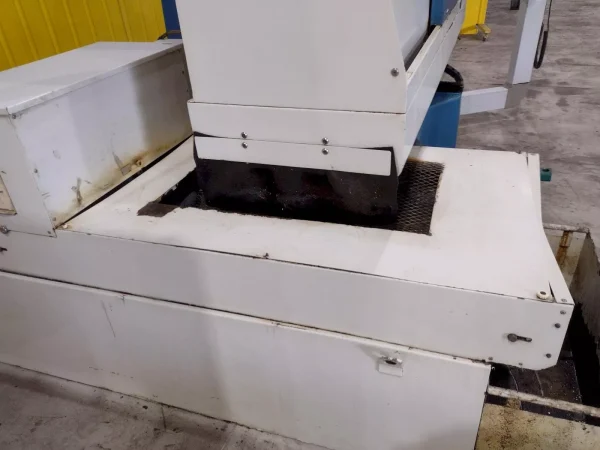

Includes: Paper Filtration Coolant System
