Description

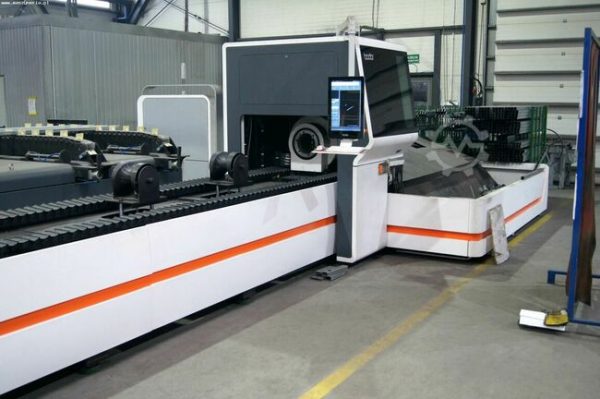

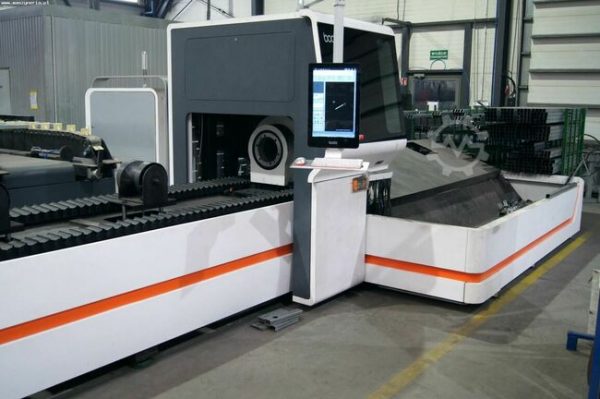

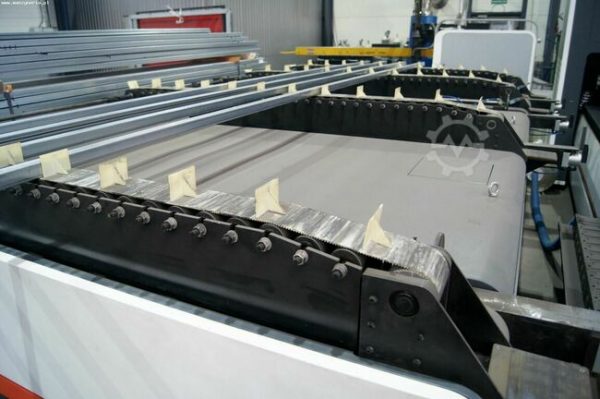

BODOR T6E Pipe and profile cutting laserwas built in 2018.
Guarantees the best cutting results.
It is equipped with a double cooling system, lubrication system and dust extraction system.
The laser cuts pipes and profiles with oxygen and nitrogen.
He has worked about 120 hours.

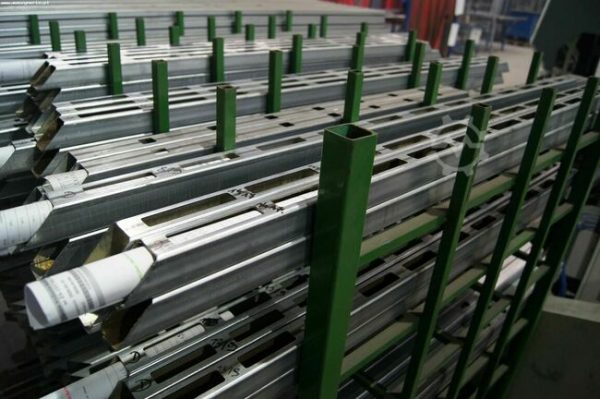

It is designed for effective cutting of round, square, rectangular, oval and other pipes with a special shape with a cutting length of up to 6 m.
Laser technical parameters:
source power: 750 W
maximum length of the fed tube: 6000 mm
minimum tube length: 2000 mm
maximum pipe diameter: 200 mm
minimum pipe diameter: 20 mm
maximum dimensions of a square profile: 140 x 140 mm
maximum wall thickness of the profile, cutting thickness: approx. 4-5 mm (depending on the type of material, the stainless steel to be cut will be thinner. Profile dimensions: from 20×20 mm to 140×140 mm, length 6000 mm)
minimum dimensions of a square profile: 20 x 20 mm
maximum profile weight: 20 kg / rm
maximum travel in the X axis: 250 mm
maximum travel in the Y axis: 6500 mm
maximum travel in the Z axis: 150 mm
maximum angle of rotation in the W axis: no limit n * 360
maximum rotation speed: in the W axis: 80 rpm
maximum acceleration in the X axis: 1G
maximum acceleration in the Y axis: 0.6G
maximum type of handle: electric
maximum load on the handle: 150 kg
protection class: IP54
machine power consumption: 16 kW
machine dimensions: 12000 x 4500 x 2400 m
weight: 4 600 kg
maximum axis positioning speed:
X axis: 40 m / min
Y axis: 0.5 m / min
Z axis: 30 m / min
repeatability of laser axis positioning:
X axis: +/- 0.03 mm / m
Y axis: +/- 0.03 mm / m
Z axis: +/- 0.005 mm / m
Laser components:
Front and rear fully servo driven electric chuck with 20-200mm clamping diameter
Bodor Genius laser head
French Schneider servo motor
Japanese NSK bearings
French Schneider electronic components
Japan SMC pneumatic components
Taiwan YYC rack
System of automatic lubrication of guides
Smoke exhaust system
Cypcut operating system
