Description

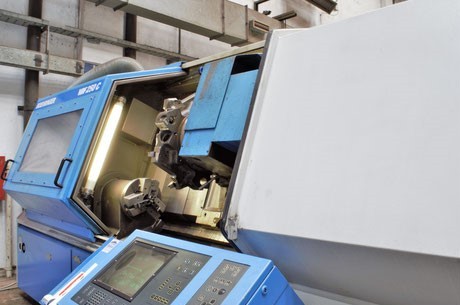

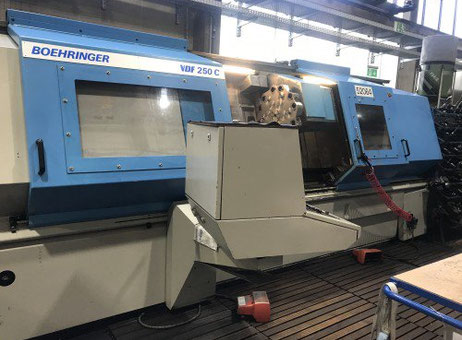

Boehringer VDF 250 C – Year 2005
Turning length | 3000 mm |
---|---|
Turning Ø | 350 mm |
Ø above the bed | 420 mm |
Number of tools on turret | 12 |
Number of rotating tools | 6 |
Tailstock | yes |
Bar feeder | no |
CNC control, Fabr. Siemens, type: Sinumerik 880,
max. turning length: approx. 3000 mm,
max. rotary diameter via bed cover, 420 mm,
max. machining turning diameter longitudinal: approx. 350 mm,
tool system: drum turret with 12 pieces of tool holders, of which 6 m. driven tools,
Tailstock: Pinole diameter: approx. 100 mm,
pinole stroke: approx. 100 mm,
inner cone holder SK-30, m. integrated chip conveyor,
automatic door shift and oil mist extraction
