Description

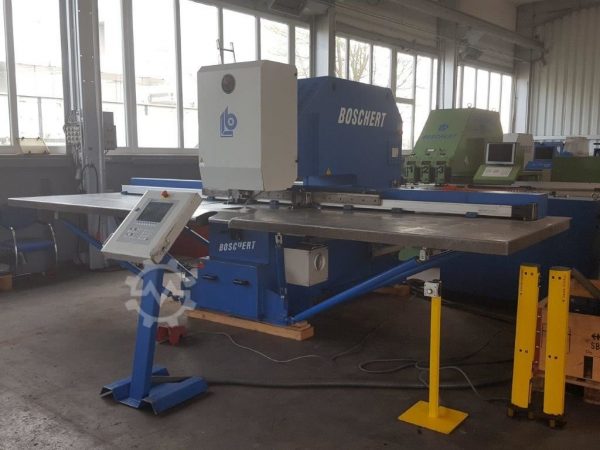

BOSCHERT ELP 1000 CNC Z – Year 2005
1 Boschert punching machine type ELP 750 x 1500 CNC Z
Year of construction 2005
ready to use equipped with:
TRUMPF quick tool change system
Extremely short changeover times
Use of all Trumpf punching tools
Material clamping with clamping tools

incl .: standard accessories:
2-axis CNC control Labod with graphics
Travel paths “x” 0 – 1500 mm
“y” 0 – 750 mm
– Max. Positioning speed 60/60 m / min.
– Repeatability 0.1 mm
– With 2 guides left and right of the tool holder
– infinitely variable feeds
– Manual sheet guiding despite the collets through the stop sheet to be clamped;
– ideal for small parts and edge processing
Including automatic adjustment device for moving the collets
up to the maximum sheet size x-9999 mm.
Control:
CNC control type LABOD with graphics
The machine is equipped with a path control specially tailored to the ECCO Line
fitted.

This control enables shortest production times even for single pieces.

Control features:
– Screen control with great operator guidance and graphics
– Simultaneous operation of the axes with additional priority switching
– Automatic reference procedure
– Tool list for 500 tools can be called up directly from the program with graphic
Representation of the form
– Additional software limit switches
– Automatic overlap monitoring
– Automatic cutting force monitoring

Available functions:
– Single hole – subroutines
– Row of holes – Repeat image
– Bolt circle – notch
– nibble circle – hole-free zone
– Rectangular burst – ellipse
– Matrix V-belts
– nibble slot – mirror
– Zoom – remove waste
– Contour program, only in connection with rotation

With this control, large-format sheets are also continuously programmed, whereby the control automatically selects all punchings with the same tool in automatic mode and also calculates turning and turning functions for the optimum punching process.
The program can also be run on any IBM compatible computer, so there are no extra costs for external programming.
The storage capacity is practically infinite thanks to a floppy disk drive;
direct access to the programs is possible at any time.
It is also possible to duplicate programs and thus modify existing programs without deleting the original program.
Stroke and piece counters are standard equipment.

Technical specifications:
Punching force: approx. 400 kN (40 tons)
Punch arm projection: approx. 750 mm
Max. Punching diameter: 105 mm or any shape within 105 mm
Max. Sheet thickness: 10 mm (pliers opening)
Max. Lifting height: 40 mm up and down infinitely adjustable or shortenable via limit switch

Strokes: up to max. 280 strokes per min.

Table width left + right: 1800 mm each
Table depth: 1800 mm
Table height: 900 mm
Overall width: 3600 mm
Overall depth: 2600 mm
Overall height: 1900 mm
Drive power: 10 kVA
Machine weight: 7000 kg
Hydraulic oil filling: 50 l
Color: blue RAL 5017
2 stroke types – setup stroke + punch stroke
including all necessary safety devices

Accessories for EL CNC Z:
1 set of die wipers
Sizes I and II fast-stretching
1 scraper intermediate plate
1 punch slug suction device

Special features of the machine are:

– Use for nibbling, punching and forming
– compact dimensions
– Overload protection
– Stroke release with freely movable foot pedal
– robust construction
– easy programming in German
– Processing of material up to 6mm thick.
– clear, simple machine concept without “gimmicks”, therefore extremely
little downtime
– The entire machine is absolutely maintenance-free.
– automatic monitoring of the clamp position
– Automatic detection of the safety area of ​​the tines, according to the scraper selection.
– Small parts can be processed easily using the included angle bracket.
– Extremely stable guidance of the cross slide on 2 simultaneously driven, double guided ball screws, thereby highest repetition accuracy.
– Active and passive scraper system.
– 40 mm stroke length can be freely adjusted, which means a large regrinding length and the possibility of processing already folded sheets.
– Highly precise repositioning by clamping the sheet on the machine table. The pliers always move freely during the repositioning process to prevent the sheet from moving.

The tool system:

– Use of the widespread and inexpensive Trump tool system.
– Free adjustment of the tools in any shape position possible.
– Short-term availability of all punching tools, including special forming tools and forming tools.
– Particularly short tool change times of 10-15 seconds possible without any problems
