BRANER Slitting Line 36 X 150000 lb Capacity
6″ X 5”, BRANER SLITTER, 15 HP, PAYOFF, SCRAP WINDER, RECOILER
MANUFACTURER BRANER 15000 LB CAPACITY
LINE CONSISTS OF THE FOLLOWING;

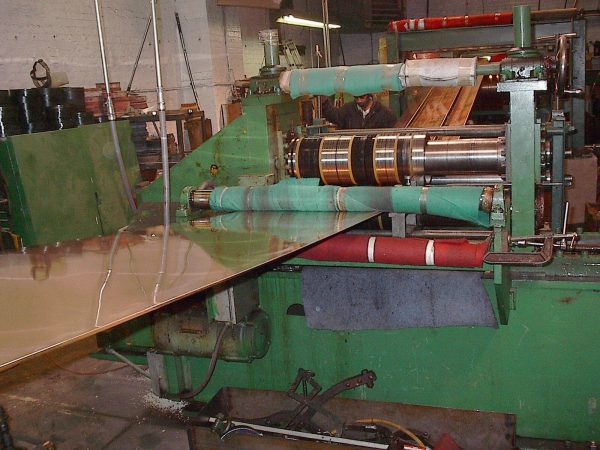

(1) BRANER SLITTER HEAD AND BASE
ARBOR
-FACE WIDTH 36″
-DIAMETER 5″
KNIFE DIAMETER 10 1/2″ – 11″
DRIVE MOTOR 10/15 HP 400/1600 RPM DC
UNIT IS COMPLETE WITH 1 PAIR OF GUIDE ROLLS,
1/2″ FACE EXIT BILLY ROLL

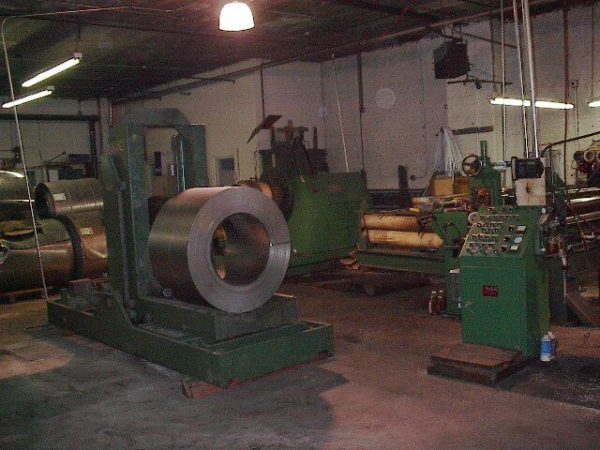

(1) BRANER PAYOFF WITH COIL CART COIL TIPPER COMBINATION
MANDREL SIZE
-DIAMETER 16″
-FACE WIDTH 36″
MAX COIL O.D. 72″
UNIT IS COMPLETE WITH HYDRAULICALLY ADJUSTABLE BASE AND MANDREL EXPANSION WITH A 5 HP 1755 RPM HYDRAULIC POWER PACK AND AIR BRAKE.
(1) SCRAP WINDER
DRIVE MOTOR FOWARD & REVERSE FEED UP DRIVE

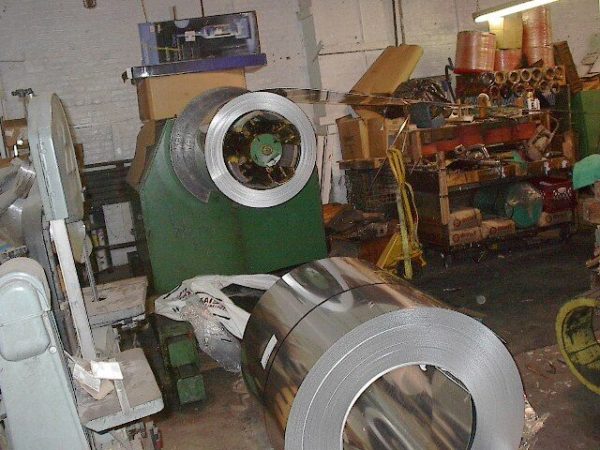

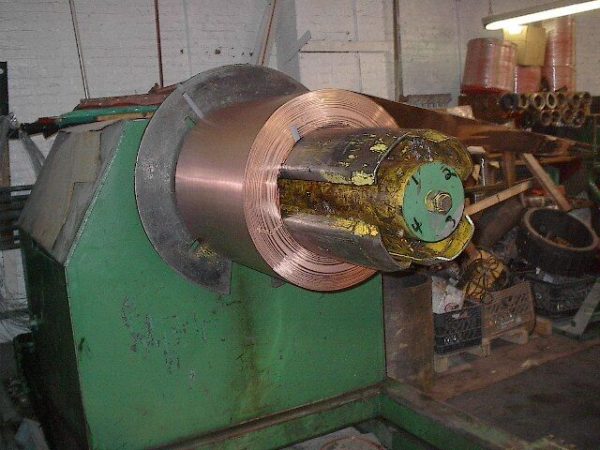

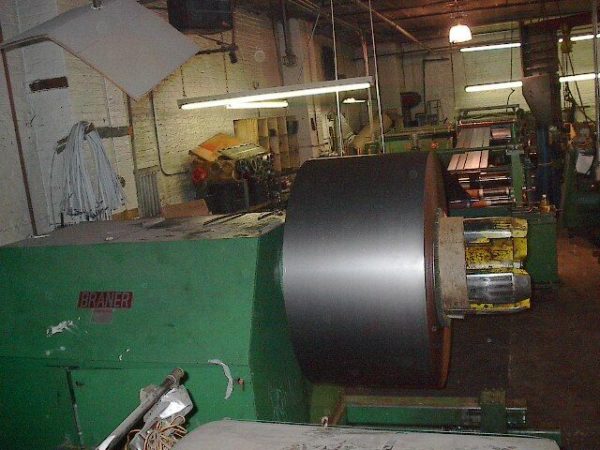

RECOILER BRANER
16 ID HYD EXPANSION PUSH OFF OVERARM SEPERATOR
40 HP DRIVE
2 ARM TURNSTYLE
COMPLETE LINE UNDER POWER
