Description

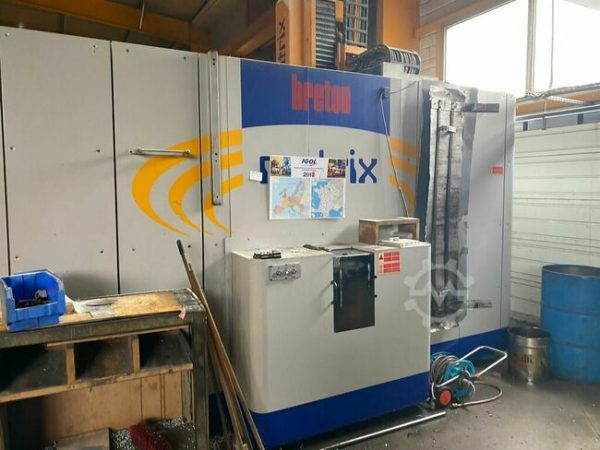

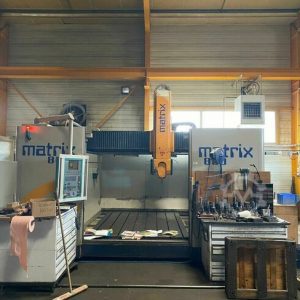

Breton MATRIX 800 K25/2T – Year 2001
A milling machine
Brand BRETON
Type MATRIX 800 K25 / 2T

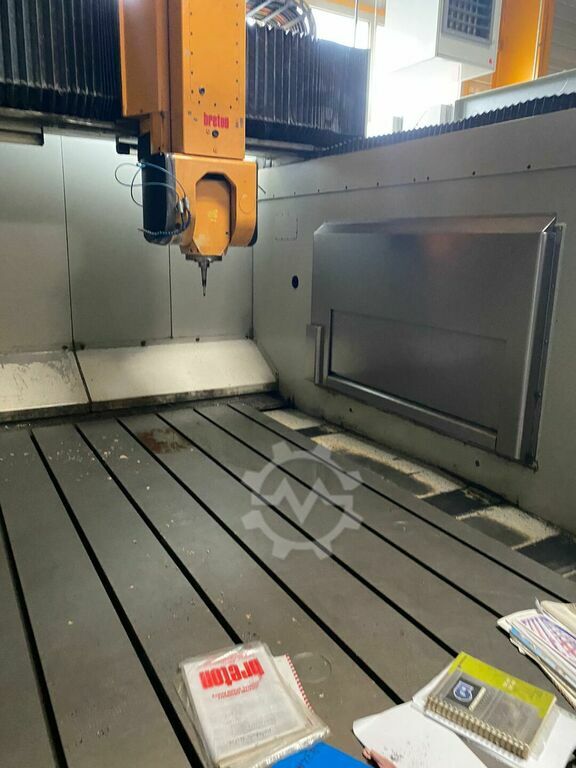

Working area with vertical chuck
X2000 Y2500 Z800 mm
Working area with horizontal chuck
X1600 Y2100 Z800 mm
Distance between vertical chuck nose and work surface with Z axis at the bottom 200 mm
Axis stroke,
Y axis chuck carriage movement 2000 mm
X axis beam movement 2500 mm
Z axis movement sleeve and mandrel 800 mm
C axis rotation A axis group 0-360
Axis A rotation of electromandrin group +105
High speed axes
Y axis 40 m / min
X axis 40 m / min
Z axis 20 m / min
Axis A 12 rpm
Tool holder type HSK-A63 / E63
Power 20KW
Maximum Torque 38nm
Maximum tool rotation revolutions 24000
Tool store 24
HEIDENHAIN digital control
Year 2001
Brooch change in 2012
Machine in good working
