Description
Bühler Leybold Optics SYRUS 1350 LC III Ophthalmic Optical Coating Machine with Cryochiller
This advanced system, recently removed from a leading optical lens manufacturing lab, is in exceptional working order. Manufactured in 2020, it has plenty of life left and comes equipped with several valuable extras. Whether you’re expanding your lab or upgrading existing equipment, this system is an excellent investment.
Key Components Include:
Control Cabinet: SYRUS LCIII
Water Vapor Cryopump: Polycold PFC-1102 HC (PN: 700201-42-60)
Vacuum Pump with Booster: Busch R5 URA0305.D5Z6.1003
2x Muco DRG 1.6 Transformer
DRG 2.5 Transformer
Temperature Control Unit: Regloplas 90S/6/TS22/1 K/RT32
Temperature Control Unit: SELLA MXH 404E-S XAN119ML05
Temperature Control Unit: SELLA SA 6/0/MXH404+MIX XAS116ML02
Condition:
Cosmetic Condition: The system is in good condition, with only minor scuffs, scratches, and blemishes from previous use.
Operational Condition: Fully functional and ready for immediate use.
Additional Information:
Photos are of the actual unit for sale. Additional photos available upon request.
Local inspection is welcome.
Shipping & Delivery:
The system is in stock and ready to ship.
We can arrange a dedicated delivery service or work with your carrier for convenient loading.
Parts and Accessories included:
Parts Included:
Cabinet: SYRUS LCIII (this is an upgraded cabinet)
Eaton 9SX 1000 UPS
Beckhoff C5240 Industrial PC
Buhler LOOA-10759-001 Power Supply
Buhler LOOA-11214-001
Buhler LOOB-12236-001
Polycold PFC-1102 HC (pn: 700201-42-60) Water Vapor Cryopump
Busch R5 URA0305.D5Z6.1003 Vacuum Pump w/ Booster
BRP 1250 A 0305 ZX (pump)
WP 1250 D 2V3 ZZZZ (booster)
3x Oil Filters Leybold EK96006
SELLA MXH 404E-S XAN119ML05 Temperature Control Unit
SELLA SA 6/0/MXH404+MIX XAS116ML02 Temperature Control Unit
2x Muco DRG 1,6 Transformer
Muco DRG 2,5 Transformer
Regloplas 90S/6/TS22/1 K/RT32 Temperature Control Unit
2x rolls of metal tubing, one labeled LONT-15875-001 Oszillator OSC-100B
Buhler Carrousel Motor Laipple M63a4 w/ NMS30 Gearbox
Satishloh 92-005-180 Satis Filter
3x LOOA-10803-001 O-Ring 1853×8 102105885
2x O-Ring Satisloh 1577×10 50-900-455
3x unmarked O-rings
Honeywell F76S1049 Water Filter
KH1098 722C-050-580-BE Gas Regulator
KH1095 722C-050-540-BE Gas Regulator
2x REG HBS 200-3-2,5 Gas Regulator
Schneider Optical 627-70-218 Welding Protection Glass
Brooks 5850E 5850EC4BE4LB2A Flow Controller
Gould M100V3VB96012 Spare Chiller Ball Valve
EGE SDN 11306 Flow Controller
Granville Phillips 392401-0-YK-P Vacuum Gauge
Chamber Glass Porthole Spare Glass
LOLB-11785-001 WC45DU 48x74x2 10pc Thrust Washers
LONT-19257-001 MB 4530DU 5pc Bushing
5x LOOA-14389-001 Arm Right 1.4301
4x bolts w/ wingnuts aprox 12in
Box w/ mount and bolts for eH Sidewinder Ion Source
2x LOLP-11536-001 Gasket Set for valve DN160
3x 102128508 Anode
LONT-18676-001 Anode thermal transfer sheet 42663-24
10x 426663-24
2x LONT-18675
20x Swagelok SS-8-VCR-2-GR VCR Face Seal Gasket
1x 426663-9 80345336 RD-19-C-05 Ins, Pole Piece, Mark II +
3x LOOA-11111-001 Gas – Distibutor, graphit
LONT-18688-001 Power cable anode (female)
2x LONT-18687-001 Output connector sputter cathode
2x LOOA-11105-001 Pole piece insulator
REL-MR-24DC/1IC relay 2961341
4x LOST-10517-001 Insulator 10-32M
4x Insulator, Male No. 10(2) 10-32M
LONT-18352-001 Hex nut M2 23pc
426663-21 C Conn, Anode power, M, Mark II +
426869 Screw, SS, 2-56x.375 Slotted pan head AU 16pc
LONT-18689-001 Standoff insulator anode stack
LOOA-10279-001 protective sheet for HPE6
0201-SS-502 Hex Nut, SS, 2-56 15pc
2x LOOS-22159-001 Ion Source Gas Line
LONT-18734-001 Bellow hose w/ adapter both ends DN6.0
LONT-18397-001 O-ring 100×5 FKM 70 Shore 7pc
LONT-18670-001 O-ring 260×3 FKM 70 Shore
LONT-13951-001 O-ring 105×5 FKM 83 Shore
LONT-10432-001 O-ring 28.3×1.78 FKM 70 Shore 2pc
LONT-10081-001 O-ring 42×5 FKM 70 Shore 10pc
LONT-18210-001 O-ring 45×3 FKM 70 Shore 4pc
LONT-16277 O-ring 2pc
LONT-18397 O-ring
LONT-16277-001 O-ring 75×5 FKM 83 Shore 3pc
LONT-10077-001 O-ring 18×5 FKM 70 Shore 17pc
LONT-10152-001 O-ring 158.1×5.33 FKM 75 Shore 15pc
2x LONT-18647-001 Set of seals for DIP 20000
LONT-19186-001 lip seal 10×15 L=2130 NBR 60
LONT-13476-001 O-ring 48×5 FKM 70 Shore 3pc
LONT-13914-001 O-ring 55×5 2pc
LONT-10431-001 O-ring 17.04×3.53 Vi563 70 Shore 2pc
LONT-18121-001 O-ring 55×4 NBR 70 Shore
LONT-18127-001 O-ring 305×5 FKM 70 Shore
LONT-18160-001 GN 615-M 5-KN 21pc
LONT-10156-001 O-ring 56.87×1.78 FKM 70 Shore 2pc
LONT-18728-001 Safety Coupling 2pc
LONT-18731-001 Free wheel bearing 2pc
LOOA-10337-001 Stab
LOOA-11337-001 Shaft with shoulder 2pc
LONT-18730-001 Bearing, Dry Sl. Mb 0810 Du 2pc
LOOA-10711-001 vacuum feedthrough to gas cpl
LONT-16986-001 21x30x2 flat gasket 6pc
102059884 Zyl-Shr M8x16 DIN 6912 CUNI1.5SIF60 4pc
Binder 9920141005 M16 Female Connector
LONT-14540-001 M6x30 Screw 2pc
LONT-18092-001 parallel pin 6m6x28 DIN 7 SS (door) 2pc
LONT-10164-001 M6x20 Screw 6pc
LOOA-11336-001 Disc (washer) 2pc
LONT-18726-001 Disc (washer) 2pc
LONT-18351-001 Spring Disc 4,75×2,36×0,25×0,38 1.4301 19pc
42360293 Holder f. shudder 5pc
Bag of misc fittings and screws
Buhler Crystal Head (no identifying marks) w/ small box of spare parts
Operating instructions for Regloplas
Operating instructions for Busch vacuum pump
Operating instructions for Schneider power supply
Technical Documentation for SYRUS 1350
Technical Documentation for Upgr.SYRUS 1350(P4625)
Binder w/ labels and electrical diagram for Upgr.+K1
Inficon Thin film instrument and sensor Manuals CD
2x LONT-18456-001 Micro-Ion 354
5in Vacuum tube
Inficon PSG500-S
DB9 Serial cable
Schneider LC1D09G7 Contactor
LONT-18690-001 cable for Mark II +
UNN-14028-004 Retaining ring 8×0.8 2pc
LONT-18212-001 O-ring 86×3 FKM 70 Shore
LONT-16277-001 O-ring 75×5 FKM 83 Shore 2pc
LONT-18209-001 Quad ring 19,60×24,84×2,62xM-19 FPM 70 6pc
UVN-56001-047 Deep groove ball bearings 6000 2Z 6pc
LOOA-10319-001 socket head cap screw M4x6 DIN 912 SS 2pc
LONT-18733-001 Microswitch
102096404 Bearing for crucible plate
2x LONT-18234-001 Safety coupling KBK7BK-SG-10
6x 102130047 Gas distributor
2x large fixtures that look like fans with 6 blades
426663-9 Insulator pole piece Mark II+ 3pc
0201-SS-502 Nut,SS,2-56,HEX 3pc
427072 Washer,SS,FLT,.089I.D.x.187O.D.x.031 T 3pc
426663-27 SHT,Thermal Transfer,Gas,Dist,Mark II+
IS16637 Gas Distributor
426871 Screw,SS,10-32×1.938,SHCS,AU 2pc
426869 Screw,SS,2-56x.375 SLTD PAN HD AU 3pc
04-FL Washer,SS,FLT,.220D x .115 x .016T 3pc
0201-SS-718 Washer,SS,FLT,.440D x .202 x .030T.PREC 2pc
426663-24 SHT,Thermal Transfer, Anode, Mark II+
426663-25 SHT,Thermal Transfer, H2O PLT, Mark II+
LOOA-11324-001 SF-CuF25 protective hood bottom
2x unidentifiable circular plates, one marked Veeco Mark II+
Large fixture with 5 shelf/arms
1 Pallet of flat gray metal parts, no markings on any.

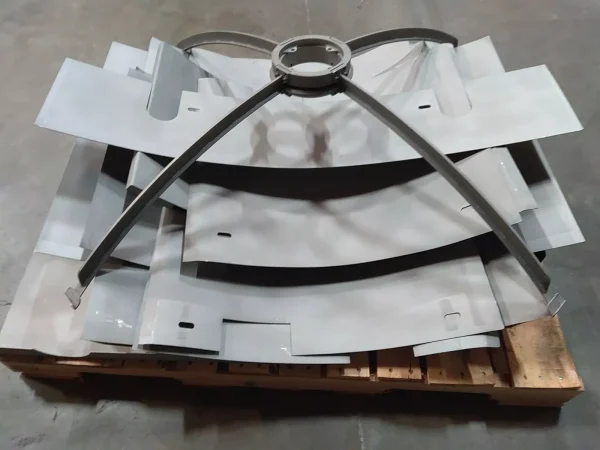

1 Pallet of flat gray metal parts, semicircular sheets, circular part with 4 curved legs
Large vacuum tube
2x large boxes of rings, various sizes
Wypall wipers stand
11x semi circular flat gray metal parts w/ holes
1 Pallet of flat gray metal parts, metal sheets, 4x pink colored small circular parts
Hammond Power Solutions HPS Sentinel 211718 Transformer, 480V to 400Y/231V 500kVA
