• BYFAMA MJT-W3-320 – Year 2020

    Contact us for price

    Category:

    Description

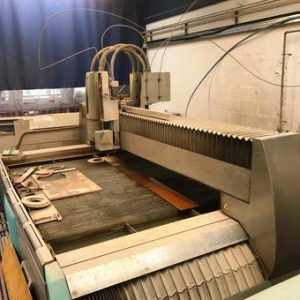

    BYFAMA MJT-W3-320 – Year 2020
    HIGH PRESSURE WATER CUTTING SYSTEM
    Cutting size (mm.) CNC – 3 axes – Bridge type 3000×2000 x250
    CNC control unit 3-axis control unit
    Ethernet and network interfaces, USB port
    Additional handwheel (X, Y, Z)
    X axis motor 1 pcs. Set of servomotors 1,5 KW
    Y axis motor 2 pcs. Set of servomotors 1,5 KW
    Z axis motor 1 pcs. Set of 0.75 KW servomotors with brake
    Helical gear system Hardened gears and pinions
    Linear bearings Linear guides and rails
    Step accuracy 0.01 mm
    Fast rotation speed 30.000 mm / min
    CAM Manual/Automatic Nesting Available / Automatic Input-Output System
    HIGH-PRESSURE WATER PUMP
    Model MJT – 4000
    Design pressure 4000 bar
    50 hp engine

    Motor speed 1500 rpm – 50 Hz-60 Hz
    High pressure flow 2.3 – 3 Lt/min.
    Hydraulic pump 71cm3 (103 Lt.)
    Hydraulic axial piston pump Max. 200 bar
    Cooling water flow 30 litres / min.
    Optimum water inlet pressure 4 bars
    Water pump with pressure control 8-10 bar
    External dimension H = 1220 mm
    W = 1040 mm
    L = 1830 mm
    Orifice diameters 0.18 0.25 0.30 0.35 mm
    ABRASIVE TANK
    Max’s sanding tank. 350 kg
    Working pressure 6 bar
    Sand dosing system regulated from the CNC unit by means of a belt meter

    SAND DOSING SYSTEM – CUTTING HEAD AND MIXING CHAMBER
    Sand flow 80 – 600 gr / min.
    MJT – 4000 4000 BAR – 50 KM – HIGH PRESSURE WATER PUMP
    STOP TABLE Size 3000×2000 x 250 mm
    ABRASIVE TANK INTELLIGENT HARVEST
