Description

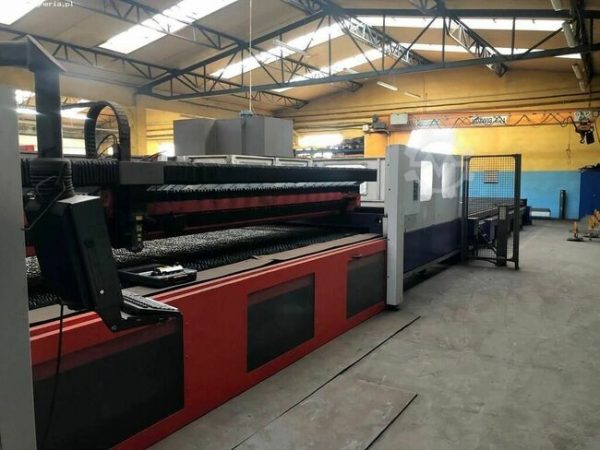

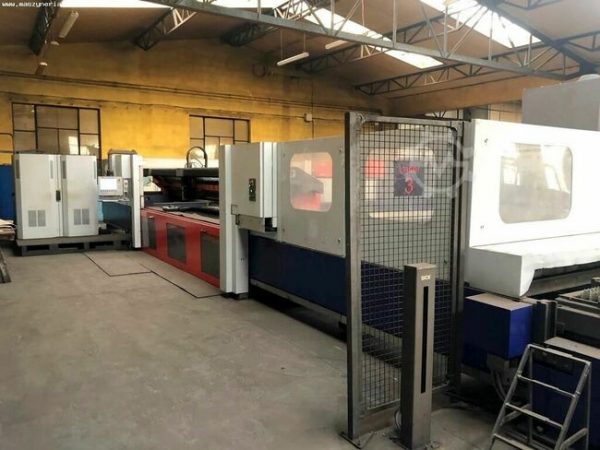

BYSTRONIC BYSTAR 4025 NT 80 built in 2004
Laser cutting machine with a capacity of 4.4 kW
Technical parameters :
power: 4.4 kW
CNC control: CNC 96 PLUS
number of machine hours: 75270 h
number of working hours of cutting: 50352 h
nominal sheet dimension: X = 8000 mm, Y = 2500 mm
maximum positioning speed parallel to the X, Y axis: 60 m / min.
maximum sheet thickness, steel: 20 mm
maximum sheet thickness, stainless steel: 10 mm
maximum sheet thickness, aluminum: 8 mm
heads: 5 in, 7.5 in
