Description

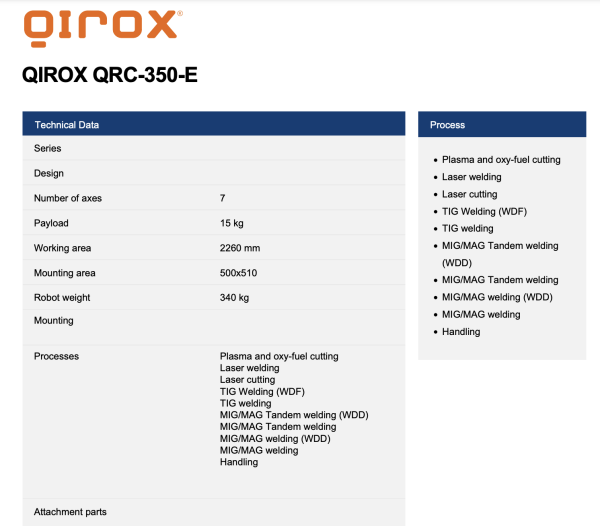

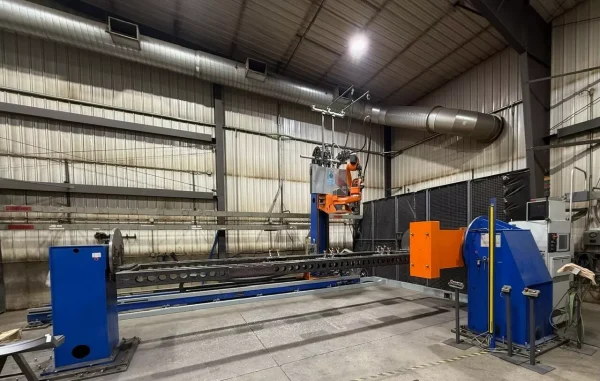

Carl Cloos Schweisstechnik QIROX QRC-350-E Column Welding Robot Cell 7-axis

Number of axes 7
Payload 15 kg
Working area 2260 mm
Mounting area 500×510
Robot weight 340 kg
Mounting
Processes Plasma and oxy-fuel cutting
Laser welding
Laser cutting
TIG Welding (WDF)
TIG welding
MIG/MAG Tandem welding (WDD)
MIG/MAG Tandem welding
MIG/MAG welding (WDD)
MIG/MAG welding
Handling

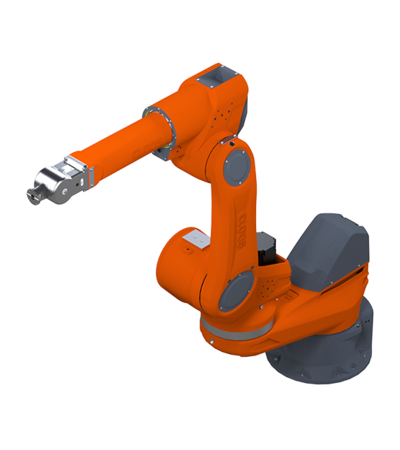

Cloos QIROX QRC-350-E
6-axis robot mechanics with classic wrist, 3,500 mm working envelope and extended range by seventh robot axis

Cloos QIROX QRC-350-E of the WL series with classic wrist and seventh robot axis

The Cloos QIROX QRC-350-E is a six-axis articulated arm robot with an eccentric axis 7 which is integrated between robot base and centre point of axis 1. The robot is used in upright or overhead position and is mounted on a base or directly at a robot positioner. The QIROX QRC-350-E has a classic wrist where welding torches, flame cutters and other working tools with a weight of up to 15 kg can be mounted. The integration of a changing tool on the wrist allows the application of more processes with a robot.

All-rounder: Carries out many different task due to the use of a changing tool and a maximum payload of 15 kg at the wrist
Processes: Takes over all MIG/MAG and TIG welding processes, optionally leads a laser sensor and carries out cutting tasks
Flexibility: Modular design for tailor-made systems, perfectly adapted to individual production requirements
Range: Seventh axis for increasing the working envelope and optimum positioning of the welding torch
Quality: Repeatability, long service life and maintenance intervals
