Description

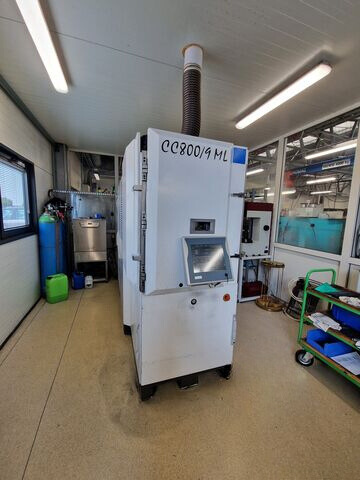

Cemecon CC800/9 ML PVD Coating Machine – Year 2015

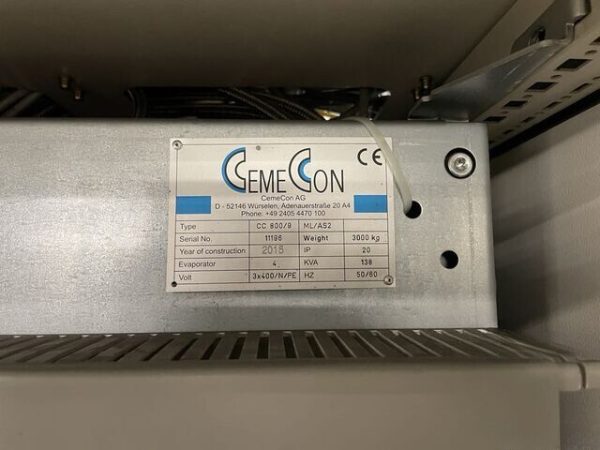

Manufacturer: Cemecon
Model: CC800/9 ML
Machine number: 11196
Year of construction: 2015
Condition: excellent (used)
CemeCon’s CC800®/9 ML with DC spray technology is particularly flexible and versatile. It easily and quickly coats all nitride, boron and carbon-based coating materials. It is an economical system for medium quantities and frequent batch changes and coating materials. Due to its high flexibility, the CC800®/9 ML series has proven itself in research and development. The modular, open design allows the unit to be equipped with many extensions and options, such as measuring devices.
Features
Shell space, Ø xh (mm) Ø400×400
Substrate table, Ø x Ø satellites x number of satellites (mm/piece) Ø400 x Ø130 x 6
Cathodes (pieces/mm) 4 x 500 (DC)
Maximum substrate dimensions Ø xh Ø400×800
Drill diameter 6 mm x 60 mm (piece) 1800
WSP capacity, 12.7 mm x 3.5 mm (piece) 4920
Loading (KG) 250
Coating rate µm/h 2 µm/hr.
Electrically conductive layers Yes
Electrically non-conductive layers NO
Electrically non-conductive substrates NO
Connected load (kVA) 135
External dimension mm (W x L x H) 1050 x 3350 x 2200
Spraying with booster technology. All known DC CemeCon coatings are possible.
On 10 mm cutter, full load, 3 rotations.
Technical condition of the machine:
The machine is fully operational, there is no need for service at the moment. During the use of the machine over the years, the heaters and electrical systems were replaced, as well as the bearing of the rotary tool basket.
