Description

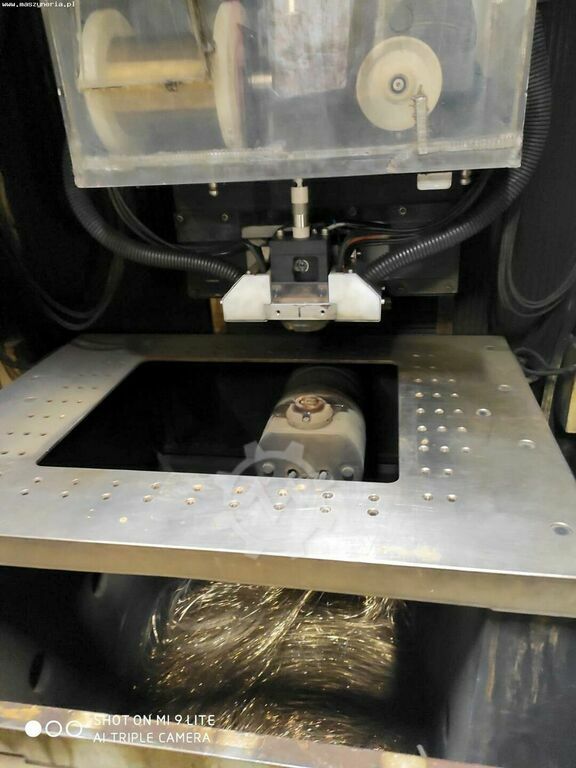

The wire EDM machine CHARMILLES ROBOFIL 390 was built in 2003 in Switzerland.
Technical data of the wire EDM machine:
X axis travel (longitudinal): 400 mm
travel in the Y axis (transverse): 300 mm
cutting height: 250 mm
possibility of cutting at an angle, UV axis + -15 degrees
wire diameter: 0.1-0.3 mm (0.25 mm wire guides are currently installed)
size of spools: maximum 8 kg
4 kW power
dielectric, distilled water, deionized sprayed water
dielectric tank, capacity: 120 l
water cooler
external dimensions of the machine (length x width x height): 2 x 2 x 2.10 m
machine weight: approx. 2 t
