Charmilles Roboform 40 – Year 1993
Description

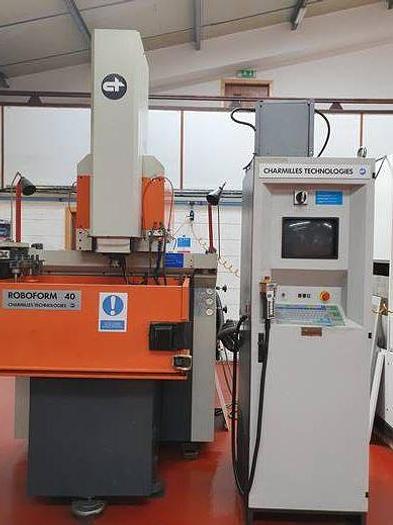

1993 Charmilles Roboform 40 EDM Machine

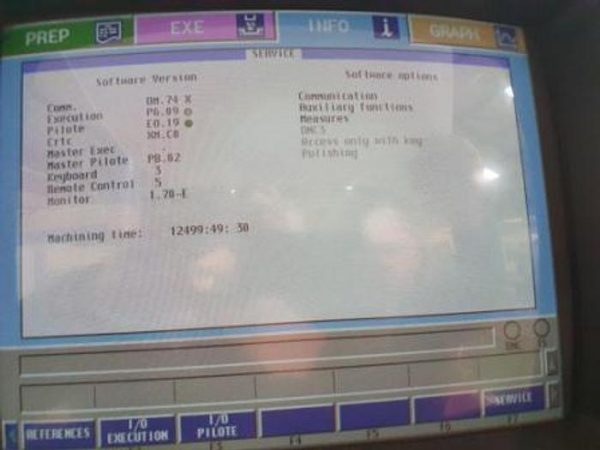

Year: 1993 Control: Charmilles Technologies Hours: 12,500 Tooling Type: Erowa Tool Changer: 6 Station
Travels
X: 500mm
Y:400mm
Z:450mm
C:360º
Table Dimensions: 750 x 500mm
Max Workpiece Weight: 1,000kg

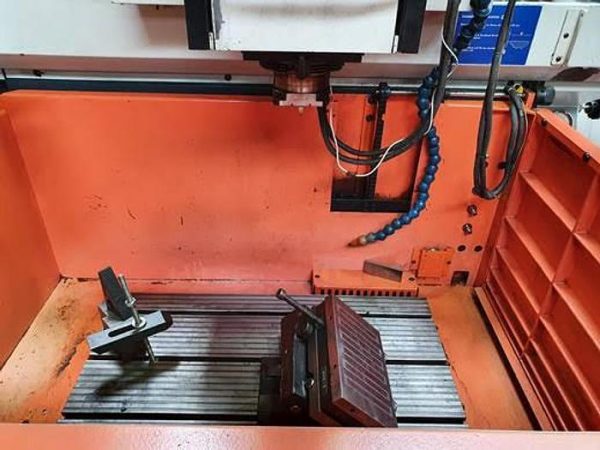

Work Tank Dimensions: 1220 x 795 x 465mm
Minimum Fill Level: 135mm
Maximum Fill Level: 425mm
Dielectric Tank Dimensions: 1,160 x 1,380 x 1,010mm
Dielectric Tank Capacity: 725L
Machine Dimensions (L x W x H): 2,300 x 1,560 x 2,850mm
Machine Weight: 3,340kg
Specifications
Manufacturer | Charmilles Technologies |
Model | Roboform 40 |
Year | 1993 |
Condition | Used |
Serial Number | 35068 |
Hours | 12,500 |
Year | 1993 |
Control | Charmilles Technologies |
Tooling Type | Erowa |
Tool Changer | 6 Station |
Travels (X) | 500mm |
Travels (Y) | 400mm |
Travels (Z) | 450mm |
Travels (C) | 360º |
Table Dimensions | 750 x 500mm |
Max Workpiece Weight | 1,000kg |
Work Tank Dimensions | 1220 x 795 x 465mm |
Minimum Fill Level | 135mm |
Maximum Fill Level | 425mm |
Dielectric Tank Dimensions: | 1,160 x 1,380 x 1,010mm |
Dielectric Tank Capacity | 725L |
Machine Dimensions (L x W x H) | 2,300 x 1,560 x 2,850mm |
Machine Weight | 3,340kg |
