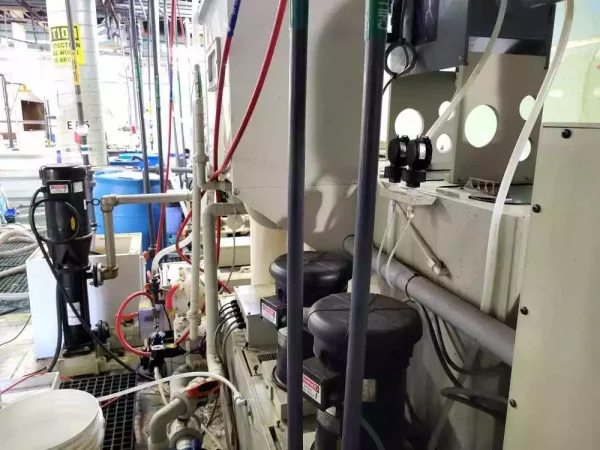

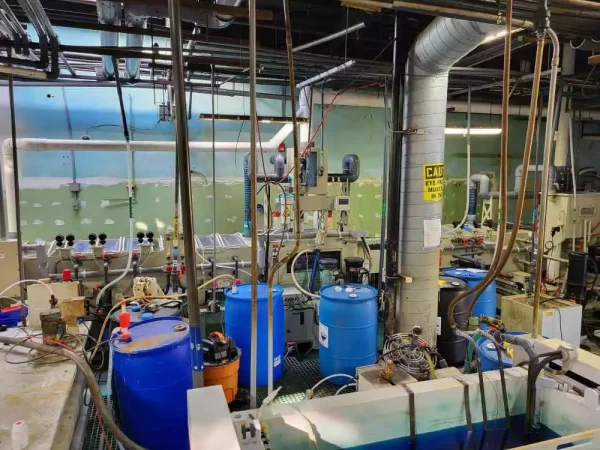

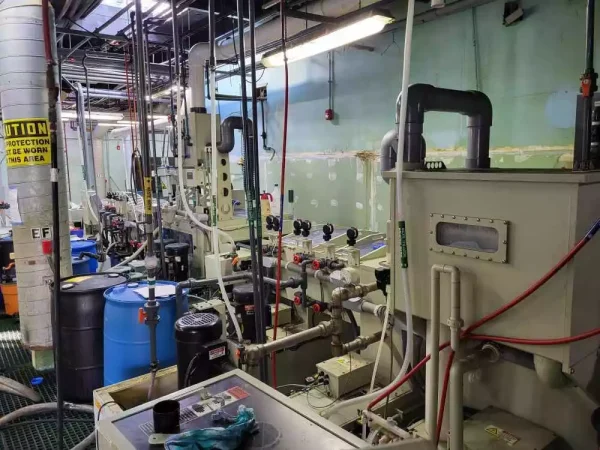

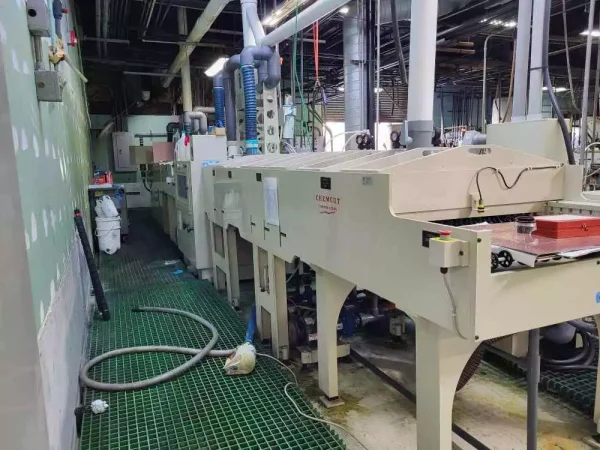

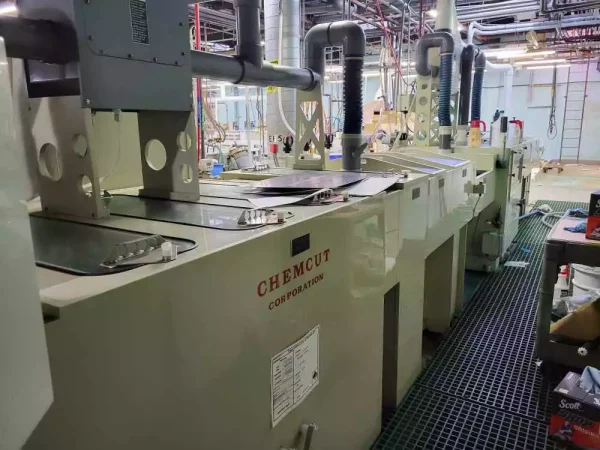

• Chemcut XLI-30 Resist Strip/Alkaline Etch Wet Processing System – Year 2022

    Contact us for price

    Categories: ,

    Description

    Chemcut XLI-30 Resist Strip/Alkaline Etch Wet Processing System – Year 2022
    SPECIFICATIONS:

    3mil lines(76μ) and spaces with 1oz. copper
    2 mil lines(51μ) and spaces with .5oz. copper
    Temperature: 130° F (54° C)
    Acid normality – 1N
    Specific Gravity: 32 to 36 Be’ (1.28 to1.330)
    Spray Pressure: 30 – 40 psi (2.0 to 2.7 bar)
    Expected etch rate: approx. 1mils/min(25 μ /min)

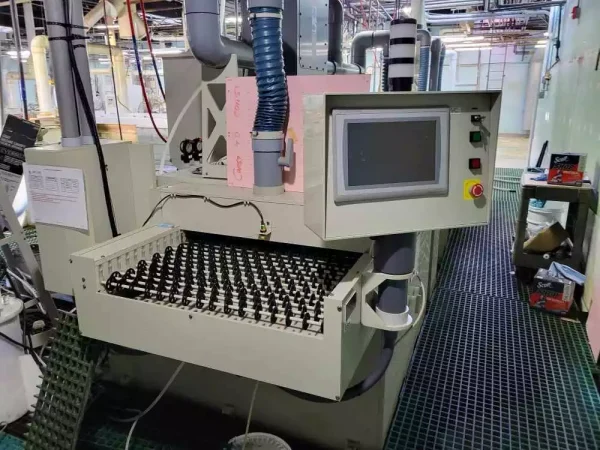

    Station 1 – Load (18 in. 457mm) o VentConnection

    Station 2 – Etch (57 in. 1448mm)
    38in.965mmEffective
    SpecificGravityControlAutoBaume (set point ±0.5 Be to ± 0.006)
    ChemicalDosing
    ORPmonitor
    Pumpout
    1.5gpm(5.68lit./min)conenozzles o Upper/LowerPressureGauges

    Station 3 – Isolation (12 in. 305mm) o Dragoutcontrol(Rollers) o FreshAirinlet

    Station 4 –Rinse (43.3 in. 1100mm) o Three Stage Cascade
    Flowmetertosump/fresh

    Station 5 – Unload (18 in. 457mm)
    System Total Length: 148.3in., 3767mm

    Ultra-Thin conveyor Standard
    75 ft. (22.8m) Wiring Harness
    Adjustable Conveyor Speed Range: 14 -140 ipm
    Product Thickness – 0.004(0.1mm)- 0.250(6.35mm) o Maximum Operating Temperature: 130°F, 54.4°C

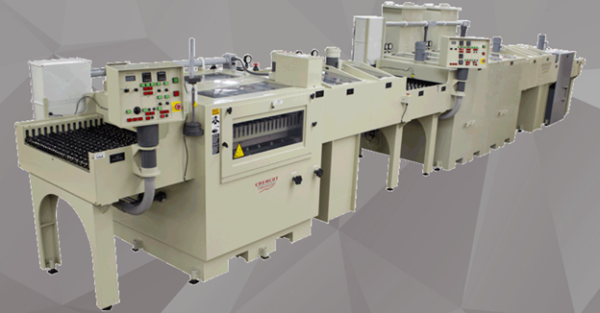

    Manufacturer Catalogue Information about Chemcut XLi :

    At Chemcut, we offer three different product platforms for wet processing equipment.
    We offer
    the 2300 series,
    the Chemcut XLi, and
    the CC8000 model.
    Each one has its strengths, but today we will discuss the XLi model. Here are some great qualities the Chemcut XLi equipment has to offer.
    1. Customizable
    Since the XLi model has a modular structure, you can customize your machine to perform any process you desire. With modular construction, adding or moving modules can be done easily.

    2. Adaptable
    Chemcut’s XLi is suitable for many tasks. Whichever your industry or company size, the XLi will be a good fit. Whether you need to use harsh chemistries, transport thin material, or operate reel-to-reel, the XLi can be designed to suit your needs.

    3. Suitable for Large Production
    In the XLi, you can get features that allow you to process more items in a smaller timeframe. With the XLi, you can get conveyor widths up to 60 inches allowing you to get more effective conveyor space, and you can get larger etch chambers so you can run your conveyor at a higher speed without any changes in things like etch depth or develop time.
