Chevalier FVL-1600VTC+C – Year 2015

Contact us for price

Categories: ,

Description

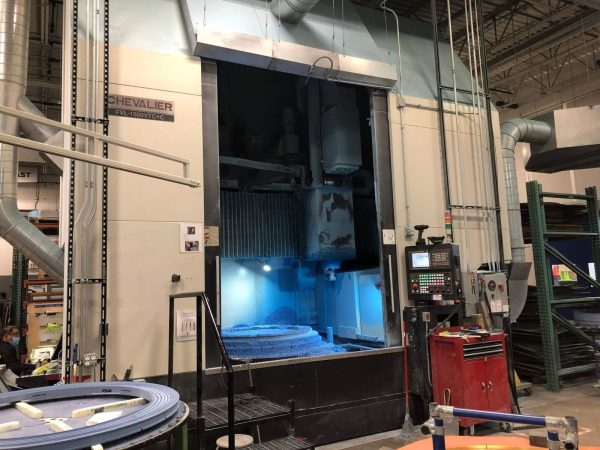

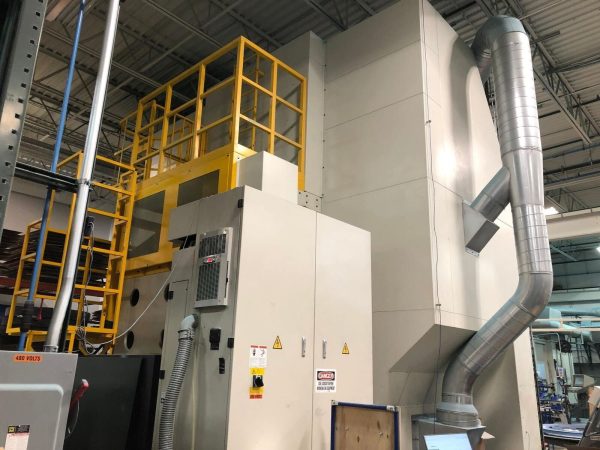

Chevalier FVL-1600VTC+C Vertical Turning Lathe Live Tooling Machine

Table Diameter: 63″
Max Swing/Cutting Dia: 78.7″
Max Turning Height: 53″
Max Table Load: 22,000 lbs.
Spindle Speed: 25-2500RPM
Z Axis Stroke: 35.4″
X Axis Stroke: 45.7″
W Axis Stroke: 31.4″
Z Axis Rotation Speed: 3.33RPM
Table Motor: Up to 75kW (100 HP)
C Axis Cutting Feedrate: 0-1200 degrees/min
Box Way Structure
Table Size: Up to 1998.9mm (78.7″)

Equipped With:

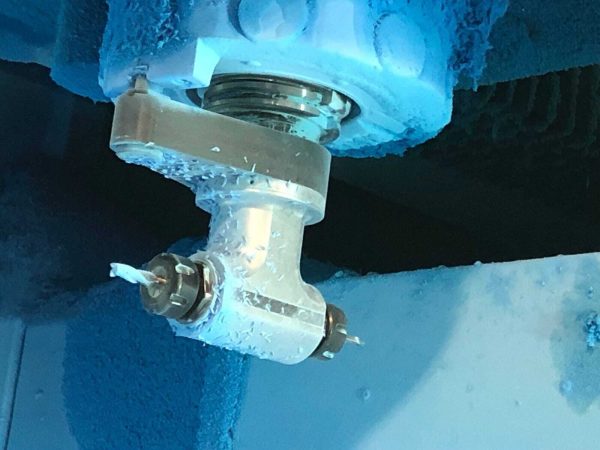

Live Tooling with C-Axis
Chip Conveyor
48 Tool Stations
Probe
Fanuc Control Option- Helical/Circular Threading
Fanuc 0i-TD Control
16 Carousel – VTC+C Series
X/Z-Rapid: 10 m/min (393ipm)

Chevalier FVL-1600VTC+C Catalogue information

ITEM Description S.A.E. Metric
Control Fanuc 0i-T – –
Capacity Max. swing diameter 78.7” 2,000 mm
Max. cutting diameter 78.7” 2,000 mm
Max. turning height 51.6” 1,310 mm
Max. torque 19,030 Nm –
Max. table load 22,000 lbs. 10,000 kg
Table Table diameter 63.0” 1,600 mm
Speed range High: 91 ~ 250 rpm / Low: 1 ~ 90 rpm –
Height from table to ground 35.6” 905 mm
Machining spindle Spindle speed 25 ~ 2,500 rpm –
Spindle taper ISO 7/24 No.50 –
Distance from spindle nose to table surface 60.2″ 1,530 mm
Travel X-travel -33.1” , +45.7” -840 mm , +1,160 mm
Z-travel 35.4” 900 mm
W-beam travel 31.5” 800 mm
C Axis Min. index angle 0.001° –
Rotation speed 3.3 rpm –
Feed rates X-, Z-axis rapid traverse 393 ipm 10 m/min
Cutting feed (C) 0 ~ 1,200 deg./min –
W-axis beam rapid traverse 28 ipm 720 mm/min
Automatic tool changer Tool shank BT50 –
Pull stud JMBTA standard 45° –
Tool changer system Disk type –
Max. tool diameter ø11” (full cutter state) Ø280 mm (full cutter state)
Max. tool length 19.7” 500 mm
Tool change time (C-C) 30 sec. –
Machine dimensions Floor space (W x D x H) 284.3” x 248.0” x 226.4” 7,220 x 6,300 x 5,750 mm
Net weight 70,500 lbs. 32,000 kg
