Description
CIMAN MIZAK 6.7 – Year 2000
CNC aluminum profile, sandwich panels machining center
| Axis X | 7000 mm |
| Axis Y | 1100 mm |
| Axis Z | 500 mm |
| Rotary table (4th axis) | no |
| CIMAN MIZAK 6.7 | |
| Spindle taper | |
| Max. spindle speed | 24000 rpm |
| Y.O.M. 2000 | |
| Length x width x height | 8800.0 × 2530.0 × 2150.0 |
| Weight | 2000 kg |

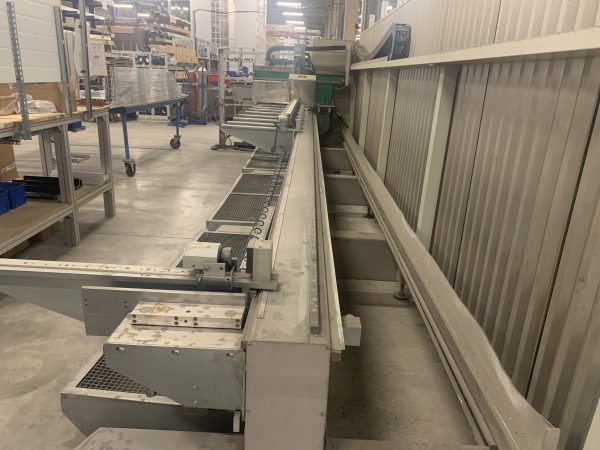

CIMAN machining center
Works perfectly, we sell it because we no longer need it
Description:
– Brand: CIMAN
– Model: MIZAK 6.7
– Weight of the machining center: about 2000 kg
– Dimensions of the machining center: Lg = 8800 mm x width = 2530 mm x Ht = 2150 mm
– Safety cells against crossing in the machining area
– Year of production of the center: 2000
– SHX software (ECS electronics)
– ECS 1400D CNC control console
– 3 axes: X, Y and Z

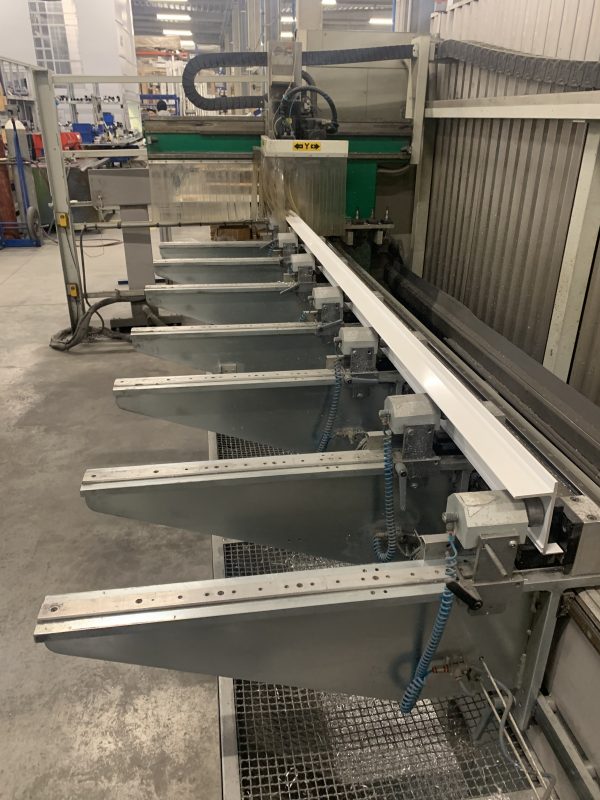

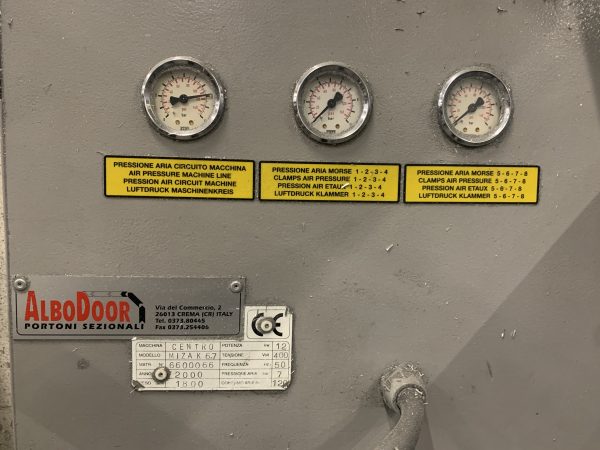

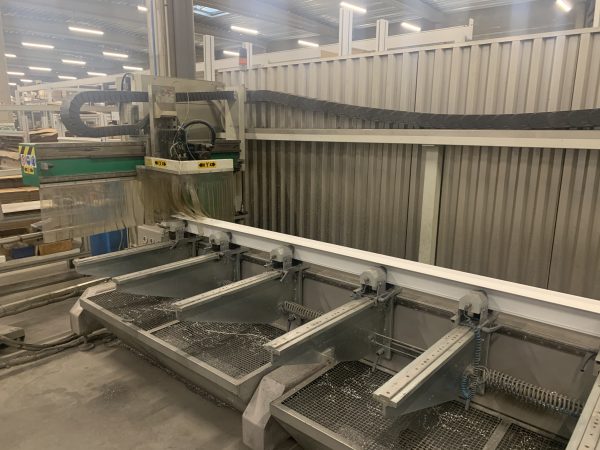

– 8 pneumatic vices manually adjustable on X, Y and Z axis – Vise length: 885 mm
– Maximum dimensions of the profile to be machined => lg: 650 x Ht: 300 x Lg: 6700 mm
– Maximum dimensions of the axes: X = 7000 mm, Y = 1100 mm, Z = 500 mm
– Possible materials to be machined: aluminum profile, sandwich panels or others
– 4 tool holders with ER16 collets provided

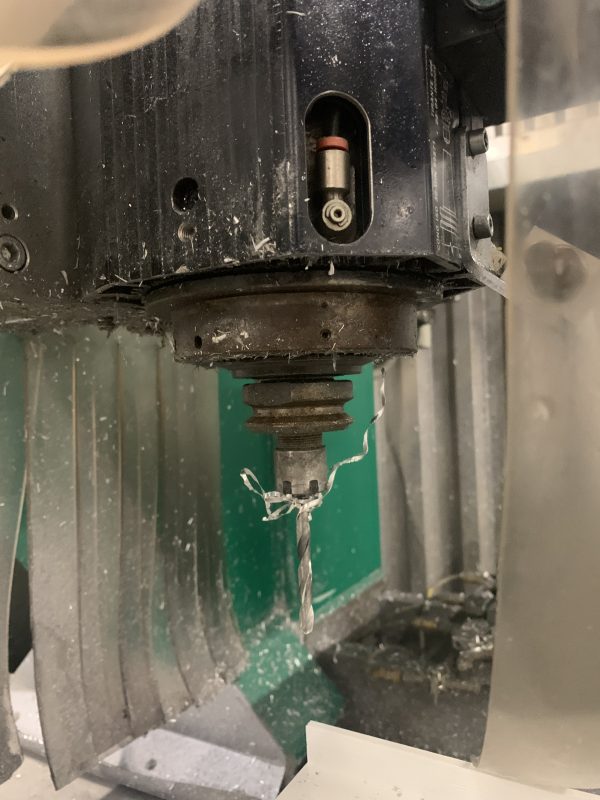

– HSD motor spindle
– Max spindle speed: 24000 rpm
– Spindle motor capacity: 5.5 kW
– User manual + Electrical diagrams + Software installation CD included
