Description

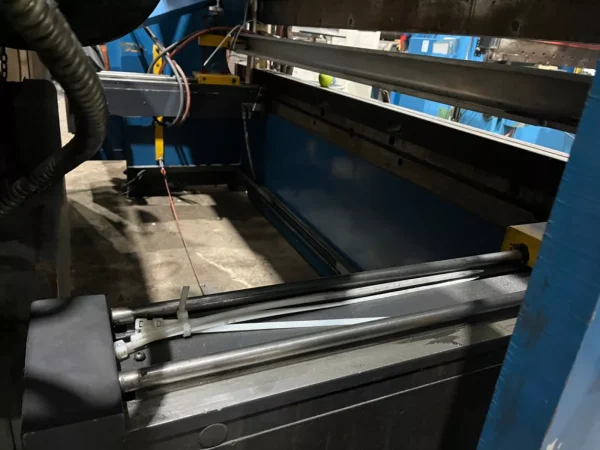

Cincinnati 90CBII CNC Press Brake 90 Ton
Capacity 90 TONS
Overall Length of Bed & Ram 12’
Distance Between Housings ` 10’6 3/4”
Stroke 14” (6” Extended)
Open Height 22”
Closed Height 7”
Throat Clearance 7”
Speeds
Approach 260 Inch Per Minute
Form 10-20-80 Inch Per Minute
Return 280 Inch Per Minute
Width at Top of Bed 3 ½”
Main Motor Horsepower 15
EQUIPPED WITH
Cincinnati PC Touchscreen Control
Cincinnati CNC 2 Axis Back Gauge (X & Manual R)
Link Black Max Safety Curtains
Transducer Positioned Feedback
Narrow Filler Block
Safety Curtains Rear Guarding
Electric Foot Switch
Pedestal Palm Button Station
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders
Approximate Overall Weight 18500 Lbs
Approximate Overall Dimensions 12’6.5” L X 50”FB X 122 H
