Cincinnati Milacron FTLM
Flat Tape Layer Machine 7-Axis Gantry Type
Under power
Cincinnati FTLM
Machining Centers, Gantry (incld. Bridge & Double Column)
Brand: Cincinnati
Model: FTLM
Description: Cincinnati FTLM 7-Axis Tape Laying Machine; 648″ x 200″ Work Surface, 27-63″ Work Height. 36″ Z axis. Use in aircraft skins.

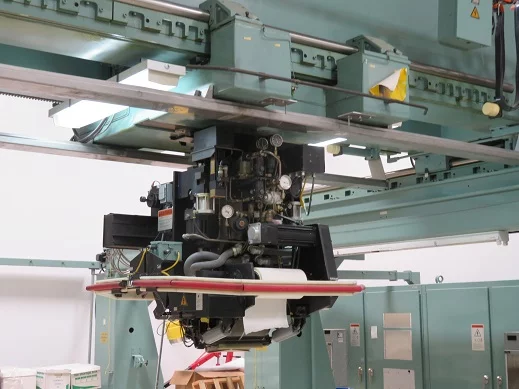

Cincinnati Milacron 7-Axis Gantry Type Flat Tape Layer Machine
Specifications:
Overall Dimensions: 67′ x 40′ x 22′
Work Surface: 54′ L x 200″ W
Work Height: 27 – 63″
Travels:
X-Axis: 648″
Y-Axis: 200″ (Restricted)
Z-Axis: 36″
C-Axis: +/- 190o degrees
Cutter Angle (D-Axis): +1o to +181o
Cutter Travel (V-Axis): 14.25″ (6″ or 12″ Wide Tape)
U-Axis: Continuous
Z2 Tracking: +/- 1.0″
Feed Rates:
X/Y-Axes: 1800 IPM
Z-Axis: 600 IPM
C-Axis: 9000 DPM
D-Axis: 10800 DPM
V-Axis: 1200 IPM
U-Axis (Feed Reel): 1800 IPM
Z2 Tracking: 150 IPM
Cutoff Length – Composite Tape:
Cutter No. 1: 22.6″
Max Velocity Step:
X, X’, Y, Z, V: 30 IPM
C and D: 100 Deg/Min
Cincinnati Milacron 7-Axis Gantry Type Tape Laying Machine has 9 axes of fully programmable motion.
CNC Axis motion are X, Y, Z, C, D, and V-Axes.
In tracking Mode Z-Axis motion is not programmed;
its motion is controlled by sensors that follow the layup surface.
The 7th axis, U, controls tape web position
It is used for Aerospace Specific Equipment
