Description

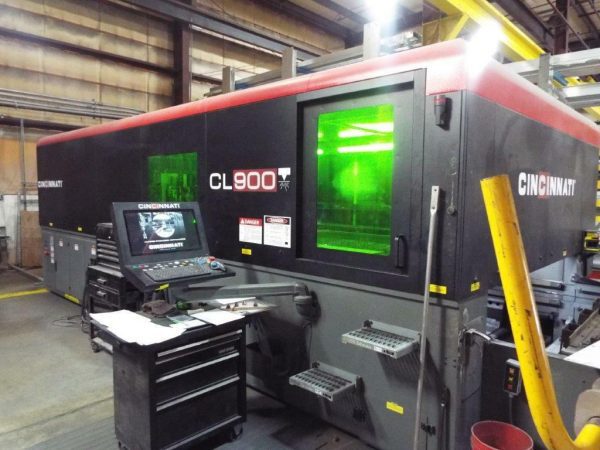

CINNCINNATI CL960 – Year 2018
CNC Fiber Laser Machine
SPECIFICATIONS:
LASER TYPE: FIBER
MAXIMUM LASER OUTPUT: 6000 WATTS
MAXIMUM SHEET SIZE: 78.73″ x 157.5″ (2M x 4M)
ABSOLUTE POSITIONING (X AND Y AXIS): (+/-) 0.001″
REPEATABILITY: (X AND Y AXIS): 0.001″
RAPID TRAVERSE RATE (SIMULTANEOUS): 12,020 IPM
ELECTRICAL: 460/3/60
NUMBER OF PALLETS: 2
DIMENSIONS: 468.2″ (L) x 143.2″ (W) x 96″ (H)
WEIGHT: 37,400
EQUIPPED WITH:
CINCINNATI WINDOWS BASED CONTROL
6000 WATT SOLID STATE FIBER ENGINE
AUTOFOCUS, NON-CONTACT HEAD
BREAKAWAY NOZZLE ASSEMBLY
AUTOMATIC NOZZLE CHANGER

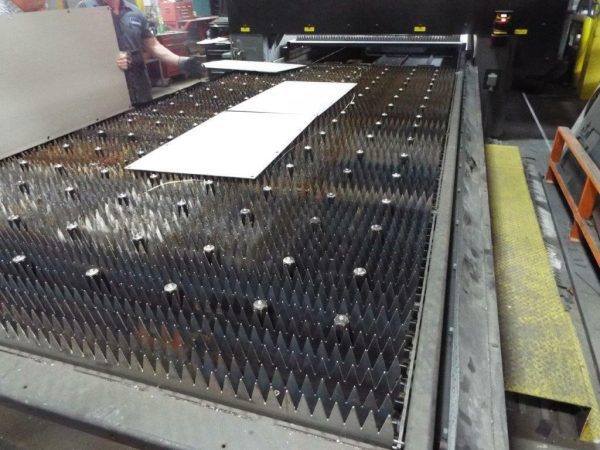

BALL TRANSFER TABLE
(X AND Y AXIS) LINEAR DRIVES
EDGE OF SHEET DETECTION
CI HEIGHT SENSING SYSTEM
DUST COLLECTOR
