Description

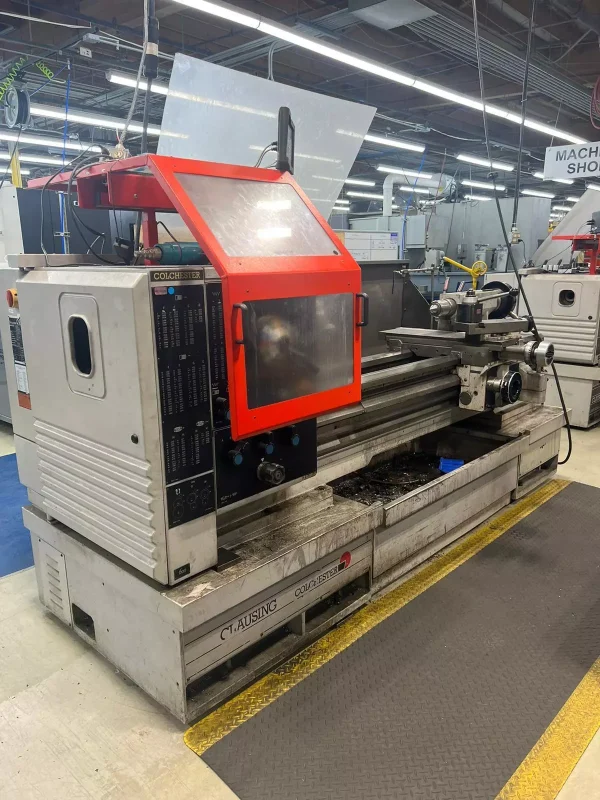

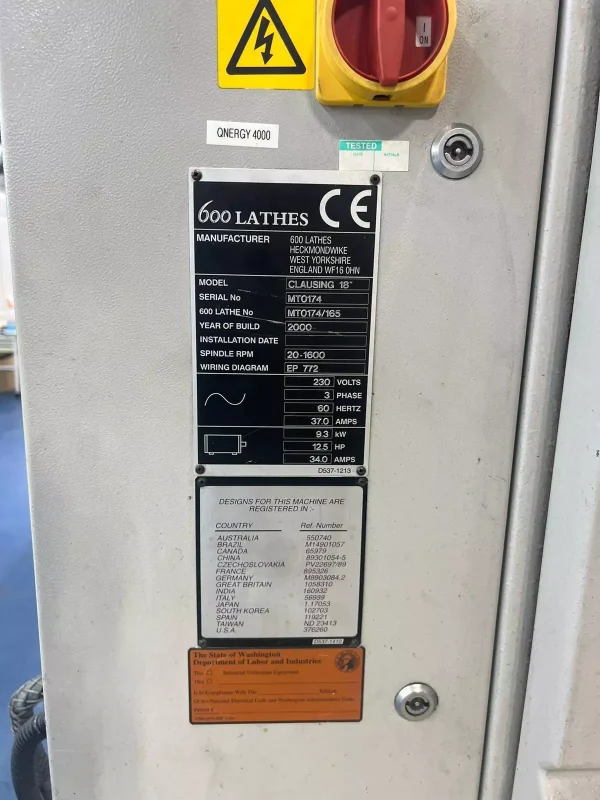

CLAUSING COLCHESTER 18 Series 600 Engine Lathe – Year 2000
Brand: CLAUSING
Model: COLCHESTER 18 SERIES 600
Year: 2000
Swing: 18.1″
Spindle Bore: 3″
Swing Over Cross Slide: 10.6″
SPEC SHEET:
CENTERS
Height: 9.0″
Distance Between: 60″
Floor to Centre: 44″
SWING
Over Bed: 18.1″
Over Cross-slide: 10.6″
In gap: 28.7
Width in front of faceplate: 8.5″
SPLINDLE

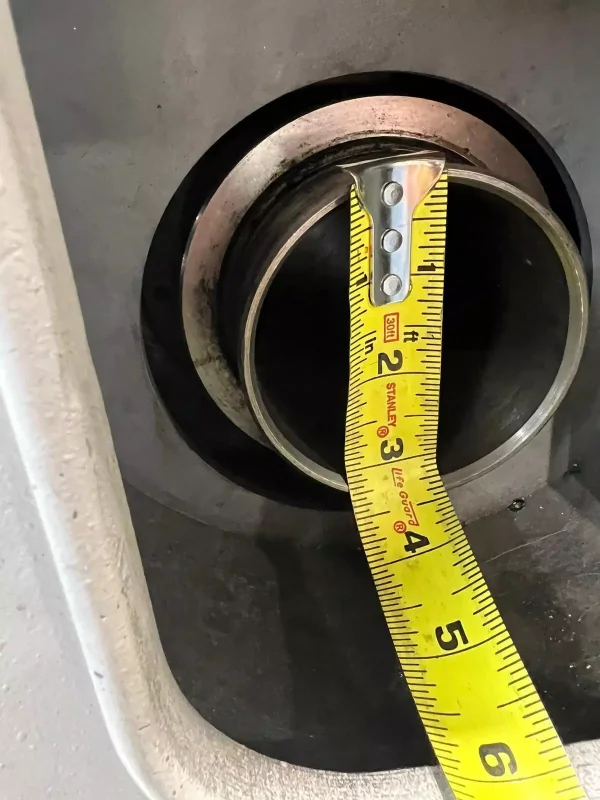

Bored to pass: 3.0″
Nose Type: D1-8″ Camlock
Morse taper: No.5 M.T
MOTOR (main)
9.3kw
BED
Width of ways: 15.7″
Type of Ways: Vee and Flat
TOP SLIDE
Width: 4″
Travel: 7.5″
Travel: 11.8″
CROSS SLIDE
Width: 8″
Length: 33.5″
Travel: 11.8″

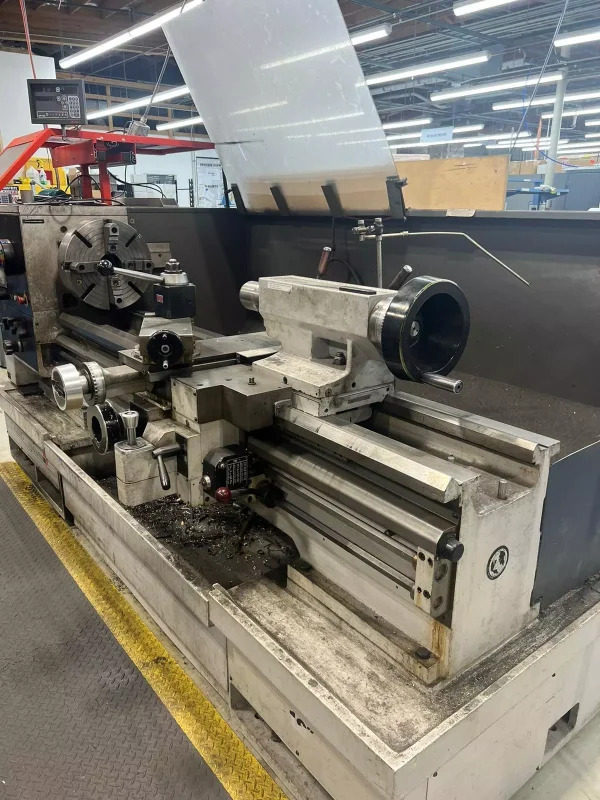

TAILSTOCK
Barrel diameter (nominal): 3.7″
Travel: 5.7″
Morse Taper: No.6 M.T.
Set Over: 0.4″
THREADS
Metric Pitches: 0.2-14mm
Imperial T.P.I: 2-84 tpi
Module Pitches: 0.2-3.5 module
Diametral Pitches 8-72 dp
LEADSCREW
Diameter: 1.5″
Thread: 6mm pitch or 4 TP I
FEEDS
Metric (R10 Series): 0.04-2.8mm/rev
Imperial (R10 Series) 0.0016-0.110 in/rev
Cross Feeds = Approx. half longintudinal values
Dimensions: 125x57x74″
Weight: 6,000 lbs
