Description
CMS ARES-4818-PX5-Z1200 CNC 5-axis High Speed Machining Center – Year 2022
| Year | 2022 |
|---|---|
| Make | CMS |
| Model | ARES-4818-PX5-Z1200 |
| CMS ARES-4818-PX5-Z1200 | CNC 5-axis High Speed Machining Center |
Technical data
| CMS MODELS | AXES STROKES | RAPIDS | |||||||
| (mm) | (°) | (m/min) | (°/min) | ||||||
| X | Y | Z | B | C | X/Y | Z | B | C | |
| 3618 | 3600 | 1800 | 1200 | ±120 | ±270 | 80 | 70 | 9000 | 9000 |
| 4818 | 4800 | 1800 | 1200 | ±120 | ±270 | 80 | 70 | 9000 | 9000 |
| 6018 | 6000 | 1800 | 1200 | ±120 | ±270 | 80 | 70 | 9000 | 9000 |
| 3626 | 3600 | 2600 | 1200 | ±120 | ±270 | 80 | 70 | 9000 | 9000 |
| 4826 | 4800 | 2600 | 1200 | ±120 | ±270 | 80 | 70 | 9000 | 9000 |
| 6026 | 6000 | 2600 | 1200 | ±120 | ±270 | 80 | 70 | 9000 | 900 |
| Number of Axis | 5 |
|---|---|
| Table Width | 191.34″ |
| Table Length | 53.35″ |
| X-Axis | 188.98″ |
| Y-Axis | 70.87″ |
| Z-Axis | 47.24″ |
| C-Axis Rotation | +/- 270° |
| B-Axis Head Inclination +/- | -120° |

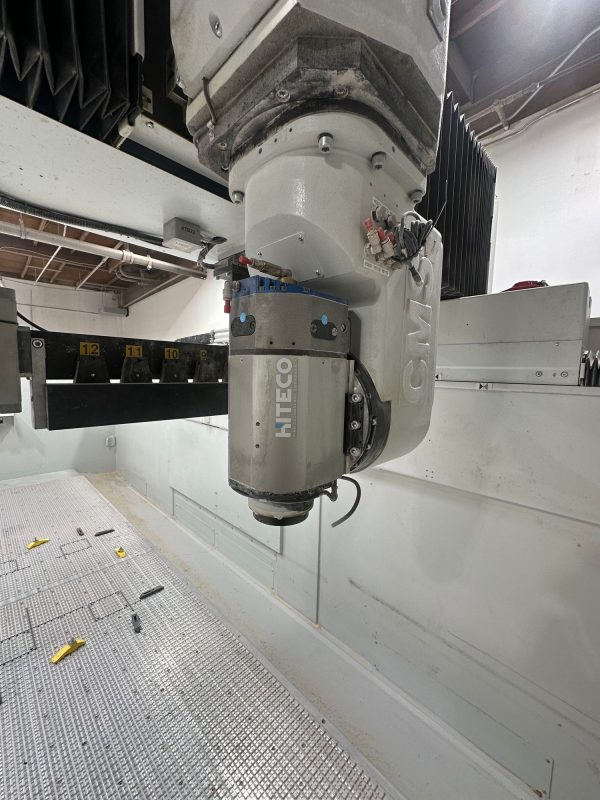

| Spindel Mfg | Hiteco |
| Spindle Speed | 10,600 RPM |
| Spindle Motor | 19.8 Kw/26.5 HP |
| Tool Changer | (12) Position ATC |
| Spindle Taper | HSK-63A |
| Control | Fanuc 31i-B5 |
FEATURES
| 2 x Vacuum Pumps | 3D Cutter Compensation |
| CPU Card B2 DRAM 128 MB/ High-Speed CPU | Intel Celeron E3400 2.6 GHz Processor |
| Multi-Part Program Editing | Operating Windows 10-64 Bit |
| Removable Central Shield for Tandem Cycle | AI Contour Control II |
| Helical Interpolation | Scaling |
| Coordinate System Rotation | High Speed Processing |

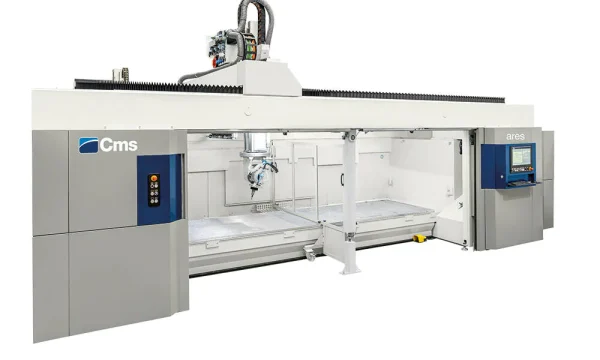

CMS ARES
5-axis high speed machining centers
Integrated machining center for vertical milling, ideal for composite materials, aluminum, light alloys and metals processing. The advanced design of its structures and the result of CMS’s continuous investments in R&D with the sophisticated technological solutions adopted, provide rigidity and precision over time, and exceptional movement dynamics. These features guarantee quality finishing levels, unparalleled accuracy and a high productivity level.
Very large working areas for maximum productivity freedom, wide range of electrospindles, fully designed and manufactured within the SCM Group.
Wide configurability of the working areas (single zone or pendular cycle).
Precision suited to the most demanding applications (aerospace, motor sports, etc.)
CMS Adaptive Technology, function integrated into the control that allows the operator to achieve maximum removal parameters of material on a specific surface by simply calling up the relevant mapping. CMS Adaptive Technology significantly reduces cycle times on complex surfaces without compromising the finishing quality and precisions.
PRODUCE MORE AND BETTER: TODAY AND TOMORROW
The advanced design of the structure, a result of CMS’ research centre, and the technical solutions adopted guarantee rigidity and precision over time so that the high finish and accuracy of the workpieces remains a constant feature of your production over the years. The accuracy of ARES CMS boasts the industry’s best-in-class performance in its category: +23% machining precision and accuracy.
LIMITLESS CONFIGURABILITY
Ares has large-sized working areas to offer maximum space availability and new production opportunities. The wide configurability of the working areas with the possibility of alternate machining and the availability of versions with extractable tables (APC) and rotary tables (TR) makes Ares the solution that can really transform every company.
THE POWER OF INNOVATION
All the electrospindles are fully designed and constructed within the group and are the result of 30 years of experience and ongoing innovation. The wide range allows our Customers to always choose the electrospindle that provides the ideal torque, power and speed for their own machining requirements, thus enhancing the productivity of their machining center. Besides, it is possible to match the milling units with ultrasonic cutting units by combining the two technologies, obtaining exceptional synergy in the machining of core materials.
CLEANING AND SAFETY: EFFICIENCY MEANS SUCCESS
Designed for maximum efficiency in dust management, it is equipped with the most advanced retention and suction systems to guarantee cleanliness of the working environment, safety for operators and total reliability, which are the indispensable prerequisites for achieving the highest levels of production efficiency.
