Description
CMZ TD35Y – Year 2020

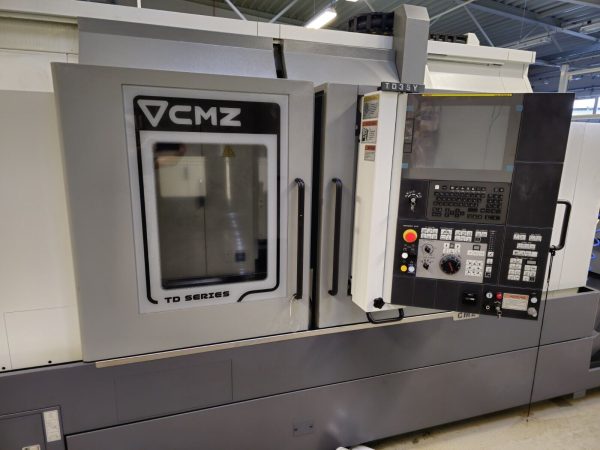

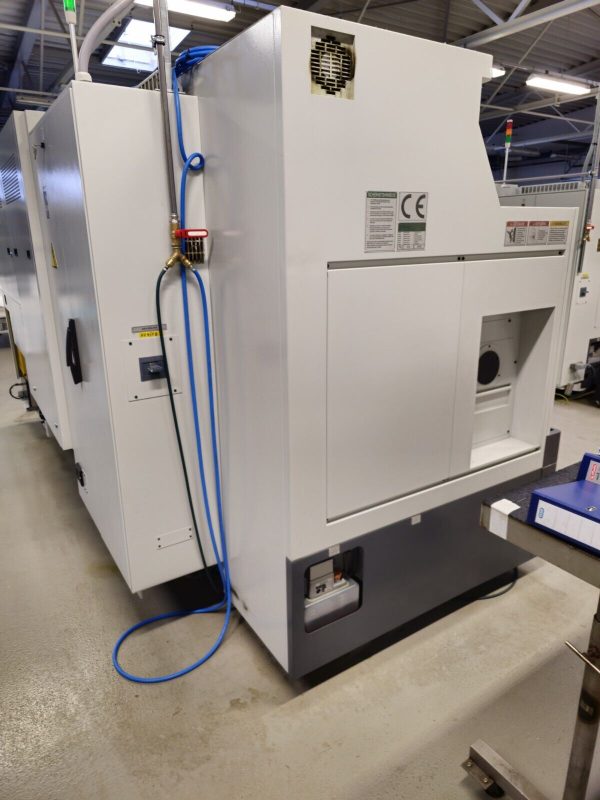

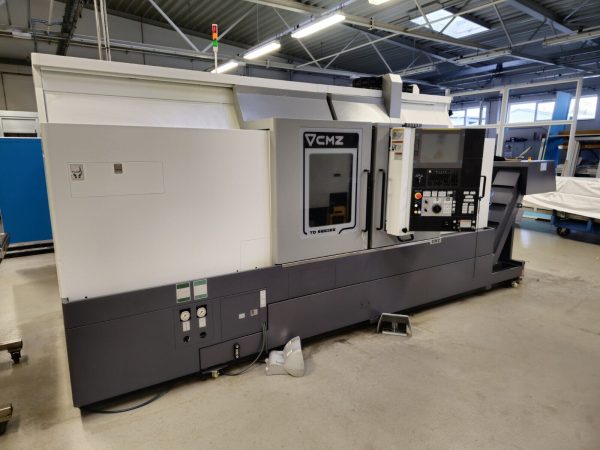

For sale here is a CMZ TD355Y. The machine was built in 2020/2021 and has just 3527 operating hours. Production ran in one shift.
The machine can be viewed with pleasure.
Price suggestions welcome.
The invoice is issued with VAT.
Information about the machine:
default

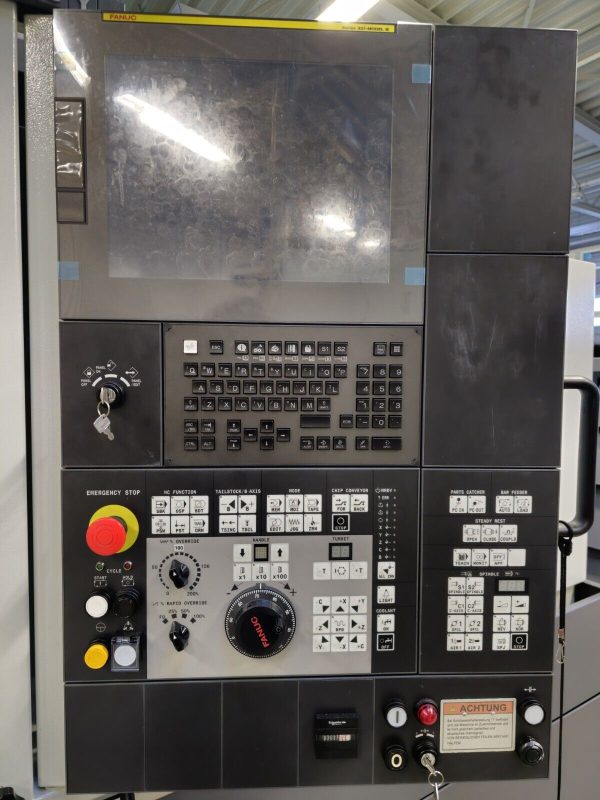

3-axis lathe with Fanuc 32iTB iHMI control and driven tools; 16 [12]- Station turret for TL/TC tools: 12,000 rpm, 13kW and 105 Nm;
Y-axis, travel 140mm (+80/-60mm);
Main spindle drive 48/39 kW, 3,000 rpm; Spindle mount: A2-11;
Torque 1500/1273 (max./S6 40%) Nm; Bar capacity spindle 1: 95 mm;
Main spindle: Oil-cooled main spindle unit;
Foot pedal for opening and closing the chuck; load indicator for main spindle motor; safety switch for status control; chuck open/closed;
Full C – axis on main and counter spindle (TD- 15/20/25/35-M,Y,TM,TY,MS &YS);
Full C axis with positioning and clamping every 0.001 degrees;
Direct encoder system for maximum precision;
Hydraulic disc brake for C axis; Switching from spindle to C-axis mode without approaching the zero point; Tool turret: 16/12 position servo turret with hydraulic clutch, turret disk locking via triple sprocket, 230mm diameter Changeover time 0.15 seconds (station to station) by switching without lifting the turret disk; Miscellaneous:
Electronic hand wheel, parts counter Complete hydraulic equipment and installation Auto lubrication system. Safety monitoring against malfunctions in the lubricating system Extra pipeline for draining used lubricating oil. As a result, no contamination of the coolant; Complete installation of coolant circuit with electrics, pump and tank;

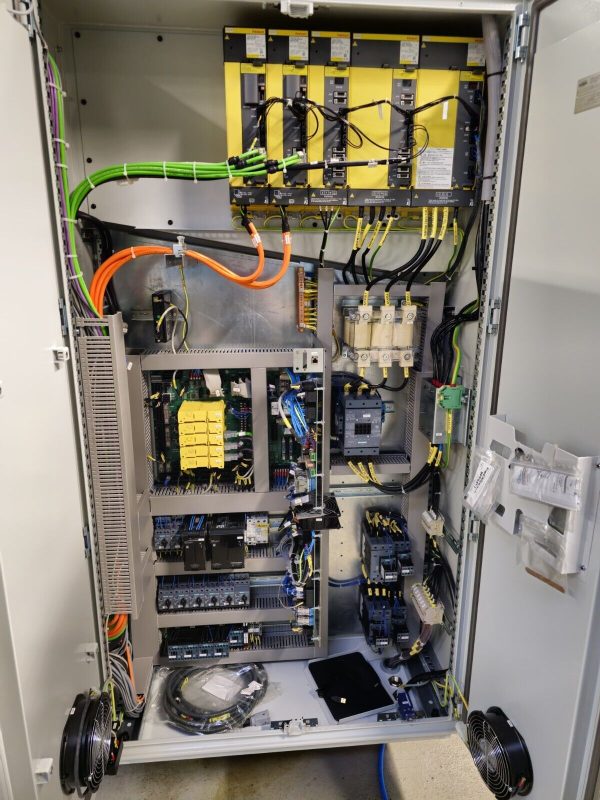

Easy access for cleaning the coolant reservoir; Complete electrical installation at 400 volts 50 Hz; Heat exchanger on the switch cabinet – therefore no direct connection between the switch cabinet and the outside air; work area light, bar feeder interface; Transport and lift kit including 3 Kevlar ropes; Operation and programming manuals; electrical wiring diagrams and maintenance manual;
Accesories
G codes type A in Fanuc control
Tailstock with automatic-hydraulic lock on the bed
Tailstock quill d=110×150 mm (travel) with integrated quill bearing and taper MK4
Double foot pedal for quill movement

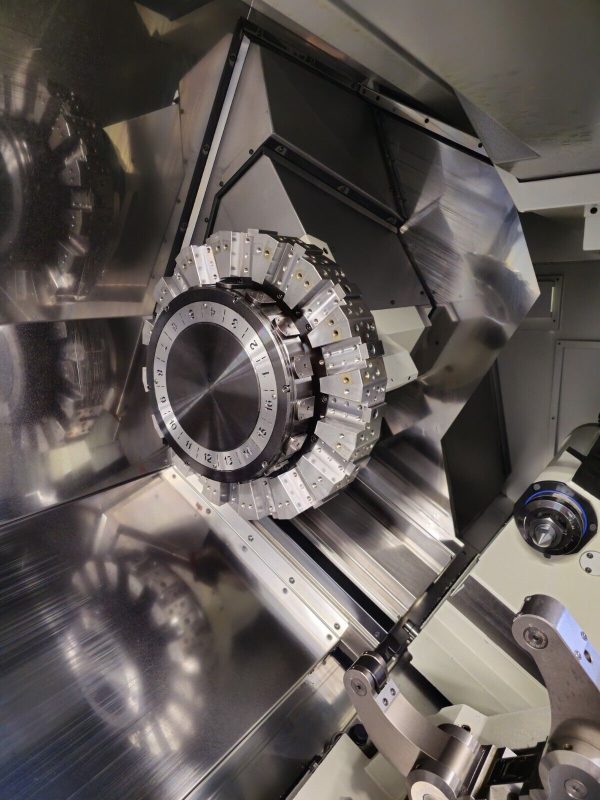

16 position servo tool turret
Hydraulic hollow clamping cylinder (standard) in main spindle (TD35 Autoblok VNK 225-95)
LPS system in the main spindle (hydraulic cylinder end position monitoring)

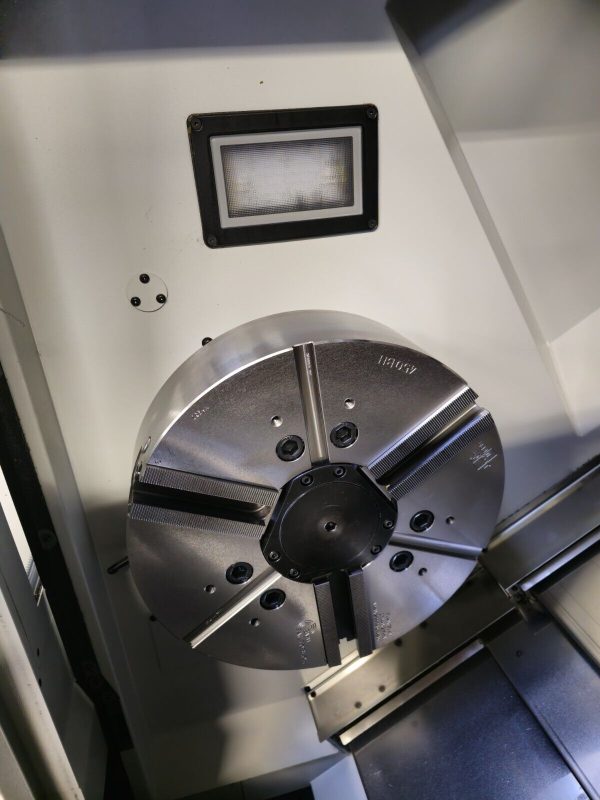

BHD 450 3-jaw power chuck for main spindle with a set of soft top jaws
tool presetter
Lateral chip conveyor for Z=1350 bed (standard version)
High-pressure coolant pump with three programmable pressure levels (35, 15 & 6 bar) including a replaceable 75 mm filter
coolant washer nozzle
machine status light
Tool life monitoring (tool life management)
Tool load monitor
Manual bezel slide for fixed bezels. Mounted on tailstock guideway, incl. electrical, hydraulic installation and connections for coolant supply to steady rests
Steady rest carrier on right side of carriage 1
Self-centering steady rest SMW-Autoblok Model SLUX 3.2, working diameter 50 to 200 mm, incl. steady rest carrier for mounting on manual or servo-controlled steady rest slide (Base 1, LH)
Coolant supply through bezel
Automatic bezel lubrication system
Sealing air on bezel
Preparation for extraction, connection flange d=150
Optional tool holder
4 x holders for turning tools short / collision-free
2 x holders for planing tools
3 x holders for drilling tools d=40 long
2 x reducing sleeves d=12/40
1 x reducing sleeve d=16/40
2 x reducing sleeves d=20/40
1 x reducing sleeve d=25/40
2 x reducing sleeves d=32/40
1 x holder for drilling tools d=60
1 x reducing sleeve d=50/60
3 x axial holder for AGW with internal coolant supply (main spindle) (Max.12,000rpm)
3 x radial holder for AGW with internal coolant supply (max. 12,000 rpm)
1 x driven radial tool holder, with universal shank d=22 (max. 4000 rpm)
1 set of additional soft top jaws for BHD-400 and BHD-450 (3 pcs.)
1 set of hard, reversible top jaws for BHD-400 & BHD-450 and BHD-500 (3 pieces)
Transport ex works, here the transfer of risk to the customer takes place.
Customer pays for transport, delivery and installation at the customer’s site
Due to a lack of skilled workers, illness and the lack of a successor, production was stopped on March 31, 2023. Some of the machines have already been sold and now the rest.
