Description

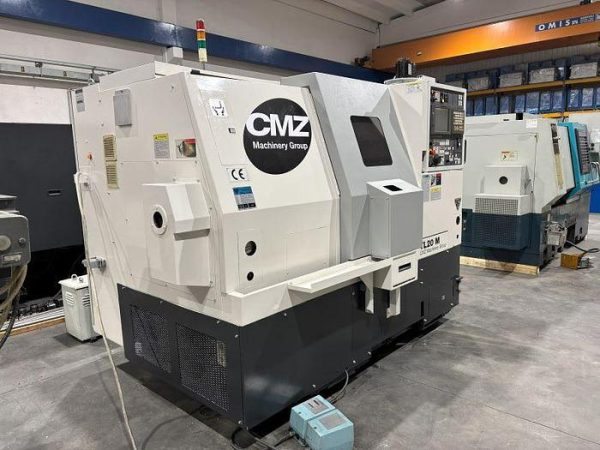

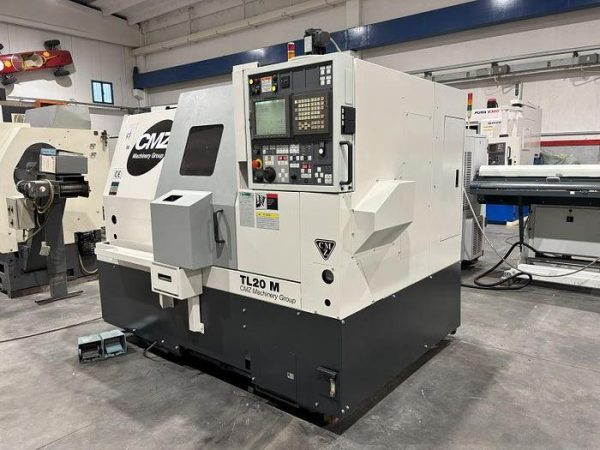

CMZ TL 20 M CNC Turning Center – Year 2001
Manufacturer: CMZ
Model: TL 20 M
Year of construction: 2001
CNC GE FANUC Series 21i – T
MAXIMUM WORKABLE DIAMETER: 430 mm
DISTANCE BETWEEN TIPS: 730 mm
SPINDLE SPEED: 50 – 4,000 RPM.
POWER: 7.5 / 11 KW
SELF-CENTERING DIAMETER: 220 mm
BAR PASSAGE: 67 mm
TURRET: 12 POSITIONS (ALL MOTORIZABLE)
N° 4 MOTORIZED INCLUDED (2 AXIAL + 2 RADIAL)
Travel :
X : 240 mm
Z : 640 mm
CHIPS CONVEYOR
COMPLETE WITH ALL DOCUMENTATION
YEAR OF FIRST INSTALLATION: 2001
WEIGHT: 5,500 KG.
