Description

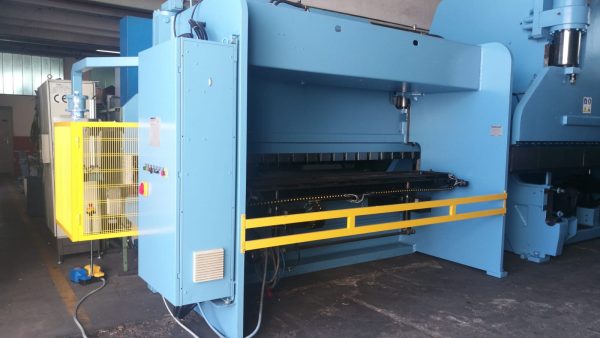

COLGAR PIS 2032/41 FAC – Year 1994
CNC Press Brake 200 Ton
| Strength | 200 T |
| Folding length | 4100 mm |
| Distance between uprights | 3200 mm |
| CNC | Step Automation SA17 videografico a colori |
| Throat | 350 mm |
| Vertical stroke | 200 mm |
| Working speed | 80 mm/s |
| Axis number | 6 |
| Motor power | 15 kW |
| Hole | No |
| COLGAR PIS 2032/41 FAC | |
| Length x width x height | 5150.0 × 2400.0 × 3000.0 |
| Weight | 14000 kg |
Press brake from 1994 that worked until 2021 and was regenerated in 2022.
Synchronized hydraulics MODEL PIS 2032/41 FAC, useful bending length 4.100 mm, adjustable working force 200 Ton, maximum return force 32 tons, recess in the uprights 350 mm, passage between the uprights 3.200 mm, adjustable stroke 200 mm,
automatic flexion compensation,
– REGENERATION 2022 – includes:

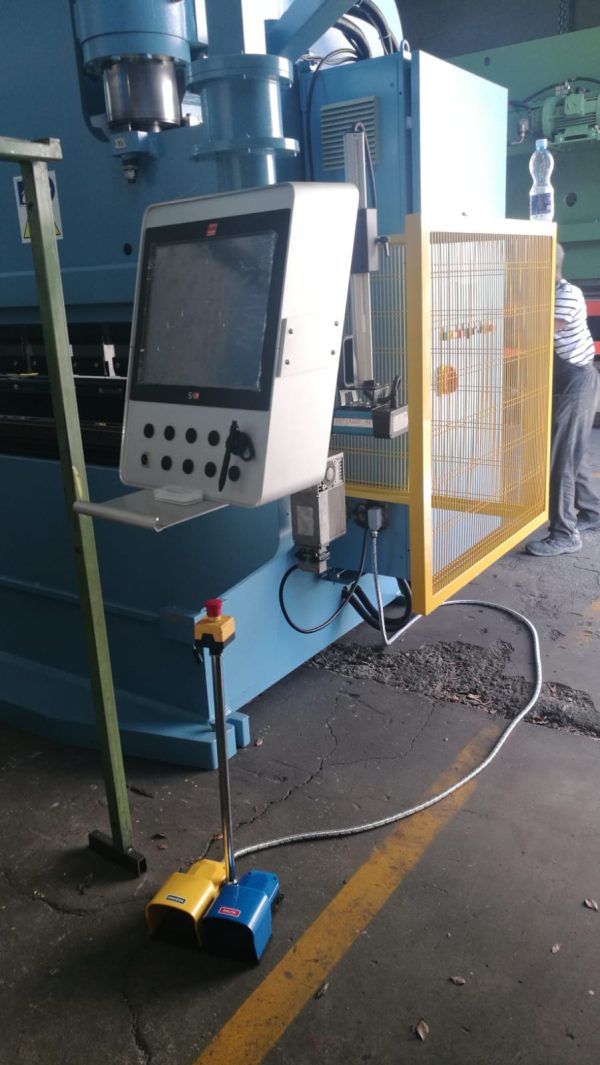

– CNC 6 axis STEP AUTOMATION SA17 color touch screen videographic complete with hanging hood
– Adjustment of the electrical system
– Machining of the upper blade holder for Schiavi type attachment
– Supply of n. 20 Intermediates complete with double bracket
– Reworking of the die holder bench boring machine
– Restoration of accident prevention safety devices, front Laser Beam photocells on the bending line, mechanical guards on the recesses and on the back.
– Replacement of oil, filters, CNC and pedal board
– Cleaning, disassembly and greasing of the bending table
– CNC parameterization and final testing
– Documentation present
– Guarantee according to UCIMU regulations on the works and materials indicated above.
